8.3.3 Circular connector female (Digital I/O; via add-on board BLX-IO)

With the order reference "BLX-IO", the mvBlueLYNX-X can be extended by additional digital inputs and
outputs.
Pin.
1 VCC_HSD
2 GND
3 IO_8
4 IO_7
5 IO_6
6 IO_5
• Connector (camera side): AlysiumTech, type 61W-21-0106 6 pins or equivalent
• Plug (matching cable plug): AlysiumTech, type 61W-00-0106 6 pins or equivalent

8.3.3.1 Characteristics when used as digital inputs

There are four inputs parallel with the outputs with both
• TTL or
• PLC levels.
This is switchable via software.
V
in
I
in
Propagation delay
Switching threshold 2V @TTL / 10V @PLC
You can use the inputs to read the outputs.
34
mvBlueLYNX-X Technical Manual

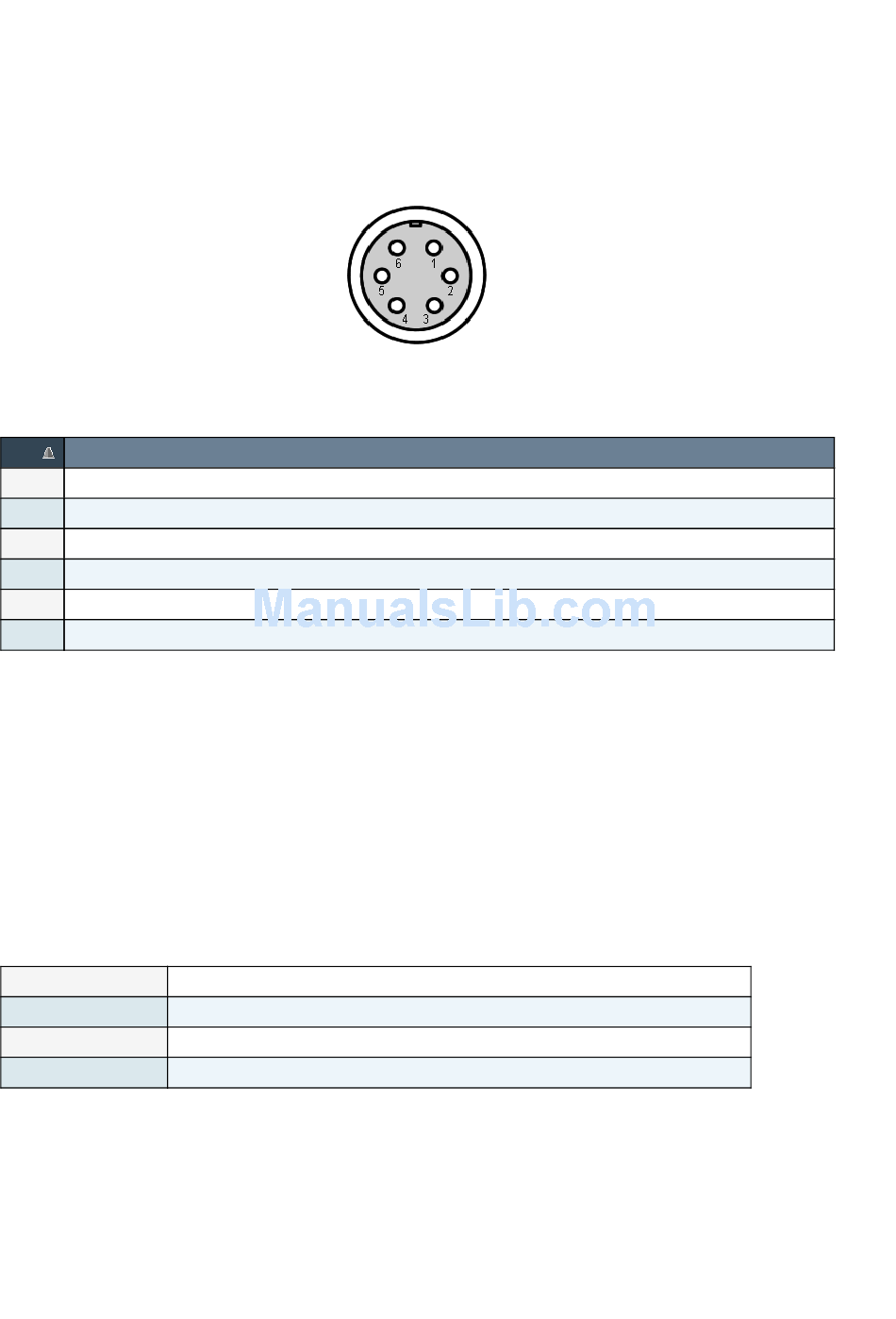

Figure 16: AlysiumTech 6-pin (female; top view), Digital I/O
5V .. 24V (30V max. complete)
< 1mA
<= 1µs (+ optional 10µs debouncing logic / FPGA)
22 April 2016 Version - 1.49
