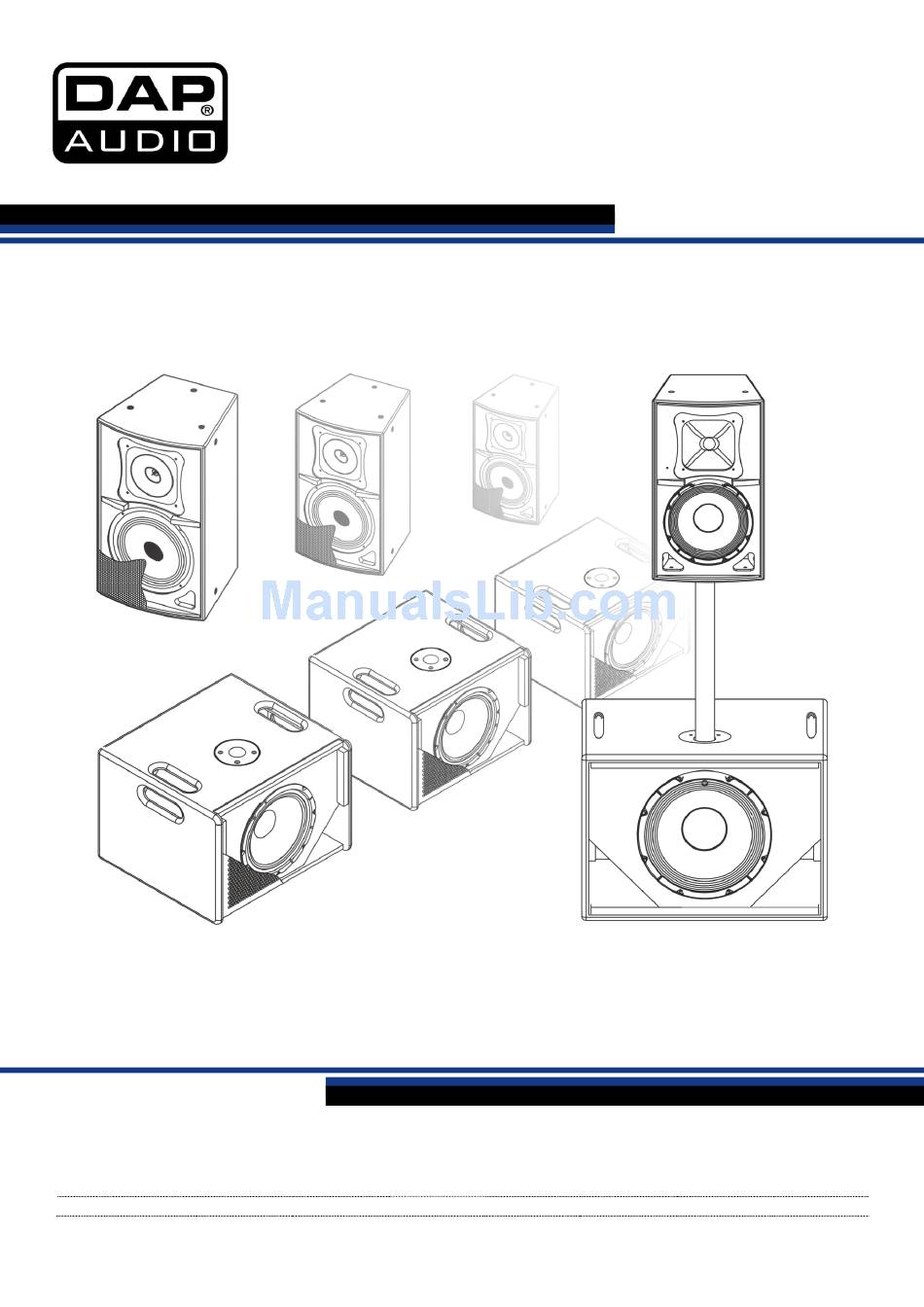

- Page 1 MANUAL ENGLISH DRX Active Series Productcode: D3634 D3635 D3636 D3637 D3640 D3641 D3642 Productname: DRX-8A DRX-10A DRX-12A DRX-15A DRX-10BA DRX-12BA DRX-15BA Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Features ....................................5 Accessories ..................................5 Rear Panel Description ..............................6 DRX-1OBA/12BA/15BA SUB............................6 DRX-8A/10A/12A/15A ..............................7 Connection Examples ..............................8 Two Active Subwoofers & Two Active Satellite Speakers ..................8 One Active Subwoofer & Two Active Satellite Speakers ..................9 Two Active Satellite Speakers ...........................10... -
Page 3: Warning
DRX Active Series Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 DRX Active Series Do not connect this device to a dimmer pack. Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output. Do not insert objects into air vents. ...
-
Page 5: Connection With The Mains
DRX Active Series Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER... -
Page 6: Features
DRX Active Series Features These series products include active speaker cabinets and subwoofer. ACTIVE SPEAKERS: 1. DRX-8A 2. DRX-10A 3. DRX-12A 4. DRX-15A SUBWOOFER: 1. DRX-10BA 2. DRX-12BA 3. DRX-15BA These products are design to provide a cost effective high grade solution, and they can be used for all kinds of applications, such as churches, conference center, disco, etc. -
Page 7: Rear Panel Description
DRX Active Series Rear Panel Description DRX-1OBA/12BA/15BA SUB ON-OFF main power switch LINK LEFT/RIGHT ON XLR CONNECTOR Input AC power socket with main fuse SIGNAL/LIMIT, Red LED, indicate ON status POWER, Green LED, indicate ON status VOLUME main power amplifier control BYPASS Switch Select High pass filter or bypass PHASE Switch Reverse the Polarity of SUB OUT Ground Lift Switch... -
Page 8: Drx-8A/10A/12A/15A
DRX Active Series DRX-8A DRX-10A/12A/15A POWER LED INDICATOR GND Switch MIC IN with balanced XLR & TRS for AC Input Voltage Selector Microphone LINE OUT at 0dB on XLR & TRS connector Main Power Switch Signal Limit LED AC Power Inlet with AC Fuse... -
Page 9: Connection Examples
DRX Active Series Connection Examples Two Active Subwoofers & Two Active Satellite Speakers Make your initial connections with all the equipment powered off and ensure that all the main volume controls are turned completely. Connect one side of the signal cable at your audio mixer into OUTPUT LEFT/RIGHT and the other side of the cable into the LINE INPUT of your active subwoofers. -
Page 10: One Active Subwoofer & Two Active Satellite Speakers
DRX Active Series One Active Subwoofer & Two Active Satellite Speakers 1) Make your initial connections with all the equipment powered off and ensure that all the main volume controls are turned completely. 2) Connect one side of the signal cable at your audio mixer into OUTPUT LEFT/RIGHT and the other side of the cable into the LINE INPUT LEFT/RIGHT of your active subwoofer. -
Page 11: Two Active Satellite Speakers
DRX Active Series Two Active Satellite Speakers 1) Make your initial connections with all the equipment powered off and ensure that all the main volume controls are turned completely. 2) Connect one side of the signal cable at your audio mixer into OUTPUT LEFT/RIGHT and the other side of the cable into the LINE INPUT LEFT/RIGHT of your active satellite speakers. -
Page 12: Frequency Response Diagram
DRX Active Series Frequency Response Diagram DRX-10BA/12BA/15BA... -
Page 13: Drx-8A/10A/12A/15A
DRX Active Series DRX-8A/10A/12A/15A... -
Page 14: Connection Cables
DRX Active Series Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 15: Technical Specifications
DRX Active Series Technical Specifications Model Active DRX-10BA Sub System Type 10" Active subwoofer Speaker Cabinet Continuous Power 600W Frequency Response 50Hz-120Hz(- 6dB) SPL (1W1M) 94 dB /121. 8dB Max Transducer Low 10" woofer -2.5" Voice Coil . with ventilation Active Crossover HPF80Hz under analog processor L - R(COMBO/ XLR - F) / L- R Link (2 - XLR - M) -
Page 16: Drx-15Ba Sub
Mounting One metal standard pole-mount Dimension (H x W x D) 450x580x480mm Net weight 22.4 kg/ 49. 41bs Model DRX-8A System Bi-Amp. Continuous power LOW: 150W / HIGH: 25W LOW-input/-5dBu 100Hz, out load 40, THD<O.5% Total harmonic distortion HI-input/-8dBu 15kHz, out load 80, THD<0.5% S/N Ratio LOW: >... -
Page 17: Drx-10A
DRX Active Series Model DRX-10A System Bi-Amp. Continuous power LOW: 170W / HIGH: 25W LOW-input/-5dBu 100Hz, out load 40, THD<0.5% Total harmonic distortion HI-input/-8dBu 15kHz. out load 80, THD<0.5% S/N Ratio LOW: >80dBu / HI: >65dBu Line input Level -5dBu ±1dBu Input Impedance Line 15kΩ... -
Page 18: Drx-15A
DRX Active Series Model DRX-15A System 2-Way Active Vented Speaker Cabinet Continuous power LOW: 220W / HIGH:30 W LOW-input/-3dBu 100Hz, out load 4 Ohms , THD＜0.5% Total harmonic distortion HI-input/-3dBu 15KHz, out load 8Ohms, THD＜0.5% S/N Ratio LOW:＞80dBu / HI:＞70dBu Line input Level -5dBu ±... -
Page 19: Notes
DRX Active Series Notes... - Page 20 ©2013 DAP Audio...
