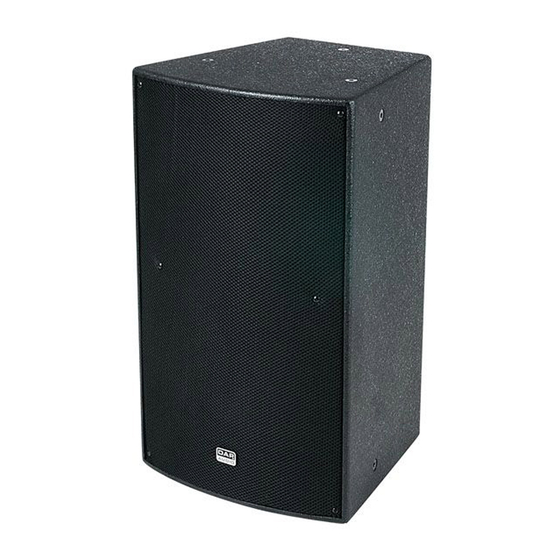

Summary of Contents for DAPAudio DRX-8
- Page 1 MANUAL ENGLISH DRX Passive Series Productcode: D3630 D3631 D3632 D3633 D3643 D3644 D3645 Productname: DRX-8 DRX-10 DRX-12 DRX-15 DRX-10B DRX-12B DRX-15B Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Features ....................................5 Accessories ..................................5 Rear Panel Description ..............................6 DRX-1OB/12B/15B SUB ..............................6 DRX-8/10/12/15 ................................7 Connection Examples ..............................8 Two Passive Subwoofers & Two Passive Satellite Speakers ................... 8 One Passive Subwoofer & Two Passive Satellite Speakers ..................9 Two Passive Satellite Speakers ..........................10... -
Page 3: Warning
DRX Passive Series Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 DRX Passive Series Keep this user’s manual for future consultation. Also remember that the crossover will get a better price on the secondhand market if (as well as being in good condition) it has its original documentation and packaging. ...
-
Page 5: Connection With The Mains
DRX Passive Series Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER... -
Page 6: Features
DRX Passive Series Features These series products include active speaker cabinets and subwoofer. ACTIVE SPEAKERS: 1. DRX-8 2. DRX-10 3. DRX-12 4. DRX-15 SUBWOOFER: 1. DRX-10B 2. DRX-12B 3. DRX-15B These products are design to provide a cost effective high grade solution, and they can be used for all kinds of applications, such as churches, conference center, disco, etc. -
Page 7: Rear Panel Description
DRX Passive Series Rear Panel Description DRX-1OB/12B/15B SUB INPUT: Receive the power coming from an external power amplifier (SPK +1/-1 connected; +2 -2 not connected) THRU: Direct LINK for connecting in parallel a second speaker cabinet (SPK +1/-1 connected; +2 -2 not connected). -
Page 8: Drx-8/10/12/15
DRX Passive Series DRX-8/10/12/15 INPUT: Receive the power coming from an external power amplifier (SPK +1/-1 connected; +2 -2 not connected) THRU: Direct LINK for connecting in parallel a second speaker cabinet (SPK +1/-1 connected; +2 -2 not connected). -
Page 9: Connection Examples
DRX Passive Series Connection Examples Two Passive Subwoofers & Two Passive Satellite Speakers Make your initial connections with all the equipment powered off and ensure that all the main volume controls are turned completely down. Connect one side of the speaker cable to the Output CH 1 / CH 2 to Binding Post of your stereo power amplifier and the other side to the Input socket of your speaker cabinet. -
Page 10: One Passive Subwoofer & Two Passive Satellite Speakers
DRX Passive Series One Passive Subwoofer & Two Passive Satellite Speakers Make your initial connections with all the equipment powered off and ensure that all the main volume controls are turned completely down. Connect one side of the speaker cable to the Output CH 1 / CH 2 to Binding Post of your stereo power amplifier and the other side to the Input socket of your speaker cabinet. -
Page 11: Two Passive Satellite Speakers
DRX Passive Series Two Passive Satellite Speakers Make your initial connections with all the equipment powered off and ensure that all the main volume controls are turned completely down. Connect one side of the speaker cable to the Output CH 1 / CH 2 to Binding Post of your stereo power amplifier and the other side to the Input socket of your speaker cabinet. -
Page 12: Frequency Response Diagram
DRX Passive Series Frequency Response Diagram DRX-10B/12B/15B... -
Page 13: Drx-8/10/12/15
DRX Passive Series DRX-8/10/12/15... -
Page 14: Connection Cables
DRX Passive Series Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 15: Technical Specifications
DRX Passive Series Technical Specifications Model DRX-10B System Type 10" Reflex Subwoofer Continuous Power 250W Peak Power 500W Transducer Low 10" Woofer, 2.5"voice coil, with double ventilation SPL at 1m Max 121dB Impedance 8Ω Frequency Response 55Hz-500Hz (-6dB) Connector 2*Speakon 1+,1- (2+,2- N/C) 15mm plywood cabinet, glued and reinforced, resistant Enclosure Construction black paint;... -
Page 16: Drx-15B
Mounting One metal standard pole-mount Dimensions (H x W x D) 450x 580 x 480mm Net Weight 21.3kg Model DRX-8 System Type 2-Way Vented Passive Speaker cabinet Continuous Power 100 Watts Peak Power 200 Watts Horn Coverage 50°H x 50°V... -
Page 17: Drx-10
DRX Passive Series Model DRX-10 System Type 2-Way Vented Passive Speaker cabinet Continuous Power 120 Watts Peak Power 240 Watts Horn Coverage 50°H x 50°V Speaker Sensitivity (1W.1m) 95 dB SPL ±3dB Max SPL: 118dB at 1m Frequency Response 58Hz~20kHz (- 6dB) Impedance 8Ω... -
Page 18: Drx-15
DRX Passive Series Model DRX-15 System Type 2-Way Vented Passive Speaker cabinet Continuous Power 200 Watts Peak Power 400 Watts Horn Coverage 50°H x 50°V Speaker Sensitivity (1W.1m) 96 dB SPL ±3dB Max SPL: 122dB at 1m Frequency Response 50Hz~20kHz (- 6dB) Impedance 8Ω... -
Page 19: Notes
DRX Passive Series Notes... - Page 20 ©2013 DAP Audio...
