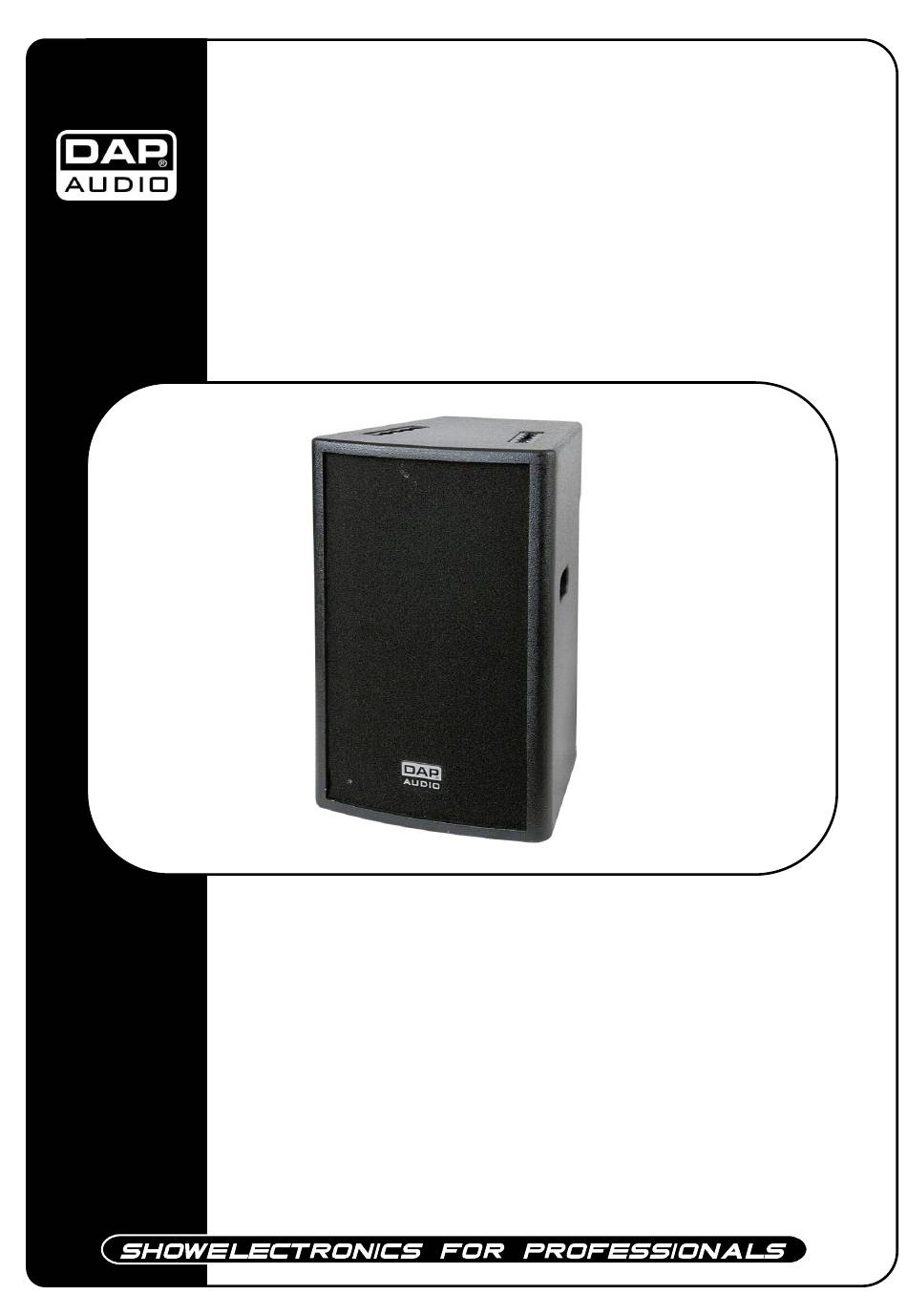

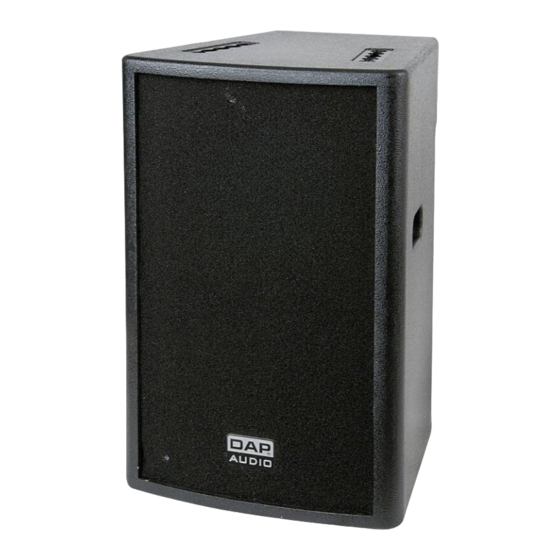

- Page 1 RX-10A ORDERCODE D3315 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
-
Page 3: Table Of Contents
DAP Audio DAP Audio RX-10A™ Product Guide Warning ..................................2 Unpacking Instructions ............................2 Safety-instructions ..............................2 Operating Determinations ............................3 Return Procedure ..............................4 Claims ..................................4 Description ..................................5 Features ..................................5 Overview ...................................5 Control Panel ................................6 Operation ..................................7 Connection Cables ..............................8 Maintenance .................................9 Replacing the Fuse ..............................9 Troubleshooting ................................9... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP RX-10A • IEC cable • User manual... -
Page 5: Operating Determinations
Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. Do not open the device and do not modify the device. ... -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description
Description of the device Features The RX-10A is a 10/1 active full range speaker system. • High performance fullrange enclosure • High power 10 inch low driver • 1 Inch high driver with 1,375 inch titanium dome • External speaker output (minimal 8 Ω) •... -
Page 8: Controlpanel
If the limit led lights up continuously, we strongly suggest lowering the input level using the master volume (10) control. 5) Speaker out Speakon fullrange speaker output for connecting a second RX-10A. Make sure the impedance of the external speaker is minimal 8 Ω. 6) Bass control Controls the level of the low frequencies. -
Page 9: Operation
Replace the fuse only with a fuse of same specification (T5A). Operation Installation Remove all packing materials from the RX-10A. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 10: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 11: Maintenance
Maintenance The RX-10A requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 12: Product Specifications
Product Specifications Power supply: 230V 50/60Hz Max. power consumption: 540W Fuse: T5A, 5x20mm Woofers: 1x PF-1050140E, 10 inch, steel basket, 8 Ohm, 50 mm Voice Coil. High Driver: PA-34S-1, 8 Ohm, 1 inch, titanium dome, 34 mm Voice Coil Amplifier Module: B&O ICEpower125ASX2 Amplifier Output: 450 Watt RMS in 4 Ohm... - Page 13 2011 Dap Audio.
