Summary of Contents for DAPAudio Odin S-218A Ultra Sub

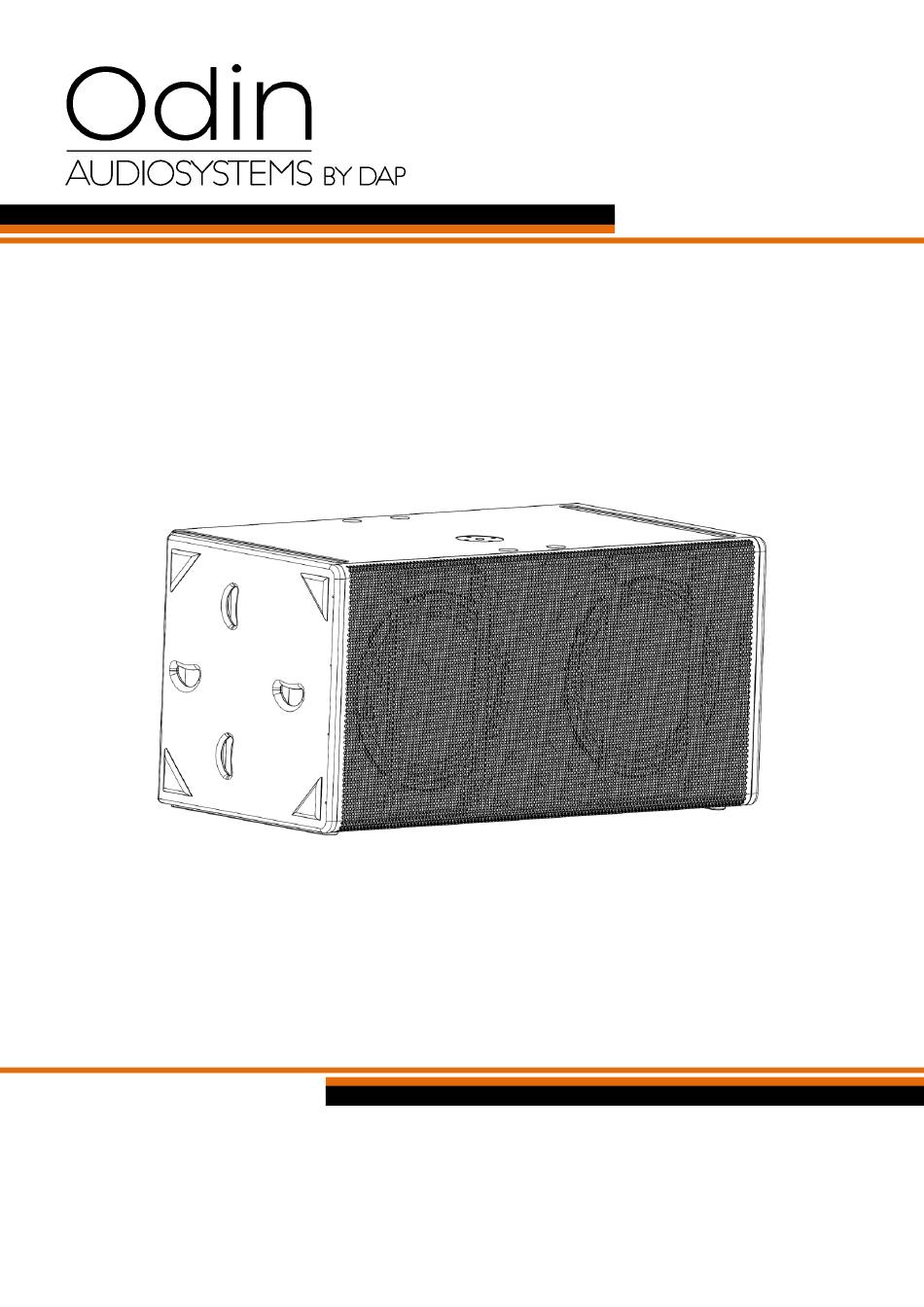

- Page 1 MANUAL ENGLISH Odin S-218A Ultra Sub Ordercode: D3902 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Odin S-218A Ultra Sub Table of contents Warning ....................................2 Safety Instructions ................................. 2 Connection with the mains ............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Backside ..................................6 Installation ................................... 7 Connection Example .............................. -
Page 3: Warning
Odin S-218A Ultra Sub Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 Odin S-218A Ultra Sub IMPORTANT! The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. ● Always disconnect power from the mains, when system is not used. Only handle the power cord by the plug.
-
Page 5: Connection With The Mains
Odin S-218A Ultra Sub Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER... -
Page 6: Description Of The Device
Odin S-218A Ultra Sub Description of the device Features The Odin is our new solution for all entertainers who need a professional, robust and roadproof speaker system. Owing to the efficient class-D power amplifier and the built-in DSP protection system, it is almost impossible to deform your sound in normal conditions. -
Page 7: Backside
Odin S-218A Ultra Sub Backside Fig. 02 LED indicators SIG/CLIP/PROT/POWER/ACTIVE The indicators light up to indicate the status of the input signal. 3-pin XLR audio connector LINK Connected in parallel with the XLR input (03). Use this connector to send an audio signal to another active speaker. -
Page 8: Installation
Odin S-218A Ultra Sub Installation Remove all packing materials from the Odin S-218A Ultra Sub. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 9: Set Up And Operation
Odin S-218A Ultra Sub Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 115V specification product on 230V power, or vice versa. -
Page 10: How To Make A Data Cable
Fig. 04 Maintenance The Odin S-218A Ultra Sub requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 11: Product Specifications
Odin S-218A Ultra Sub Product Specifications Odin S-218A Ultra Sub System: Active subwoofer AMP power: 4000W Continuous Class-D, 10000W Peak Speaker: 2x 18” (450 mm) CELESTION, Ferrite Magnet Subwoofer, 5“ Voice Coil, 1600W RMS, Water-Resistant Coating Frequency response (+/-3dB): 32 Hz - 110 Hz... - Page 12 ©2019 ODIN...
