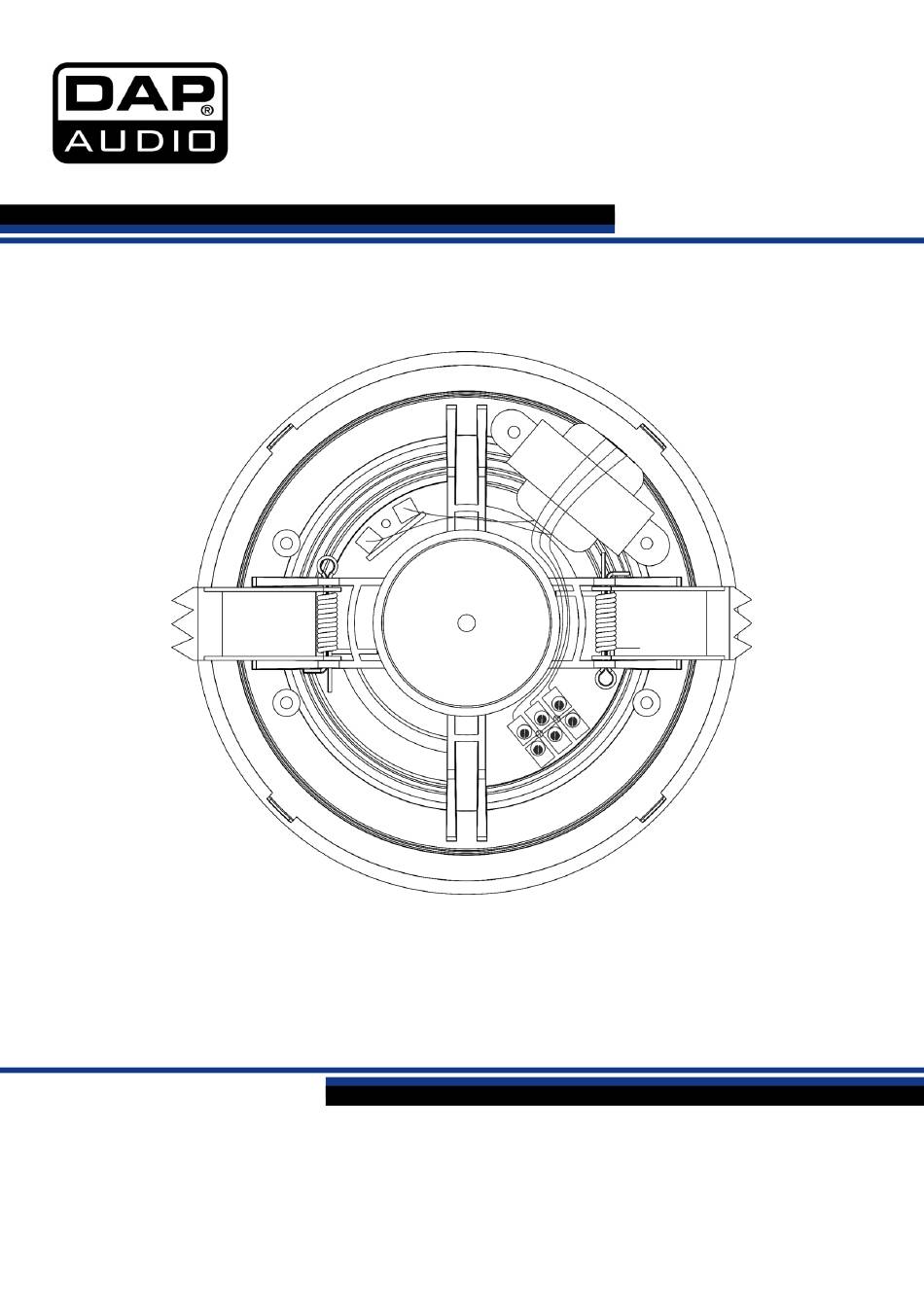

- Page 1 MANUAL ENGLISH EDCS-526 5’’ Order code: D6592B/D6592W Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
EDCS-526 5” Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the Device ..............................5 Overview ..................................5 Installation ................................... 6 Speaker Wiring ................................7 Troubleshooting ................................. 8 Product Specifications .............................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture will be returned in the original factory box and packing. Your shipment includes: ● DAP Audio EDCS-526 5" ● Template for in-ceiling mounting ● User manual... -
Page 4: Operating Determinations
● Clean only with dry cloth. ● When making the hole in your ceiling to mount the EDCS-526 5”, make sure there is sufficient clearance above the ceiling and there are no obstructions like A/C channels, power lines, etc. ●... -
Page 5: Return Procedure
EDCS-526 5” Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 6: Description Of The Device

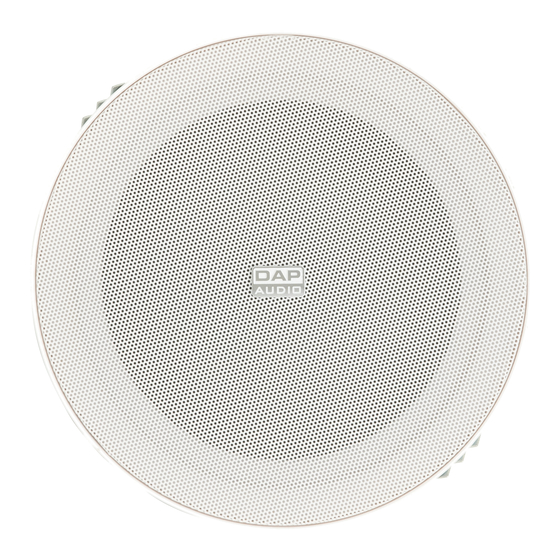

EDCS-526 5” Description of the Device Features DAP EDCS-526 5” is a 5-inch in-ceiling speaker suited for public spaces. ● Line voltage: 100 V ● Power taps: 3/6 W ● Power max.: 6 W ● Impedance: @ 3 W: 3101 Ω; @ 6 W: 1586 Ω... -
Page 7: Installation
EDCS-526 5” Installation Before installing the DAP EDCS-526 5”, ensure that the chosen location on the ceiling is free of any obstructions such as pipe work, ducting or wiring. In existing constructions, if no crawlspace is available, use a stud-finding tool to map the ceiling construction and a pipe detector to scan the installation location. -
Page 8: Speaker Wiring
EDCS-526 5” Speaker Wiring To achieve maximum performance from the speaker, it is recommended to use good quality CL2 or CL3 rated speaker cable. For distances greater than 20 m, use a 2,5 mm² cable. For shorter distances, a 1,5 mm² or 0,75 mm² cable is sufficient. -
Page 9: Troubleshooting
EDCS-526 5” Troubleshooting No Sound Always check if all cables and cords are connected. Always turn off power to the area before checking the wires, to prevent electric shock. If everything works properly and there is still no sound, consult the user manual to make sure the instructions were followed during installation. -
Page 10: Product Specifications
EDCS-526 5” Product Specifications Model: DAP Audio EDCS-526 5” Line voltage: 100 V Power taps: 3/6 W Power max.: Impedance: @ 3 W: 3101 Ω; @ 6 W: 1586 Ω Dispersion: 360° x 180° Speaker size: 5” Frequency response: 100 Hz–15 kHz... - Page 11 EDCS-526 5” Order code: D6592B/D6592W...
