SPECIFICATIONS
WN-100-120
Voltage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120VAC, 60Hz
Power Consumption . . . . . . . . . . . . . . . . . . . .0.92W maximum
Load Requirements . . . . .0-500W Incandescent, Fluorescent
. . . . . . . . . . . . . . . . . . . . . .and Compact Fluorescent
Horsepower Rating . . . . . . . . . . . . . . . . . . . . . . . . . . .1/6 HP
WN-100-277
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .277VAC, 60Hz
Power Consumption . . . . . . . . . . . . . . . . . . . . .0.92W maximum
Load Requirements . . . . . . . . . . . . . . . . . . . .800W Fluorescent
General
Time Delay Adjustment . . . . . . . .Fixed 15 minute, 30 minute,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 hour, 2 hour
Operating Temperature Range . . . . . . . . . .32-131°F (0-55°C)
Operating Humidity Range . . . . . . .95% RH, non-condensing

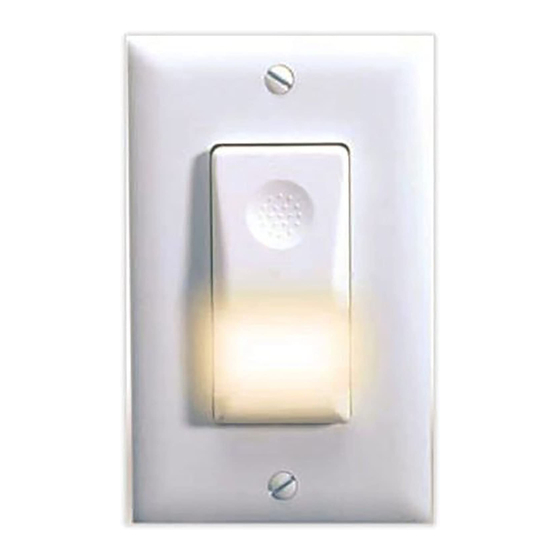

WN-100
Motion Sensor
Nightlight Switch
US Patent Number:
4,787,722
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for wattstopper WN-100
Summary of Contents for wattstopper WN-100
-
Page 1: Specifications
WN-100 Motion Sensor Nightlight Switch SPECIFICATIONS WN-100-120 Voltage ....... .120VAC, 60Hz Power Consumption . - Page 2 ON-Mode Functions (Manual-ON & Automatic-ON): Manual-ON: When the WN-100 is set to Manual-ON, users must turn lights on by pushing the ON/OFF button. Lights will not turn on automatically with occupancy in the Manual-ON mode. However, for a grace period of 30 seconds after shut-off, the WN-100 will turn the load back on automatically when motion is detected.
- Page 3 Single-sensor wiring COVERAGE PATTERNS The WN-100 has a coverage range of 180 degrees and a maximum coverage area of 300 sq. ft. To maintain its coverage capacity and optimally detect motion, the WN-100 must have a clear and unobstructed view.
- Page 4 CAUTION: TURN THE POWER OFF AT THE CIRCUIT BREAKER BEFORE WIRING. INSTALLATION Caution: A neutral connection is required for sensor operation. A qualified electrician should be consulted regarding the availability of a neutral in your particular installation. 1. Make sure that power has been turned off at the circuit breaker.
- Page 5 Enabled/Disabled status (lit = nightlight enabled, unlit = nightlight disabled). To change the status, continue to press and hold the ON/OFF button. After five (5) seconds, the WN-100 changes state (for more details, see “Nightlight” in the Operation section).
-
Page 6: Troubleshooting
TROUBLESHOOTING To test the WN-100: Initiate the WN-100 Test Mode by sliding the Program Mode Switch up to the ON (Program) position then back to the DOWN (End User) position. When the switch is returned to the DOWN (End User) position, there will be a five-minute test period. -
Page 7: Ordering Information
ORDERING INFORMATION WN-100-120 Motion Sensor Nightlight Switch 120VAC, 60Hz WN-100-277 Motion Sensor Nightlight Switch 277VAC, 60Hz ASP-211* Cover plate for single-gang box ASP-422 Blank cover plate for double-gang box ASP-432 Cover plate for double-gang box with switch option When ordering, add -W for white, -I for ivory for -A for light almond to the catalog number.
