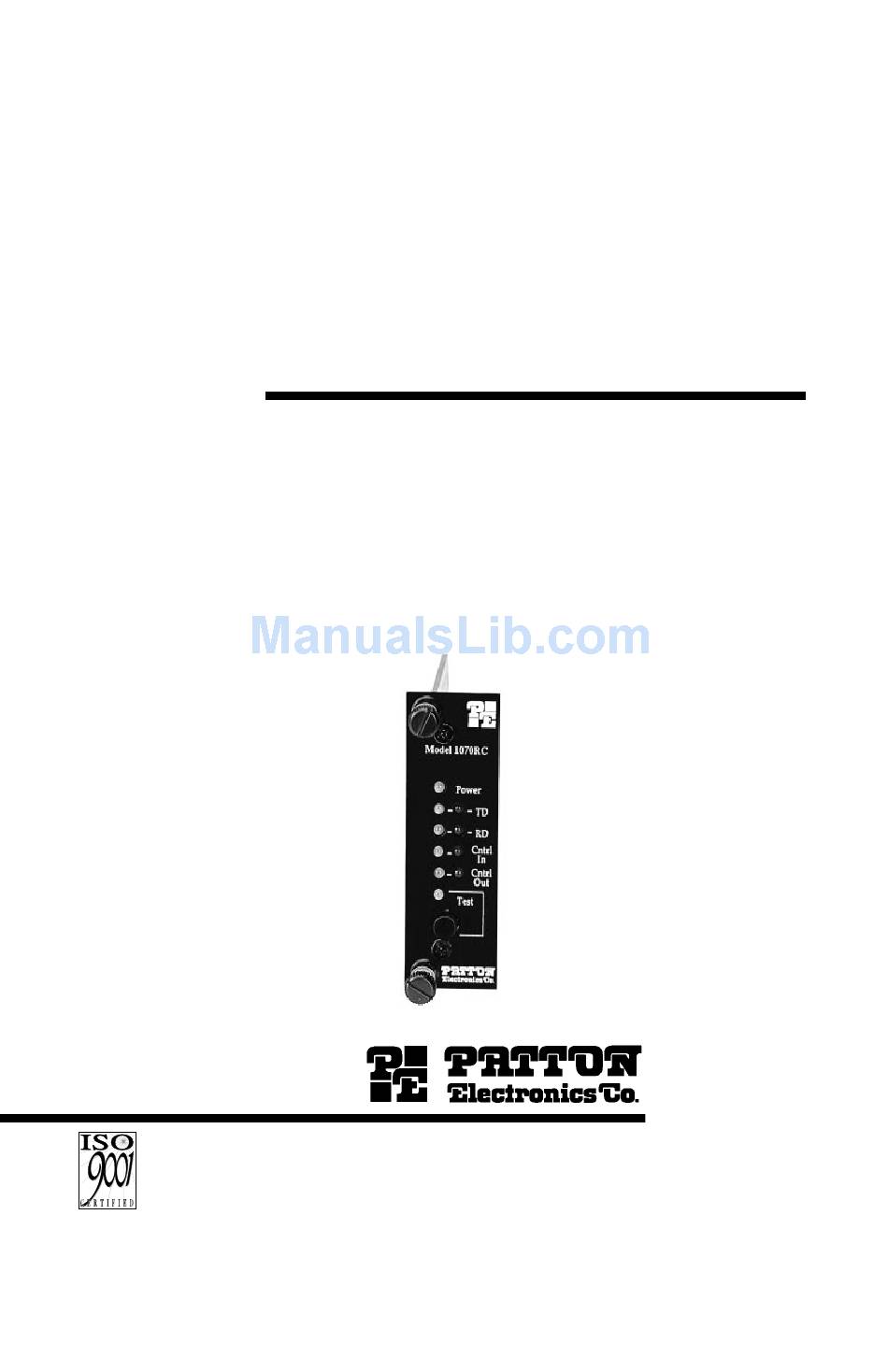

- Page 1 USER MANUAL MODEL 1070RC AC Powered, Synchronous Short Range Modem: Rack Mount Card Part #07M1070RC-B Doc #067021U, Rev. C Revised 1/23/08 C E R T I F I E D An ISO-9001 Certified Company SALES OFFICE (301) 975-1000 TECHNICAL SUPPORT (301) 975-1007 http;//www.patton.com...
-
Page 2: Radio And Tv Interference
The Model 1070RC has been tested and found to comply with the limits for a Class A computing device in accordance... - Page 3 NOTE: Packages received without an RMA number will not be accepted. Patton Electronics' technical staff is also available to answer any questions that might arise concerning the installation or use of your Model 1070RC. Technical Service hours: 8AM to 5PM EST, Monday through Friday.
-
Page 4: General Information

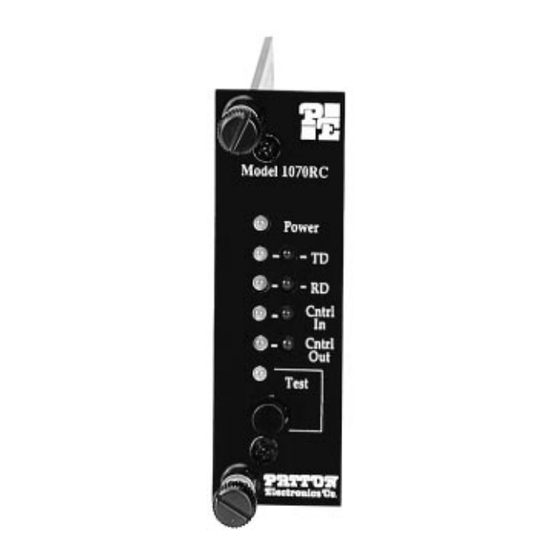

The Model 1070RC Synchronous Short Range Modem Rack Card operates full duplex, over two unconditioned twisted pair. Supporting data rates to 19.2 Kbps, the Model 1070RC has a maximum range of 10 miles (@ 1200 bps over 19 AWG wire). The Model... - Page 5 The Model 1070RC uses a set of eight DIP switches that allow configuration to a wide range of synchronous applications. These DIP switches are accessible when the card is slid out of the rack chassis.
-
Page 6: Detailed Switch Settings
Data Rate Switches 1 thru 3 are set in combination to allow the Model 1070RC to be used at data rates from 1200 bps up to 19,200 bps. Switch 1 Switch 2 Note: Switch 4 is not used. - Page 7 RTS/CTS Delay Switches 6 and 7 are used together to specify RTS/CTS delay. After request to send (RTS) is raised by the host terminal, the 1070RC raises CTS after a slight delay in order to give the remote terminal time to receive an incoming signal.
-
Page 8: Rear Card Configuration
3.3 REAR CARD CONFIGURATION The 1070RC has four interface half-card options: DB-25/RJ-11, DB-25/RJ-45, RJ-45/RJ-11, and dual RJ-45. Each of these options supports one RS-232 connection and one 4-wire connection. Figure 4 (opposite page) illustrates the four different interface options for the... - Page 9 3.3.1 DB-25/RJ-11 & DB-25/RJ-45 STRAP SETTINGS Figure 5 (below) shows strap locations for the Model 1000RCM12511 (DB-25/RJ-11) and the Model 1000RCM12545 (DB- 25/RJ-45) rear cards. These straps determine various grounding characteristics for the RS-232 and twisted pair lines. (peg 1 on left) (peg 1 on top) (peg 1 on left) Figure 5.
-
Page 10: Sgnd & Frgnd (Jb4)
The table below provides an overview of strap functions for the DB- 25/modular cards. Following this overview is a detailed description of each strap's function. INTERFACE CARD STRAP SUMMARY TABLE #1 Strap Function Line Shield & FRGND DTE Shield (Pin1) & FRGND FRGND &... - Page 11 3.3.2 RJ-45/RJ-11 & RJ-45/RJ-45 STRAP SETTINGS Figure 8 (below) shows strap locations for the Model 1000RM1D11 (RJ-45/RJ-11) and the Model 1000RM1D45 (RJ-45/RJ-45) rear cards. These straps determine various grounding characteristics for the RS- 232 and twisted pair lines. (peg 1 on left) Figure 8.
- Page 12 1 & 2. Placing the strap on pegs 2 & 3 is not a valid option when using this rear interface card in conjunction with the Model 1070RC. Position 1&2 = Ready Start (DSR) Operation...
-
Page 13: Installation
This section describes the functions of the Model 1000R16 rack chassis, tells how to install front and rear Model 1070RC cards into the chassis, and provides diagrams for wiring up the interface connections correctly. 4.1 THE MODEL 1000R16 RACK CHASSIS The 1000R16 Rack Chassis (shown in figure 10, below) has sixteen short range modem card slots, plus its own power supply. - Page 14 4.2 INSTALLING THE MODEL 1070RC INTO THE CHASSIS The Model 1070RC is comprised of a front "brains" half card and a rear "connections" card. The two cards meet inside the rack chassis and plug into each other by way of mating 50 pin card edge connectors.
-
Page 15: Twisted Pair Connection
Equipment). Therefore, it wants to connect to a DTE (Data Termination Equipment). If your RS-232 output device is a DTE, use a straight though cable to connect to the Model 1070RC. If your RS-232 output device is DCE, call Patton Technical Support at 301-975-1007 for specific installation instructions. - Page 16 4.4.2 Multipoint Twisted Pair Connection Figure 11 (below) shows how to wire two-pair cables properly for a Model 1070RC star topology. HOST Figure 11. Star wiring for Model 1070RC host and slaves RJ-11 Notice! Any modular twisted pair cable connected to...
-
Page 17: Operation
Once you have configured each Model 1070RC and connected the cables, you are ready to operate the units. Section 5.0 describes the LED status monitors, the power-up procedure, and the use of the built- in loopback test modes. 5.1 LED STATUS MONITORS The Model 1070RC features ten front panel status LEDs that indicate the condition of the modem and communication link. - Page 18 1070RC when its card-edge connector makes contact with the chassis' mid-plane socket, or when the chassis' power supply is turned on. Note: The 1070RC is a "hot swappable" card--it will not be damaged by plugging it in or removing it while the rack is powered up.
-
Page 19: Test Modes
Local Analog Loop The Local Analog Loop test mode causes any data sent to the local 1070RC by the local RS-232 device to be echoed back to that RS- 232 device. For example, characters typed on the keyboard of a terminal will appear on the terminal screen. - Page 20 APPENDIX A. MODEL 1070RC SPECIFICATIONS Transmission Format: Synchronous External Interface: RS-232C/CCITT V.24 connection via DB-25 Female; EIA/TIA-561 connection via RJ-45 (10 wire); twisted pair connection via RJ-11 or RJ-45 (8 wire). Internal Interface: Connection to Model 1000R16 rack chassis via 50 pin male card edge.
- Page 21 MODEL 1070RC CABLE RECOMMENDATIONS The Patton Model 1070RC operates at frequencies of 20kHz or less and has been performance tested by Patton technicians using twisted- pair cable with the following characteristics: Wire Gauge 19 AWG/.9mm 22 AWG/.6mm 24 AWG/.5mm Using or simulating cable with the above characteristics, the...
- Page 22 FACTORY REPLACEMENT PARTS The Patton Model 1070RC rack system features interchangeable rear half cards, power cords/fuses for international various operating environments and other user-replaceable parts. Model numbers and descriptions for these parts are listed below: Patton Model # 1000RPEM...120/240V Rear Power Entry Module 1000RPSM-2...120/240V Front Power Supply Module...
- Page 23 MODEL 1070RC INTERFACE STANDARDS DIRECTION STANDARD RS-232C/V.24 "DCE" SETTING From 1070RC Transmit Clock - 15 From 1070RC Receive Clock - 17 To 1070RC Data Term. Ready (DTR) - 20 To 1070RC External Clock - 24 EIA/TIA-561 REFERENCE - 8 Wire RJ-45...
- Page 24 APPENDIX E. MODEL 1070RC BLOCK DIAGRAM Copyright © 1997 Patton Electronics Company All Rights Reserved...
- Page 28 Dear Valued Customer, Thank you for purchasing Patton Electronics products! We do appreciate your business. I trust that you find this user manual helpful. We manufacture one of the widest selections of data communications products in the world including CSU/DSU's, network termination units, powered and self-powered short range modems, fiber optic modems, interface converters, baluns, electronic data switches, data-line surge protectors, multiplexers, transceivers, hubs, print servers and much more.
