TuffStuff apollo standard Assembly Instructions Manual page 5

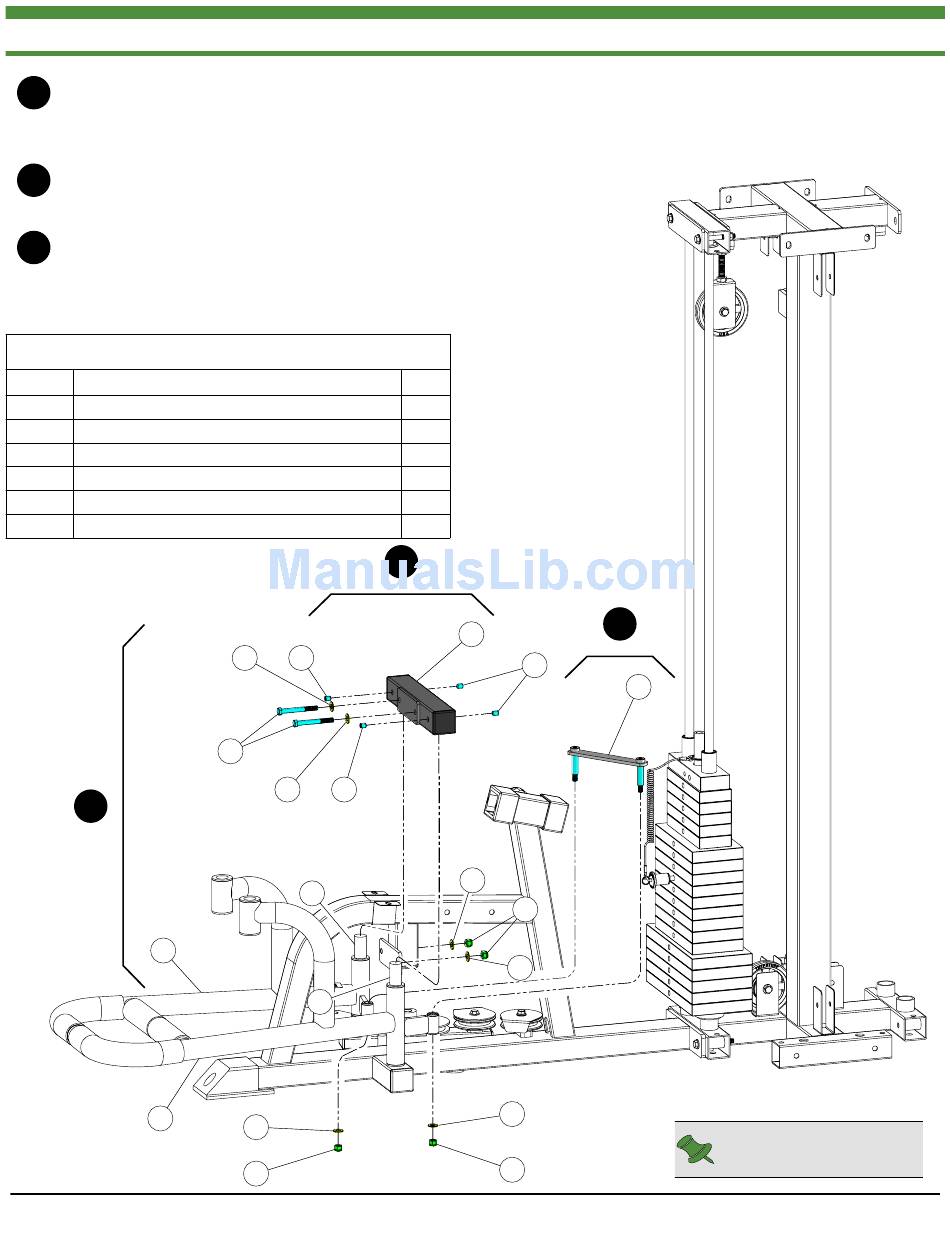

Step 3 Connect Pivot Legs
A
Maneuver the two Pivot Axles (#14) into the holes on the bottom side of the Pivot Axle Support Tube (#15). Next,
loosely fasten the Pivot Axle Support Tube (#15) along with the two captive Pivot Axles (#14) to the Main Frame (#11)
using hardware shown.
B
Attach the Pivot Actuator Plate (#13) to the Pivot Legs (#8, 16) receptacles
and secure it into place using hardware shown.
C
Tightly fasten the Pivot Axle Support Tube (#15) to the Main Frame (#11).
Then, thread the four Socket Set Screws 3/8-16 X 1/2 (#57) to align the Pivot
Legs (#8, 16).
Assembly List
Item #
13 PIVOT ACTUATOR PLATE
15 PIVOT AXLE SUPPORT TUBE
30 FLAT WASHER SAE B/O 3/8"
34 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 1/4
40 NYLON INSERT LOCK NUT B/O 3/8-16
57 SOCKET SET SCREW ALLOY 3/8-16 X 1/2
A
16
8
Inner Outer Thigh Station
Description
30 57
34
30 57
14
14
30
40
Qty.
1
1
6
2
4
4
C
15
57
30
40
30
30
40
B
13
Note: Some parts have
been cut away for clarity.
4
