TuffStuff apollo standard Assembly Instructions Manual page 4

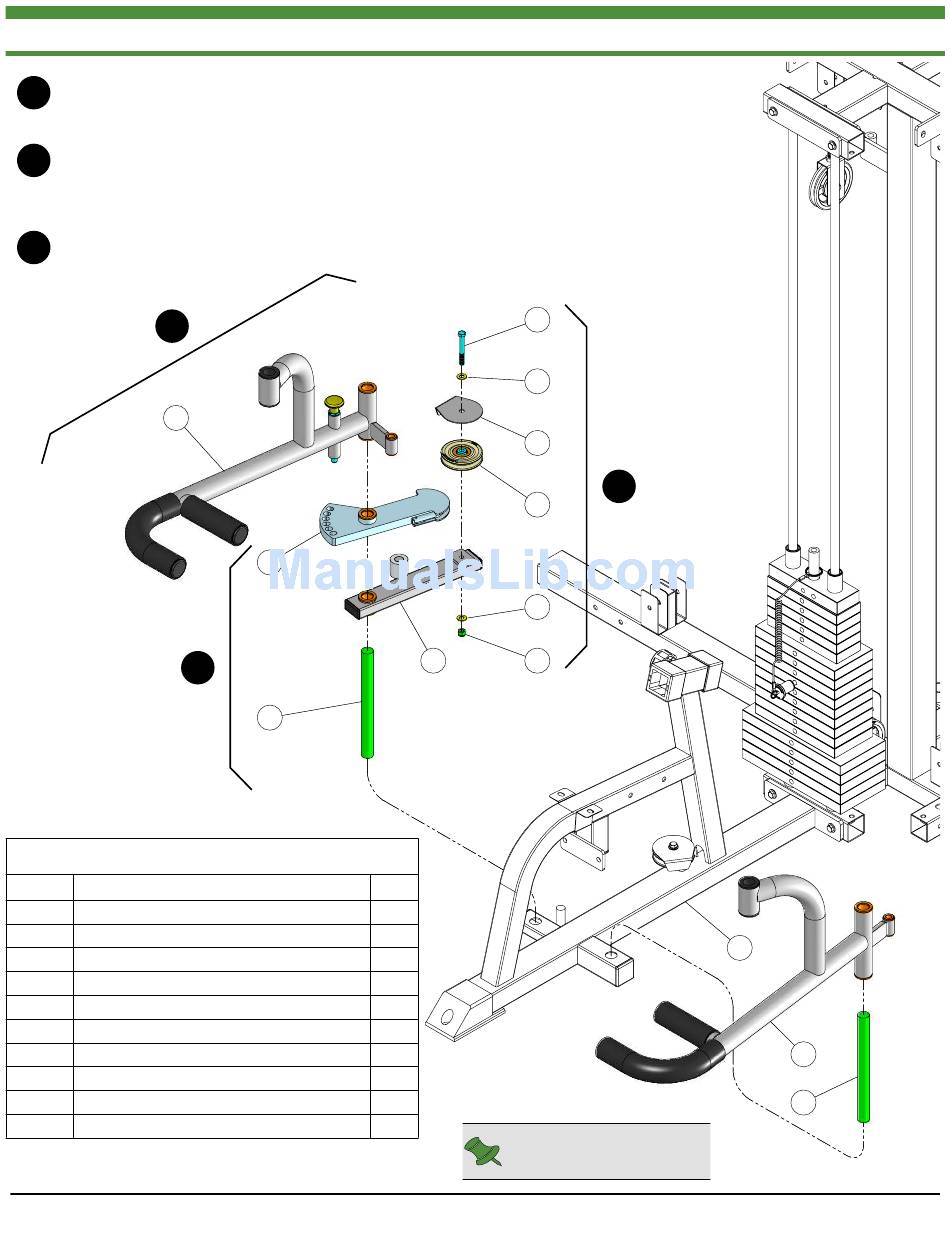

Step 2 Attach Pivot Legs to Main Frame
A
Attach a Pulley 3/8 X 3 1/2 (#22) and a Small Cover Plate 3 1/2 Pulley (#19) to the Cam
Support Tube (#5) using hardware shown.
B
Insert the Pivot Axles (#14) into the receptacles of the Main Frame (#11). Next, attach the
Cam Support Tube (#5) and the Adjustable Cam Plate (#2) to the right side Pivot Axle
(#14).
C
Attach the Pivot Legs (#8, 16) to the Pivot Axles (#14).
C
16
B
Assembly List
Item # Description
2 ADJUSTABLE CAM PLATE
5 CAM SUPPORT TUBE
8 LEFT PIVOT LEG
14 PIVOT AXLE 1 X 10 13/16
16 RIGHT PIVOT LEG
19 SMALL COVER PLATE 3 1/2" PULLEY
22 PULLEY 3/8" X 3 1/2"
30 FLAT WASHER SAE B/O 3/8"
33 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3
40 NYLON INSERT LOCK NUT B/O 3/8-16
3
2
5
14
Qty.
1
1
1
2
1
1
1
2
1
1
33
30
19
A
22
30
40
Note: Some parts have
been cut away for clarity.
11
8
14
Inner Outer Thigh Station
