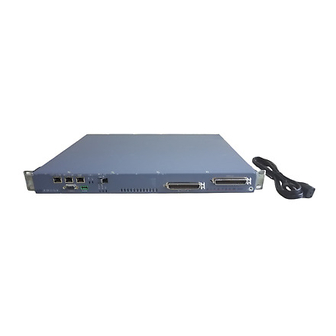

Paradyne BitStorm 4800 Express Installation Manual

Stackable ip dslam
Hide thumbs Also See for BitStorm 4800 Express:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual
®
BitStorm
4800 Express
Model 4821-A2
Installation Guide
Document No. 4821-A2-GN21-10
July 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BitStorm 4800 Express and is the answer not in the manual?

Questions and answers

Related Manuals for Paradyne BitStorm 4800 Express

Summary of Contents for Paradyne BitStorm 4800 Express

  • Page 1 ® BitStorm 4800 Express Model 4821-A2 Installation Guide Document No. 4821-A2-GN21-10 July 2004...
  • Page 2 Paradyne worldwide office locations, use one of the following methods: Internet: Visit the Paradyne World Wide Web site at www.paradyne.com. (Be sure to register your warranty at www.paradyne.com/warranty.) Telephone: Call our automated system to receive current information by fax or to speak with a company representative.

  • Page 3: Software And Firmware License Agreement

    6. In no event will Paradyne be liable to Licensee for any consequential, incidental, punitive or special damages, including any lost profits or lost savings, loss of business information or business interruption...
  • Page 4 7. The rights granted under this Agreement may not be assigned, sublicensed or otherwise transferred by the Licensee to any third party without the prior written consent of Paradyne. 8. This Agreement and the license granted under this Agreement shall be terminated in the event of breach by the Licensee of any provisions of this Agreement.

  • Page 5: Emi Notices

    The authority to operate this equipment is conditioned by the requirements that no modifications will be made to the equipment unless the changes or modifications are expressly approved by Paradyne Corporation. If the equipment includes a ferrite choke or chokes, they must be installed per the installation instructions.
  • Page 6 CE Marking When the product is marked with the CE mark on the equipment label, a supporting Declaration of Conformity may be downloaded from the Paradyne World Wide Web site at www.paradyne.com. Select Library → Technical Manuals → CE Declarations of Conformity.

  • Page 7: Table Of Contents

    Installing the BitStorm 4800 Express Into a Rack ....Installing the BitStorm 4800 Express on a Wall ....
  • Page 8 Configure Management Out-of-Band Address ....BitStorm 4800 Express Startup Procedure .....

  • Page 9: About This Guide

    Pin Assignments Appendix B, Equipment List Appendix C, Technical Specifications Index A master glossary of terms and acronyms used in Paradyne documents is available on the World Wide Web at www.paradyne.com. Select Support → Technical Manuals → 4821-A2-GN21-10 Description Describes the physical installation of the BitStorm 4800 Express into a rack.

  • Page 10: Related Product Documents

    Document Number 4821-A2-GB21 4821-A2-GB22 6051-A2-GZ40 6210-A2-GB20 7890-A2-GB22 To order a paper copy of a Paradyne document, or to talk to a sales representative, please call 727-530-2000. Technical Manuals. Document Title BitStorm 4800 Express Model 4821-A2 Command Line Interface Reference Describes the Command Line Interface (CLI) used to configure and monitor the BitStorm 4800 Express.

  • Page 11: Installation

    ADSL CPE. A Command Line Interface (CLI) and a web browser interface are provided. The unit also may be managed using a network manager such as the Paradyne GrandVIEW™ Element Management System (EMS). BitStorm 4800 Express IP DSLAM models and features are listed in BitStorm 4800 Express Models and Table 1-1.

  • Page 12: Preparation

    Up to five BitStorm 4800 Express units may be stacked on a shelf or desktop. Power The BitStorm 4800 Express operates from a 90 to 265 VAC, 47 to 63 Hz power source. Cabling No cable except the power cable is provided with the BitStorm 4800 Express.

  • Page 13: Cables Required

    July 2004 1. Installation For Connecting . . . Up to 24 DSL ports per cable to a POTS splitter. The BitStorm 4800 Express to a network. A Network Management System (NMS) over a Local Area Network (LAN) employing 10BaseT or 100BaseT.

  • Page 14: Unpacking The Hardware

    Carefully remove the unit from its shipping container and check for physical damage. If the unit shows signs of shipping damage, notify your sales representative. Package Contents In addition to this installation guide, the BitStorm 4800 Express shipping carton should contain: BitStorm 4800 Express DSLAM AC Power Cable...
  • Page 15 Table 1-3. Appearance 4821-A2-GN21-10 Contents of Hardware Kit Shipped with the BitStorm 4800 Express Description Flat-head screw for attaching 19" mounting brackets to unit 02-17259 Machine screw with captive starwasher (6-32 x 1/4″) for attaching 23" mounting brackets to unit...

  • Page 16: Mounting Configurations

    Desktop Mounting Brackets Your BitStorm 4800 Express can be installed in a rack or on the wall using mounting brackets. Two brackets suitable for a 19-inch (483 mm) rack (marked EIA-19) and two brackets suitable for a 23-inch (584 mm) Bay Networks or Nortel rack (marked with Paradyne Part Number 868-6282-0020) are shipped with the unit.
  • Page 17 1. Installation 3. Identify six flat-head screws (for 19-inch racks) or six machine screws (for 23-inch racks) provided with the mounting brackets in the hardware kit. 4. Attach the brackets appropriate to your rack size. Tighten all screws firmly. 4821-A2-GN21-10 July 2004...

  • Page 18: Installing The Bitstorm 4800 Express Into A Rack

    Procedure To install the BitStorm 4800 Express into a rack: 1. Determine where in the rack you will mount the BitStorm 4800 Express. If your rack does not have threaded screw holes, slip self-retaining nuts onto the rails where the BitStorm 4800 Express will be fastened.
  • Page 19 1. Installation 3. Insert and tighten the screws in the top screw positions, then tighten the bottom screws. 4821-A2-GN21-10 July 2004...

  • Page 20: Installing The Bitstorm 4800 Express On A Wall

    3/4-inch (19 mm) plywood (not drywall). Procedure To install the BitStorm 4800 Express on a wall: 1. Identify the flat-head screws provided in the hardware kit and the brackets suitable for a 23-inch rack. Two screws are required for each bracket.
  • Page 21 6. Install two wood screws (not provided) at the same height above the floor and 18.75 inches (476.25 mm) apart. Do not completely tighten the screws. Leave them so their heads are about 1/4 inch (6 mm) from the wall. 7.

  • Page 22: Installing The Bitstorm 4800 Express On A Shelf Or Desktop

    Procedure To install the BitStorm 4800 Express on a shelf or desktop, as a standalone unit or in a stack: 1. Locate the rubber feet in the hardware kit provided with the unit.

  • Page 23: Cabling

    Cabling Cabling Overview The BitStorm 4800 Express has a large variety of possible cabling configurations. This chapter describes all possible connections, not all of which are required: DSL Ports 10/100BaseT Uplink (Port 2) Management Port Console Port Ground Connecting to Power...

  • Page 24: Dsl Ports

    2. Cabling DSL Ports The BitStorm 4800 Express DSL connector supports the tip and ring connections of up to 24 DSL ports over a 50-position cable. There are two DSL connectors on the 48-port model. You must connect the unit to a separate POTS splitter. The Model 6051 POTS Splitter must be used for customer premises applications in Canada.

  • Page 25: 10/100Baset Uplink (Port 2)

    6. Secure the cables as required for strain relief. 10/100BaseT Uplink (Port 2) Port 2 is the uplink for the DSLAM. A straight-through cable can be used regardless of the destination interface, since the port automatically distinguishes between an MDI and an MDIX. Procedure To use Port 2 as the uplink: 1.

  • Page 26: Management Port

    To use Port 1 as the out-of-band management port: 1. Connect an 8-position modular cable to Port 1. 2. If the BitStorm 4800 Express is in a rack, fasten the cable to a rail with a cable tie. 3. Connect the other end of the cable to your Ethernet switch or a network interface card in a PC.

  • Page 27: Console Port

    CONSOLE port using a DTE cable (see procedure below). You can also use the CONSOLE port to attach a modem to the BitStorm 4800 Express for remote dial-in management of the unit using a DCE cable (see...

  • Page 28: Connecting A Modem To The Console Port

    3. If the modem will be permanently connected, fasten the connector to the Management Module with its captive screws. If the BitStorm 4800 Express is in a rack, dress the cable to the left and attach it to the rail with a cable tie.

  • Page 29: Ground

    Ground Procedure To connect the unit to a ground: 1. Crimp a ring terminal onto the stripped end of 14 AWG or heavier copper ground wire. 2. Remove the screw marked by the ground symbol ( front panel. 3. Fasten the ring terminal to the front panel using the same screw. 4.

  • Page 30: Connecting To Power

    1. Insert the supplied power cord into the power socket on the back of the unit. 2. If the BitStorm 4800 Express is in a rack, dress the power cord to the left and fasten it to the rail with a cable tie.

  • Page 31: Leds

    LEDs LED Locations The locations of the System and DSL Port LEDs on the front panel of the BitStorm 4800 Express are shown in Figure 3-1. 4821-A2-GN21-10 Figure 3-1, Front Panel Front Panel LEDs July 2004 LEDs.

  • Page 32: Led Meanings

    3. LEDs LED Meanings When power is first applied to the unit, it performs a power-on self-test. When this test is successfully completed, the Status LED blinks. The meaning of all the LEDs is shown in Table 3-1. Link* Activity* STATUS ALARM TEST...

  • Page 33: Configuration

    The BitStorm 4800 Express is designed to require minimal configuration before it can be accessed by a Network Operations Center (NOC). When the BitStorm 4800 Express is first powered up it is a fully functional bridge, and all DSL ports are set to their maximum speed.

  • Page 34: Using The Cli

    4. Configuration Using the CLI A command line interface (CLI) can be used to configure and monitor the unit. The CLI is available from a PC or terminal connected to the Console port, or from a Telnet session with the device. The following commands are available: Table 4-1.

  • Page 35: Configure Management Inband Address

    Configure Management Inband Address The configure management inband address command specifies the IP address of the unit. configure management inband address {ip_address} { subnet_mask} Minimum Access Level: Administrator ip_address – Specifies the management IP address. Default is 0.0.0.0 (disabled). Do not configure inband and out-of-band management on the same subnet.

  • Page 36: Bitstorm 4800 Express Startup Procedure

    4. Configuration BitStorm 4800 Express Startup Procedure You can initialize your BitStorm 4800 Express via a PC or terminal connected to the unit’s CONSOLE port. Then, using a series of CLI commands, GrandVIEW EMS or another Element Management System, or the web interface, you can configure the unit according to your requirements.

  • Page 37: Startup Procedure For Inband Management

    Startup Procedure for Inband Management With inband management, the BitStorm 4800 Express is managed using the uplink port. Procedure To start up the BitStorm 4800 Express using inband management: 1. To avoid losing your connection when the IP address is changed, access the CLI using the CONSOLE port.

  • Page 38: Using The Web Interface

    1. Open your web browser. (Internet Explorer Version 6 or above is recommended.) 2. Type http:// and the IP address of the BitStorm 4800 Express into the Address field of your browser window. For example: 3. A login window appears. Enter the default User ID (admin) and leave Password blank.

  • Page 39: System / Users

    System / Users For security reasons, it is a good idea to change the default password the first time you use the system. Procedure To change the default password for user admin: 1. Click on the System menu tab, then click on Users. The folllowing screen appears.

  • Page 40: Configuration / Management / Snmp

    4. Configuration Configuration / Management / SNMP SNMP access to the unit is disabled by default. The read-only community string is public, and the read-write string is private. Community strings, network management system addresses, and trap manager addresses can be set using the System/Management/SNMP screen.

  • Page 41: A Connectors And Pin Assignments

    The following sections provide pin assignments for: DSL Ports Connectors Port 1 and Port 2 10/100BaseT Connectors Console Port Connector Figure A-1. 4821-A2-GN21-10 on page A-2 on page A-4 BitStorm 4800 Express IP Front Panel July 2004 on page A-3...

  • Page 42: Dsl Ports Connectors

    A. Connectors and Pin Assignments DSL Ports Connectors The 50-pin RJ21X Telco connectors labeled DSL Ports 1–24 and (on the 48-port model) DSL Ports 25–48 provide the 2-wire loop interface from each DSL port to the POTS splitter. The Canadian designation for this connector is CA21A. Table A-1 are not used.

  • Page 43: Port 1 And Port 2 10/100Baset Connectors

    Port 1 and Port 2 10/100BaseT Connectors Port 1 and Port 2 are 8-pin unkeyed modular jacks for a 10/100BaseT interface. Table A-2. Port 1 and Port 2 Pinouts Signal Transmitted Data + Transmitted Data – Received Data + Unused Unused Received Data –...

  • Page 44: Console Port Connector

    A. Connectors and Pin Assignments Console Port Connector The CONSOLE port connector is a DB9 socket connector that supports an EIA-232-E circuit as shown in Table A-3. Console Port Connector RS-232 Signal Ground Receive Data Send Data Data Terminal Ready Ground Ground Ground...

  • Page 45: Equipment List

    BitStorm 4800 Express Model 4821-A2 Command Line Interface Reference (paper copy) BitStorm 4800 Express Model 4821-A2 SNMP Reference (paper copy) BitStorm 4800 Express 24-Port IP DSLAM, with North America power cord Includes BitStorm 4800 Express, 19- and 23-inch mounting brackets and hardware, and Installation Guide.
  • Page 46 B. Equipment List July 2004 4821-A2-GN21-10...

  • Page 47: Technical Specifications

    Dimensions Power Power Consumption Weight 4821-A2-GN21-10 Criteria Each BitStorm 4800 Express is independently cooled with integral fans and does not rely on vertical air flow. G.dmt (G.992.1) G.lite (G.992.2) ANSI T1.413-1998 Meets the following standards: EN 300 386-2 EN 55024...
  • Page 48 C. Technical Specifications July 2004 4821-A2-GN21-10...
  • Page 49 10/100BaseT pinouts, A-3 AC power, 2-8 Activity LEDs, 3-2 administrator, login, 4-4 Alarm LED, 3-2 audience for this document, iii autosensing, 2-3–2-4 BitStorm 4800 Express description, 1-1 features, 1-1 models, 1-1 brackets installation for rack mount, 1-6 cables, A-1 DSL ports, A-2...
  • Page 50 B-1 out-of-band management configuring, 4-5 described, 4-4 overview cabling, 2-1 configuration, 4-1 management modes, 4-4 of BitStorm 4800 Express, 1-1 of book, iii package contents, 1-4 part numbers, B-1 password, 4-4 changing, 4-7 default, 4-4 PC cabling and settings, 2-5...
  • Page 51 POTS splitter cabling, 2-2 pin assignments, A-2 port description, 1-3 power, C-1 connecting to, 2-8 consumption, C-1 requirements, 2-8, C-1 preinstallation, 1-2 product-related documents, iv purpose of this document, iii rack installation, 1-8 bracket installation, 1-6 example, 1-9 procedure, 1-8 related documents, iv Return key, 4-2 RJ21X connectors, A-2...
  • Page 52 Index IN-4 July 2004 4821-A2-GN21-10...
