ON DIP
1 2 3 4

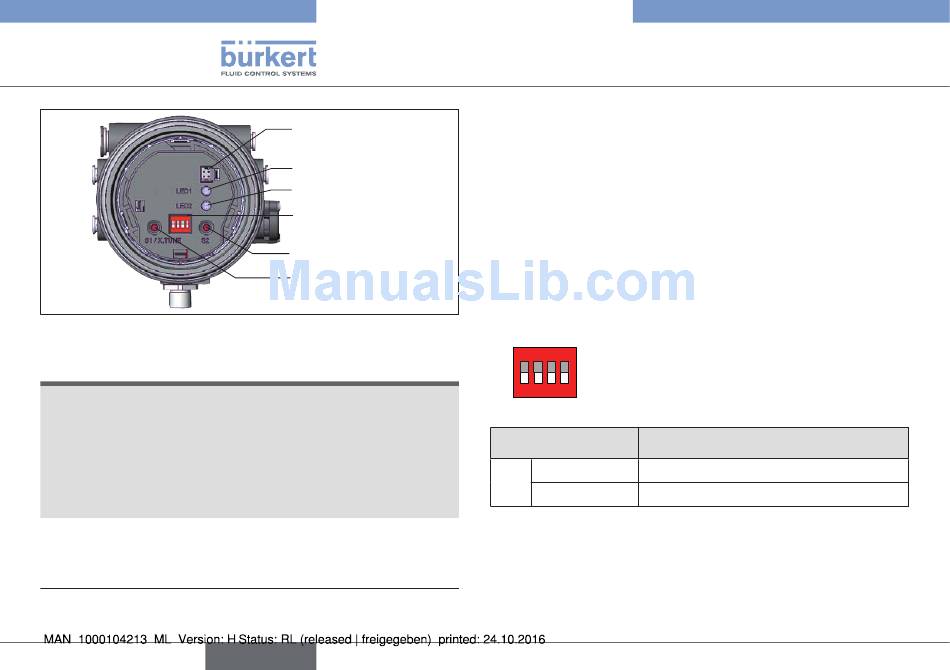

Fig. 21: Description of the control elements
NOTE!
Breakage of the pneumatic connection pieces due to rota-
tional impact.
▶ When unscrewing and screwing in the transparent cap, do not
hold the actuator of the process valve but the connection housing.
Damage or malfunction due to penetration of dirt and humidity.
▶ To observe degree of protection IP65 / IP67, screw the trans-
parent cap in all the way.
→
Close the device (assembly tool: 674077
The assembly tool (674077) is available from your Bürkert sales office.
7)
24
Communications
interface
LED 1
LED 2
DIP Switches
Key 2
Key 1
).
7)
english
Type 8694
Start-up
10.3.1 Operating status
AUTOMATIC (AUTO)
Normal controller mode is implemented and monitored in AUTO-
MATIC operating state.
LED 1 flashes green.
MANUAL (MANU)
In MANUAL operating state the valve can be opened and closed
manually via the keys.
LED 1 flashes red / green alternately.
The DIP switch 4 can be used to switch between
ON DIP
the two operating states AUTOMATIC and
MANUAL.
1 2 3 4
DIP switches Function
4 ON Operating status MANUAL (MANU)
OFF Operating status AUTOMATIC (AUTO)
Tab. 11: DIP switches
