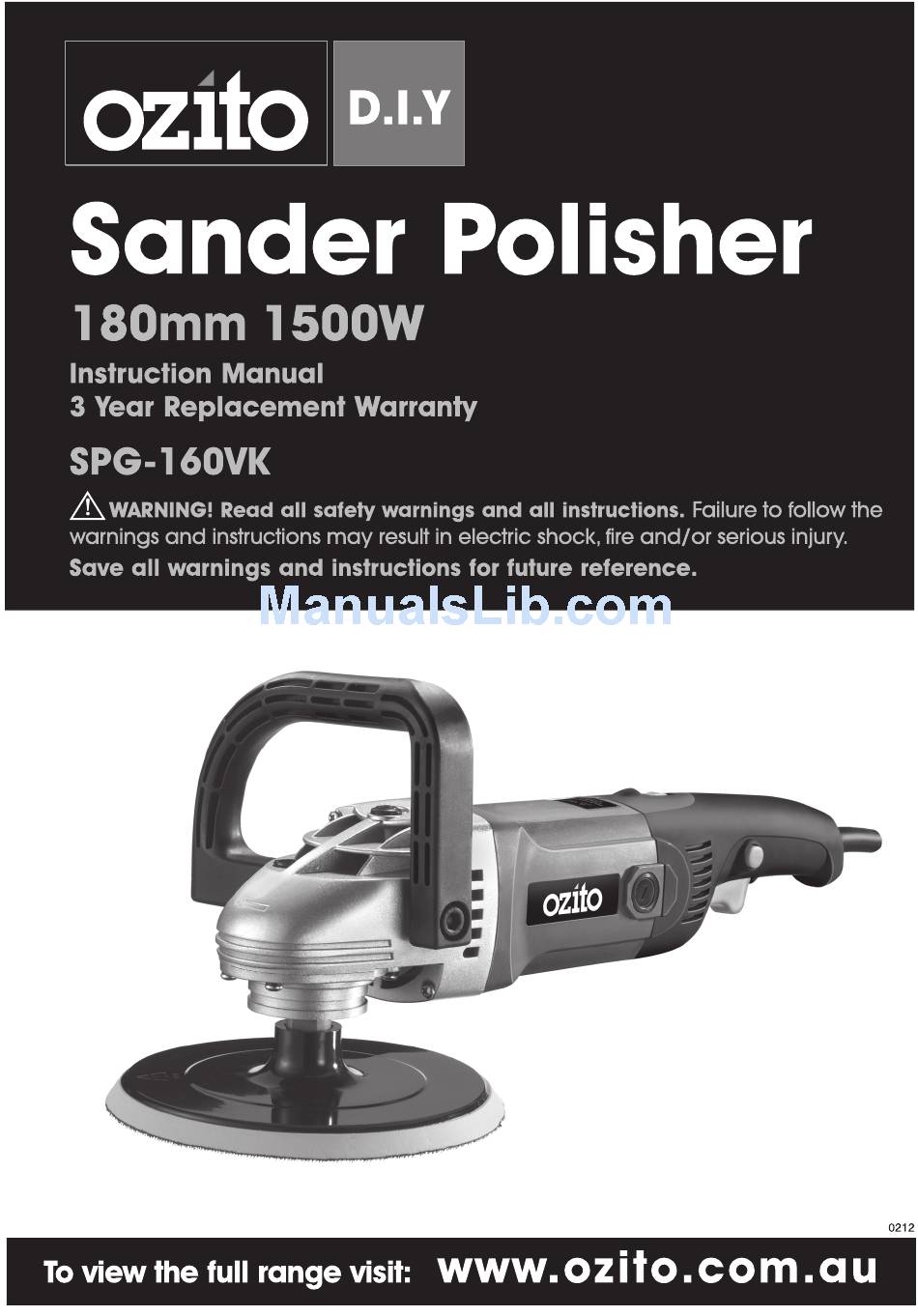

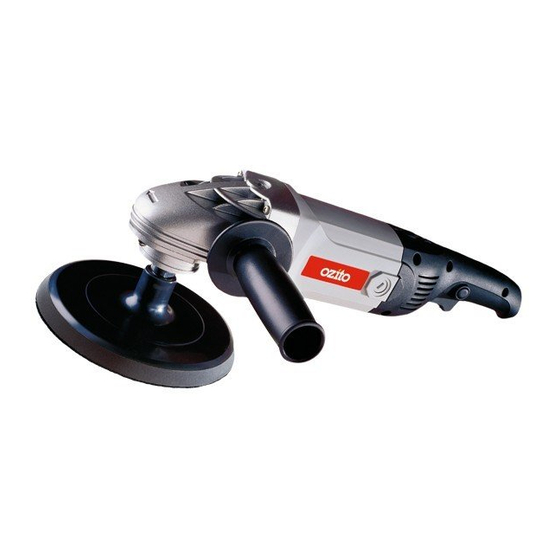

Ozito SPG-160VK Instruction Manual

180mm 1500w
Hide thumbs Also See for SPG-160VK:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPG-160VK and is the answer not in the manual?

Questions and answers

Related Manuals for Ozito SPG-160VK

Summary of Contents for Ozito SPG-160VK

  • Page 2: Specifications

    SPECIFICATIONS - MODEL NO. SPG-160VK Motor Size: 1500W Input: 230V ~ 50Hz No Load Speed: 1000 – 3000/min Disc Diameter: 180mm (7") Type: Weight: KNOW YOUR PRODUCT 1. Metal Gear Case 9. Rubber Pad 2. Spindle Lock Button 10. 3 Position Side Handle (not shown) 3.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 2 KNOW YOUR PRODUCT………………………………. Page 2 INTRODUCTION………………………………………... Page 4 ELECTRICAL SAFETY…………………………………… Page 4 GENERAL SAFETY INSTRUCTIONS…………………… Page 5 SANDER POLISHER SAFETY WARNINGS…………… Page 7 PREPARATION & SET-UP………………………………. Page 8 OPERATION …………………………………………….. Page 9 MAINTENANCE …………….………………………….. Page 11 CONTENTS ……………………………………………...

  • Page 4: Introduction

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

  • Page 5: General Safety Instructions

    GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 6 GENERAL POWER TOOL SAFETY WARNINGS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

  • Page 7: Sander Polisher Safety Warnings

    SANDER POLISHER SAFETY WARNINGS Hold power tool by insulated gripping surfaces, because the sanding pad may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. Do not use excessively oversized sanding disc paper.

  • Page 8: Preparation & Set-Up

    PREPARATION AND SET-UP Auxiliary Handles There are two auxiliary handles supplied with your tool. A side handle which can be installed in three different positions and a D-shaped handle. Assembling the Side Handle Fig. 1 1. Remove the rubber grommet on the gear case housing. 2.

  • Page 9: Operation

    PREPARATION AND SET-UP (cont.) Attaching and Removing Sanding Pad 1. To attach the sanding pad, screw the sanding pad onto the spindle in a clockwise direction. Fig. 4 2. Depress the spindle lock button (2) to prevent the spindle from rotating. 3.
  • Page 10 OPERATION (cont.) Turning On and Off Turning On Fig. 6 1. To turn the sander polisher on, gently squeeze the on/off trigger switch (6) (Fig. 6). Note: Allow a few seconds for the sander polisher to reach maximum speed. 2. Depress the lock on button (5) to lock sander polisher in the 'on' position for continuous use.

  • Page 11: Maintenance

    Always replace both brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool.
  • Page 12 ACCESSORIES Use only accessories having a maximum operating speed at least as high as the highest “NO LOAD RPM” marked on the tool’s nameplate. DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts /min Revolutions or No load speed reciprocation per minute Regulator compliance mark Double insulated CARING FOR THE ENVIRONMENT...

  • Page 13: Contents

    CONTENTS 1 x SPG-160VK Sander Polisher 2 x Sanding Discs 1 x Rubber Backing Pad 1 x Side Handle 1 x Sanding Pad 1 x Loop Handle 1 x Lambs Wool Bonnet 1 x Instruction Manual OZITO INDUSTRIES PTY LTD...

  • Page 14: Warranty

    If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
