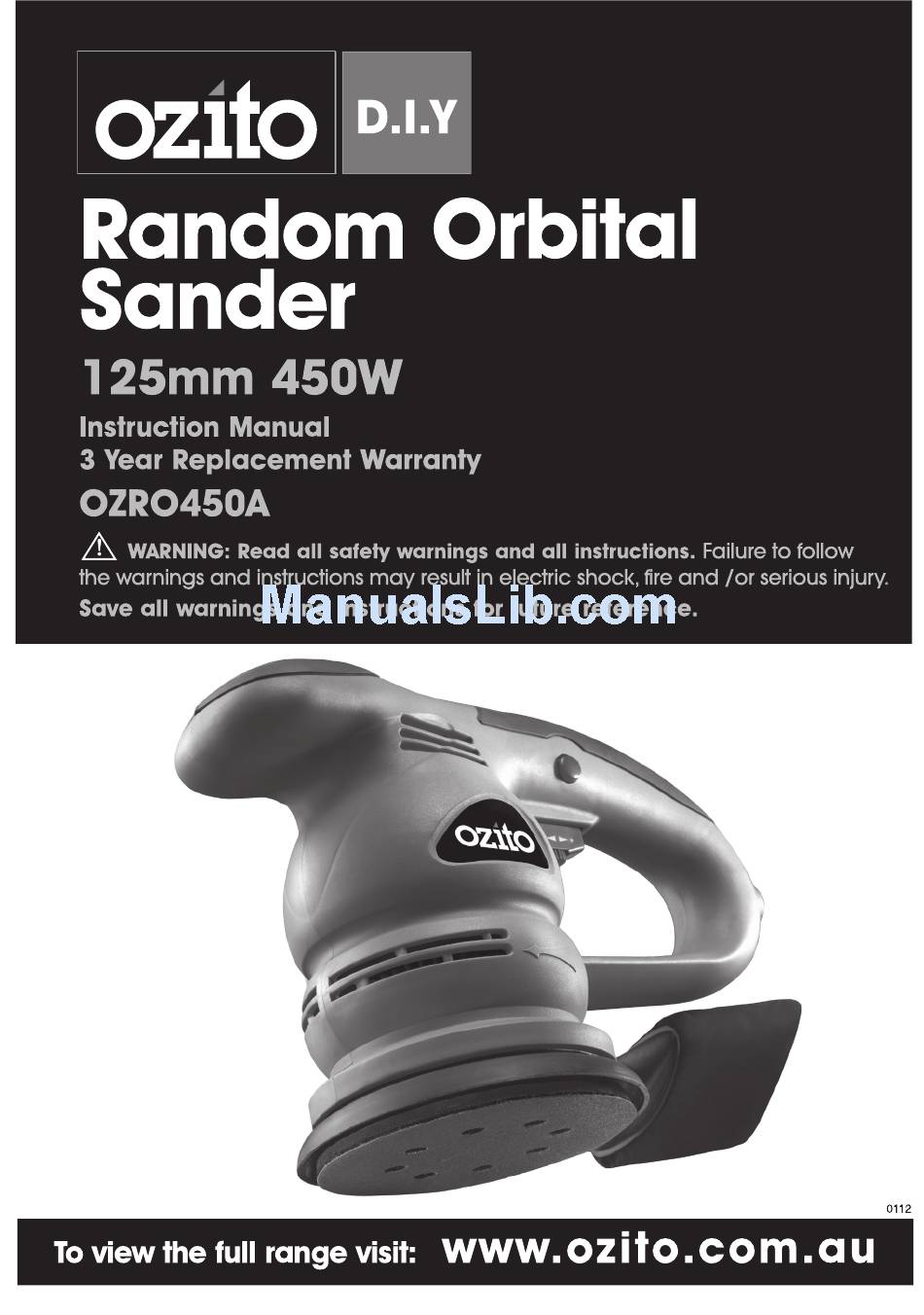

Ozito OZRO450A Instruction Manual

Random orbital sander/ 125mm 450w
Hide thumbs Also See for OZRO450A:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

Advertisement

Table of Contents
loading

Related Manuals for Ozito OZRO450A

Summary of Contents for Ozito OZRO450A

  • Page 2: Specifications

    SPECIFICATIONS - MODEL NO. OZRO450A Motor: 450W Input: 230V ~ 50Hz Disc diameter: 125mm (5”) Paper retention: Hook & loop No load speed: 0 - 12,000 /min Weight: 2.3kg KNOW YOUR PRODUCT 1. Trigger switch 4. Dust bag (not shown) 2.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS……………………………………… Page 1 INTRODUCTION……………………………………….. Page 3 ELECTRICAL SAFETY…………………………………. Page 3 GENERAL SAFETY INSTRUCTIONS………………… Page 4 RANDOM ORBITAL SANDER SAFETY WARNINGS… Page 6 PREPARATION & SETUP……………………………… Page 7 OPERATION……………………………………………. Page 10 MAINTENANCE………………………………………... Page 12 DESCRIPTION OF SYMBOLS………………………… Page 13 CONTENTS……………………………………………..

  • Page 4: Introduction

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

  • Page 5: General Safety Instructions

    GENERAL POWER TOOL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 6 GENERAL POWER TOOL SAFETY INSTRUCTIONS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

  • Page 7: Random Orbital Sander Safety Warnings

    RANDOM ORBITAL SANDER SAFETY WARNINGS • Hold power tool by insulated gripping surfaces, because the sanding pad may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. Recommendation that the tool always be supplied via a residual current device with a rated residual current of 30 mA or less.

  • Page 8: Preparation & Setup

    PREPARATION & SETUP WARNING! Failure to unplug your random orbital sander could result in accidental starting causing possible serious injury. Sanding Sheet Installation Your random orbital sander is equipped with a hook and loop backing pad (6). This uses hook and loop technology, which firmly grips the sanding sheets when applied with moderate pressure.
  • Page 9 PREPARATION & SETUP (cont.) Vacuum adaptor The vacuum adaptor (5) will enable most standard vacuum cleaner hoses to be fitted to the sander for efficient dust extraction. Sandpaper Selection Selecting the correct grit of sandpaper is an important step in achieving optimum results.
  • Page 10 PREPARATION & SETUP (cont.) Precautions to Take When Sanding Paint CAUTION: A dust mask should be worn at all times. Any finish, such as paint or resin, may soften from frictional heat. This will cause the material to rapidly clog the sandpaper, rendering it useless. A heat gun will remove paint more effectively before sanding.

  • Page 11: Operation

    OPERATION CAUTION: Before attempting to use your sander be sure to familiarise yourself with all its operating features and safety requirements. WARNING! The sander should always be disconnected from the power supply when assembling parts, making adjustments, cleaning or when the tool is not in use.
  • Page 12 OPERATION (cont.) Sanding Tips Never force the sander. The weight of the sander supplies adequate pressure, allowing the sandpaper to do the work. Applying additional pressure will slow the motor, rapidly wear the sandpaper, and greatly reduce the sander speed. This will slow the removal rate and produce an inferior quality surface.

  • Page 13: Maintenance

    Always replace both brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool.

  • Page 14: Description Of Symbols

    DESCRIPTION OF SYMBOLS CARING FOR THE ENVIRONMENT Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice. Recycling packaging reduces the need for landfill and raw materials.

  • Page 15: Contents

    CONTENTS 1 x Random Orbital Sander OZRO450A 1 x Dust Bag 1 x Hook and loop sanding sheet 1 x Instruction manual 1 x Vacuum Adaptor OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175...

  • Page 16: Warranty

    If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
