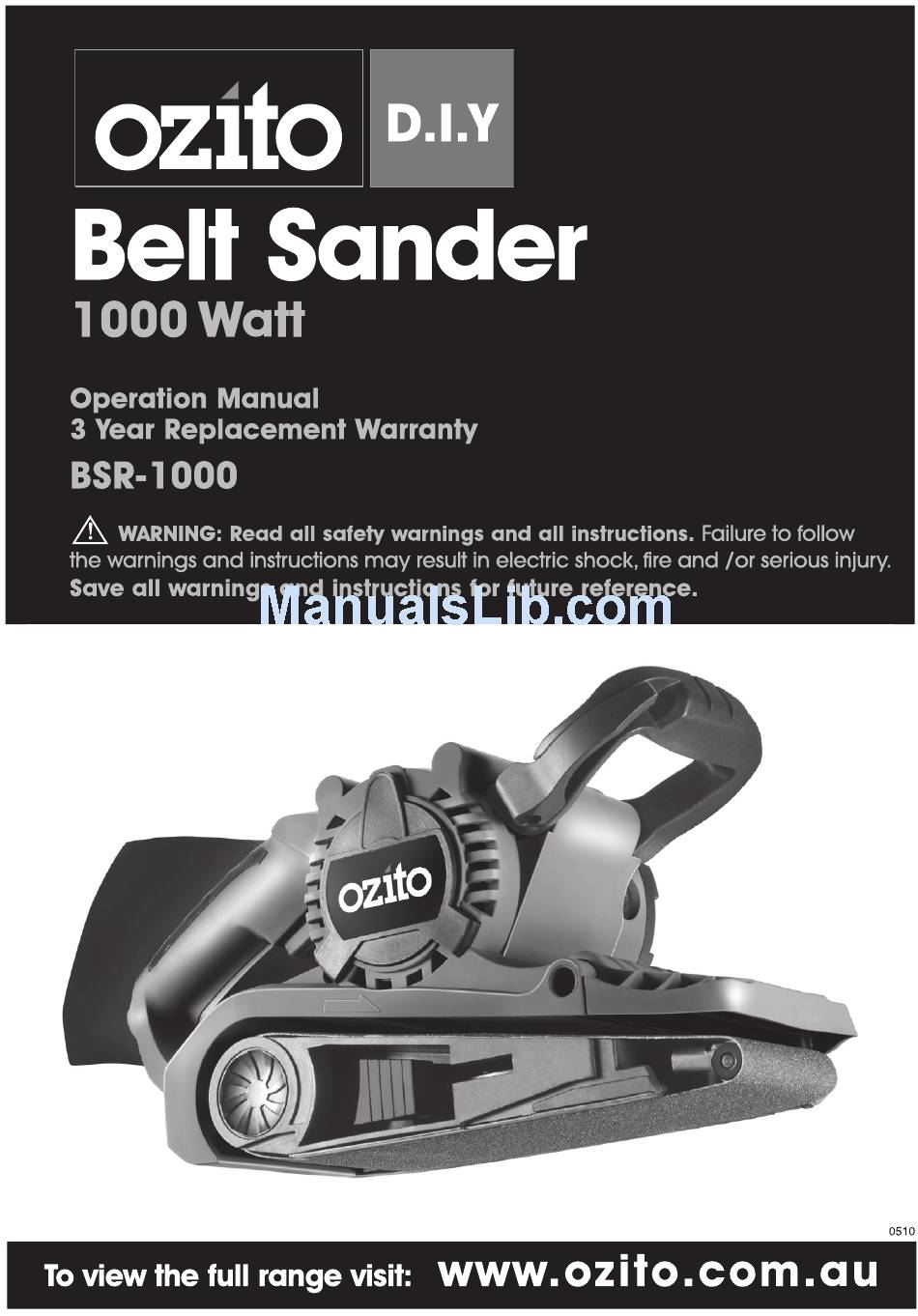

Summary of Contents for Ozito BSR-1000

  • Page 2: Specifications

    SPECIFICATIONS - MODEL NO. BSR-1000 Motor: 1000W Input: 230-240V ~ 50Hz No load speed: 120-360m/min Belt Size: 75mm x 533mm (3” x 21”) Weight (tool only): 3.6kg Know your product : 1. Rear soft grip handle 7. Dust bag 2. On/Off switch 8.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS…………………………………………. Page 1 TABLE OF CONTENTS…………………………………… Page 2 INTRODUCTION………………………………………….. Page 3 ELECRICAL SAFETY………………………………………. Page 3 GENERAL POWER TOOL SAFETY WARNINGS……….. Page 4 BELT SANDERS SAFETY WARNINGS………………….. Page 6 ASSEMBLY………………………………………………….. Page 7 OPERATION………………………………………………… Page 7 MAINTENANCE…………………………………………… Page 11 CARBON BRUSHES………………………………..………...
  • Page 4: Introduction

    The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
  • Page 5: General Power Tool Safety Warnings

    General Power Tool Safety Warnings - Personal Safety Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"...
  • Page 6 General Power Tool Safety Warnings - Personal Safety e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
  • Page 7: Belt Sanders Safety Warnings

    Belt Sander Safety Warnings Hold power tool by insulated gripping surfaces, because the belt may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a...
  • Page 8: Assembly

    ASSEMBLY Attaching the Dust Bag to The Belt Sander Attach the dust bag (7) to the belt sander by sliding the plastic dust bag adaptor over the dust ejection port on the left hand side of the belt sander beside the rear soft grip handle (1).
  • Page 9 OPERATION (cont.) TO ADJUST THE ADJUSTABLE FRONT HANDLE To position the adjustable front handle (3) to your comfort zone. Simply pull the lever towards yourself (Fig. 5) and adjust the front handle (3) to one of the 3 positions (Fig. 6). Lock the adjustable front handle (3) into your desired position by returning the lever to it's original position (Fig.7) Fig.
  • Page 10 OPERATION (cont.) Tracking Adjustment Turn the sander upside down and hold it firmly with one Fig. 10 hand. Press the on/off switch (2) to start the power and observe the tracking of the sanding belt. If the belt runs outward, turn the belt tracking adjustment knob (6) clockwise.
  • Page 11 OPERATION (cont.) Sanding Coated Timber Your belt sander will also help remove old paint, varnish or lacquer. However if the coating consists of several layers, remove as much as possible with a paint remover. This will assist in removing the paint faster and not clogging up your belts and belt sander.
  • Page 12: Maintenance

    Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the saw by an unauthorised person or by mishandling of the saw.
  • Page 13: Spare Parts

    SPARE PARTS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. Most common spare parts listed below Spare Part Part No. Front Wheel Assembly SPBSR1000-13A Brush Holder Cap (pair) SPBSR1000-07 Carbon Brushes (pair) SPBSR1000-08A...
  • Page 14: Contents

    Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Belt Sander BSR-1000 1 x Dust Bag 1 x Sanding Belt 1 x Instruction manual...
  • Page 15: Warranty

    PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
