Ozito FSR-3000 Instruction Manual

Ozito FSR-3000 Instruction Manual

Advertisement

Quick Links

FILE
SANDER
260W
INSTRUCTION MANUAL
SPECIFICATIONS
Input:
230-240V ~ 50Hz
Power:
260W
Belt Speed:
330-550m/min
Belt Size:
13 x 457mm
IP Rating:
IP20
Weight:
1.15kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be replaced in accordance
with the terms of this warranty. Warranty excludes consumable
parts, for example: sanding belt, carbon brushes etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WHAT'S IN THE BOX

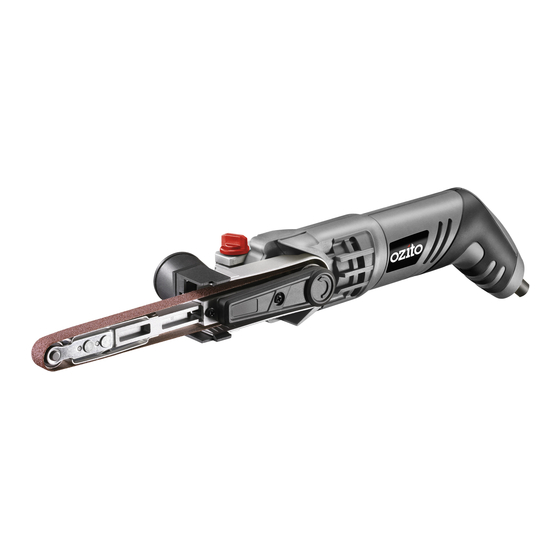

File Sander
2 x Sanding Belts
Dust Extraction
Adaptor
FSR-3000
1016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSR-3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ozito FSR-3000

  • Page 1 Weight: 1.15kg Dust Extraction ozito.com.au Adaptor FSR-3000 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law. WARRANTY YOU MUST RETURN THE PRODUCT...
  • Page 2: Know Your Product

    KNOW YOUR PRODUCT SETUP & PREPARATION FILE SANDER 1. SANDING BELT 1 Front Belt Roller 5 On/Off Switch 2 Rotating File Arm 6 Rotating Arm Screw WARNING: ENSURE THE TOOL IS SWITCHED OFF AND 3 Sure Grip Rear Handle 7 Belt Tensioning Button DISCONNECTED FROM THE POWER SUPPLY BEFORE 4 Variable Speed Dial PERFORMING ANY OF THE FOLLOWING STEPS.
  • Page 3 2. SANDING BELT & DUST EXTRACTION 3. ROTATING FILE ARM Adjusting the File Arm Angle Removing the Sanding Belt 1 Screw the rotating arm 1 Push the front belt screw anti-clockwise roller towards the to allow the arm to body of the tool, until it rotate clicks into place.
  • Page 4: Operation

    Check your work piece often. The sander is capable of removing material rapidly, especially with coarse paper. • Do not sand on one spot for too long. The sander’s rapid action may remove too much material, creating an uneven surface. FSR-3000...
  • Page 5: Maintenance

    Always replace both carbon brushes at the same time. Sandpaper Selection Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the sander by an unauthorised person or by mishandling of the Selecting the correct grit of sandpaper is an important step in achieving optimum sander.
  • Page 6: Electrical Safety

    Replace the extension lead if damaged or defective. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.
