REMOVAL-INSTALLATION: FIRE WALL

GENERAL, REFERENCES AND REQUIREMENTS
Task may only be performed by an organization or individual trained and entitled to carry out 'Line Maintenance'!
Engine cowlings must be removed, see
SPECIAL TOOLS AND CONSUMABLE MATERIALS
None
PRECAUTIONS AND SAFETY MEASURES
PROCEDURES
Removal
NOTE: The removable part actually consists of two parts joint by connecting bolts which, in
most cases, do not need to be separated at removal or installation.
1 Remove air intake box.
2 Remove 24 x attachment bolt with plastic washer.
3 Carefully pull out fire wall - removable part(s).
Installation
5 Install fire wall in reverse order (work steps 3 to 1) using moderate torque.
ILLUSTRATIONS
MMM-CV-E_16-06-13
Manufacturer
Maintenance Manual
52-00-00 4-1

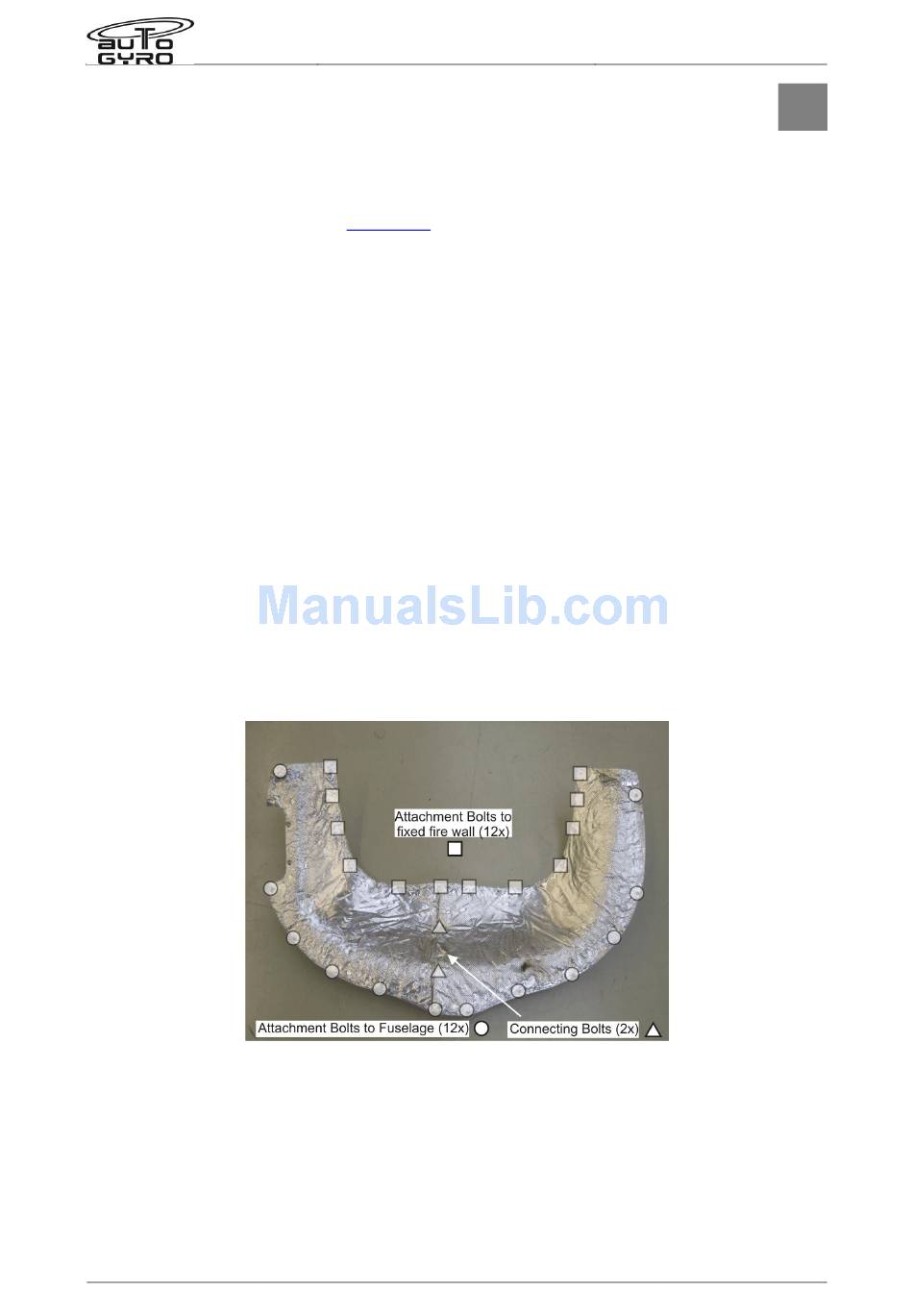

Fig. 1 - Fire Wall - removable part(s)
