PARTS LIST
Fig. Pos. Description
IVO installation kit
IVO-end position indicator
ILLUSTRATIONS

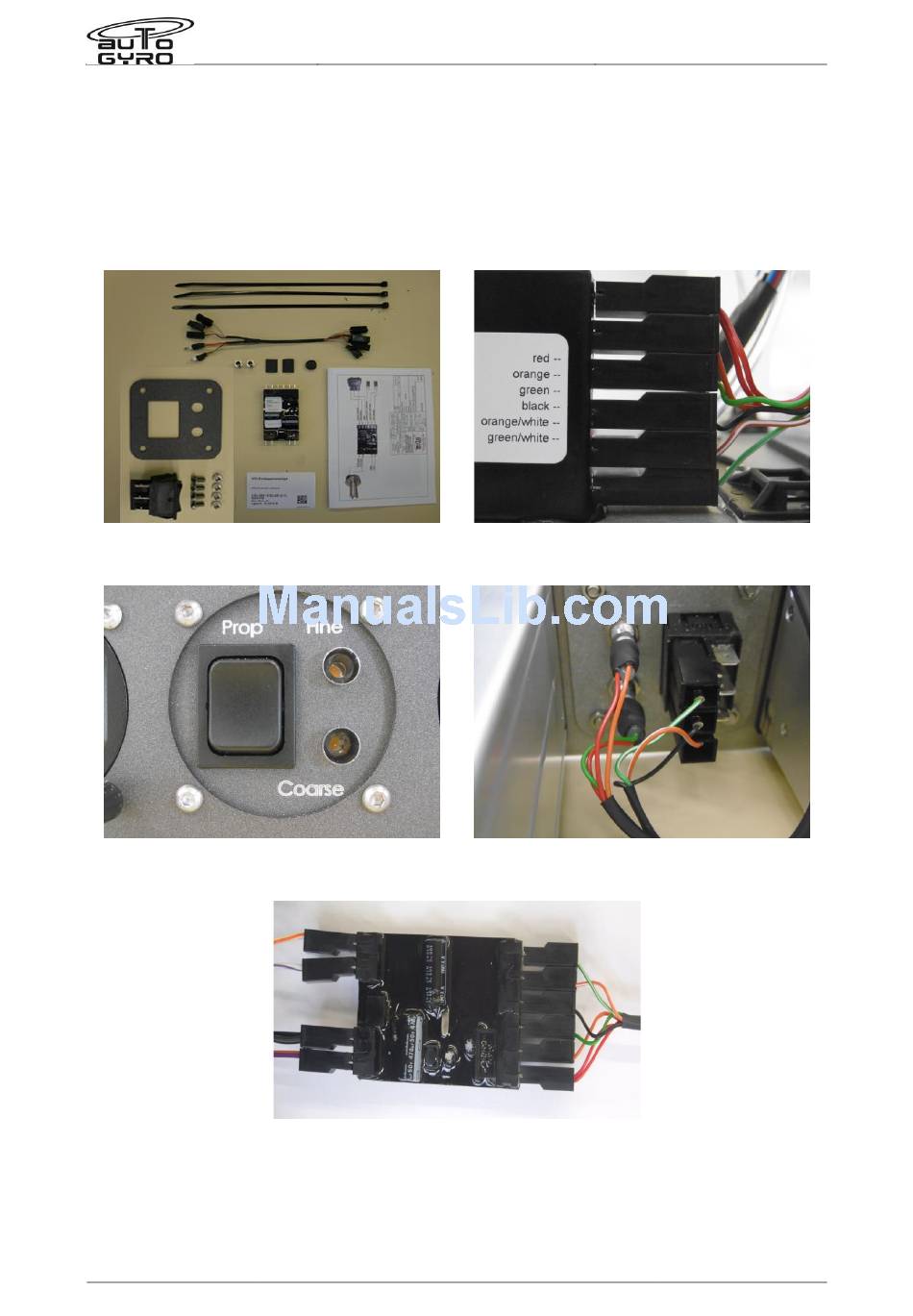

Fig. 1 - Contents of the Kit
Fig. 3 - Rocker Switch and LEDs
MMM-CV-E_16-06-13
Manufacturer
Maintenance Manual
PC PIT
L1 24-00-00-V-34771
L1 24-00-00-V-34759
Fig. 2 - Pin assignment of wiring harness
Fig. 4 - Rocker Switch and LEDs - seen from behind
Fig. 5 - Control Board
Part E - 61-10-00 8-2
AutoGyro
Cavalon
Remark
Page 2 of 2
