Disassembly Rotor - Teetering Parts (Effectivity: Rs Ii) - AUTO GYRO CAVALON Manufacturer Maintenance Manual

PARTS LIST
Fig. Pos. Description
1 1 shoulder bolt M8 37/12
1 1-5 M8x60 Rotor blade bolt 8.8 DIN 610
1 2 shoulder bolt M8 40/12
1 3 shoulder bolt M8 43/12
1 4 shoulder bolt M8 46/12
1 5 M8x60 Rotor blade bolt 8.8 DIN 610
1 6 U9/20
1 7 Rotorhub II
1 8 U8
1 9 M8 Si
1 10 Clamping profile blade
ILLUSTRATIONS
MMM-CV-E_16-06-13
Manufacturer
Maintenance Manual

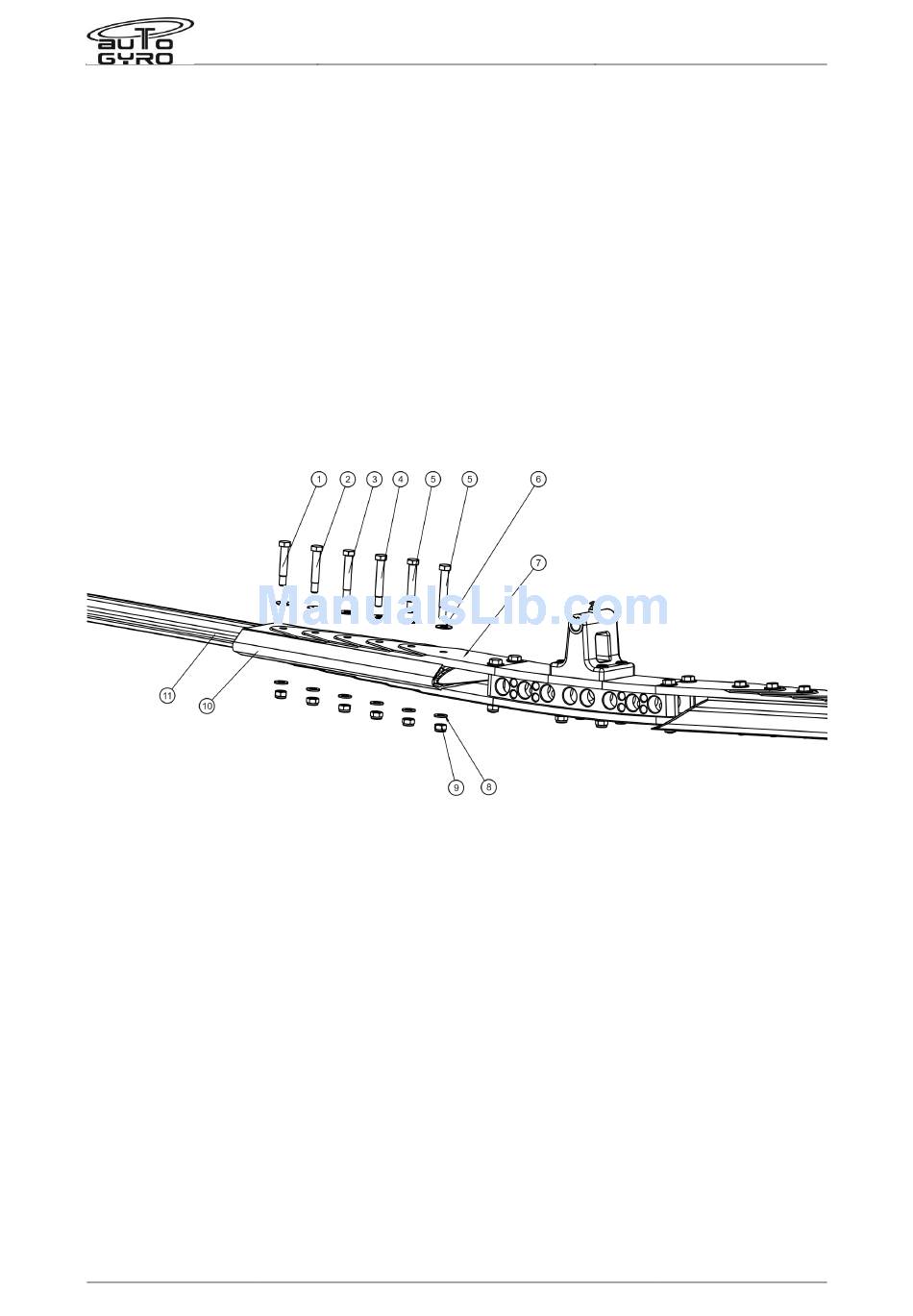

Fig. 1 - Disassembly rotor - teetering parts (Effectivity: RS II)
Part E - 62-11-00 4-2
PC PIT Remark
L0 62-00-00-S-33324
L0 62-00-00-V-20661
L0 62-00-00-S-33324
L0 62-00-00-S-33324
L0 62-00-00-S-33324
L0 62-00-00-V-20661
L0 62-00-00-S-33324
L1 01-00-00-V-31793
L0 62-00-00-S-33324
L0 62-00-00-S-33324
L1 01-00-00-V-31793
AutoGyro
Cavalon
Page 2 of 2
