Planning a Switched Network
2-20
If one of the ports connecting to a common Ethernet segment is not configured
to operate in feeder mode, the switch does not use the LattisSpan forced feeder
detection process to determine which feeder port will be active. In this case, the
port that is not operating in feeder mode (port is configured for auto mode) is
designated the active feeder port, regardless of the prioritized attributes of the
port (see Figure 2-6).
key
(10 Mb/s half-duplex)
Active feeder link
(10 Mb/s half-duplex)
Standby feeder link

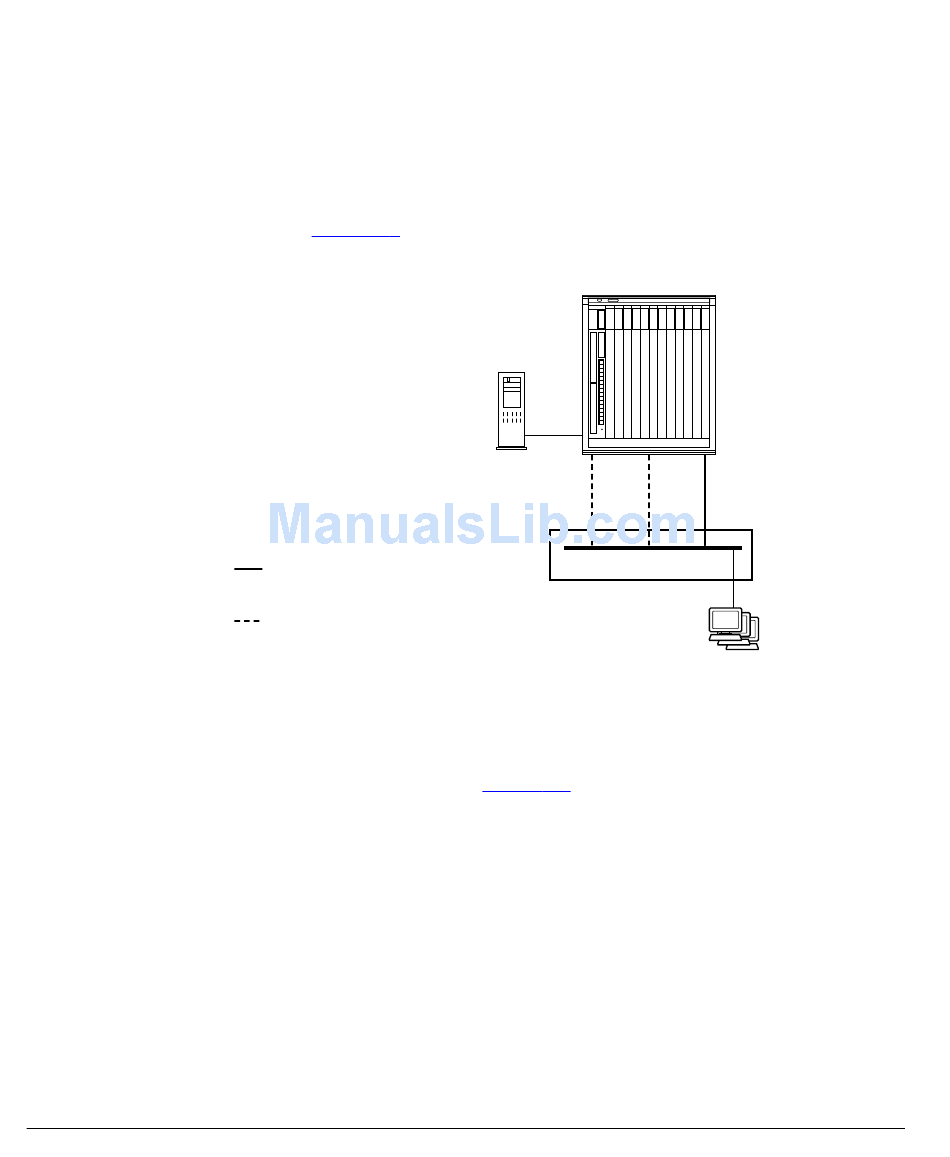

Figure 2-6. Sample configuration: auto port overrides forced feeder ports
If the configuration shown in
mode, port 1would be designated the active feeder port. Port 1 would be
designated the active feeder port because it has the lowest port number—the
port ID attribute is used to determine the highest priority port. Ports 2 and 3 are
designated standby feeder ports. However, port 3 is operating in auto mode, so
it is designated the active feeder port, and ports 1 and 2 are designated standby
feeder ports.
Model 58000 switch
Server
Port 1 Port 2 Port 3
Ethernet segment
Figure 2-6 had all ports configured for feeder
Workstations
