Summary of Contents for Leuze HS 6508
-

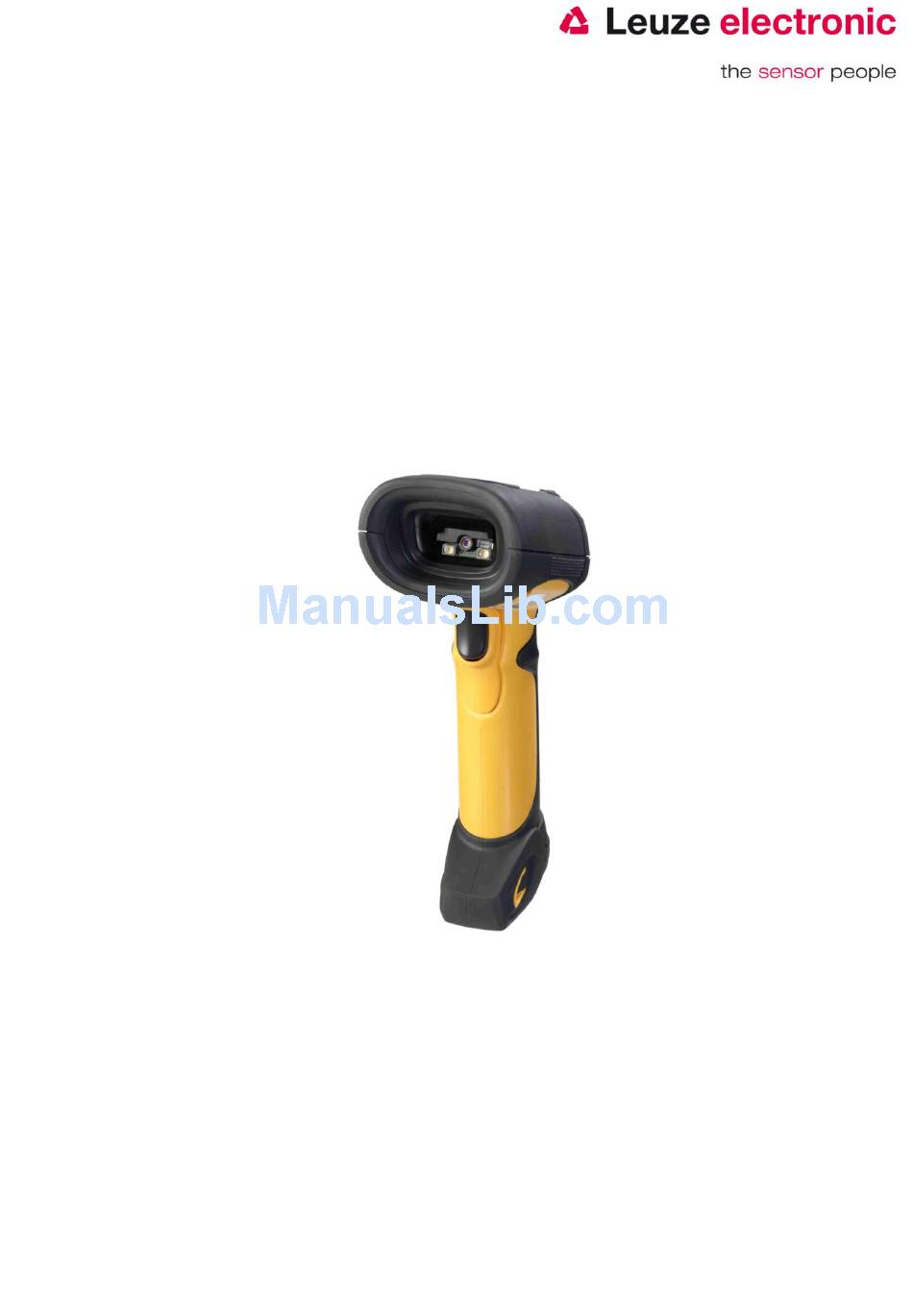

Page 1: Quick Start Guide
HS 6508 2D-Code Handscanner Quick Start Guide Version 1.1... -
Page 2: Table Of Contents
Preamble Congratulations on your purchase of one of the most powerful hand-held scanner for decoding direct marked 2D-Codes. This document is intended for information about the handling and use of the HS 6508 from Leuze electronic. The most important information that is needed for operation is explained. Furthermore, even explains the main types of connections and presented the programming using the codes. - Page 3 : ................18 NFORMATION TO ARAMETERIZATION YOU WILL FIND IN ..............................18 ROUBLESHOOTING OVERVIEW TYPES AND ACCESSORIES ......................19 ........................20 ONNECTION TO EUZE MULTINET MA 200 ......................20 ONNECTION TO IELDBUSES WITH Quick Start Guide HS 6508 Page 3...
-
Page 4: Delivery Hs 6508 Xx
Delivery HS 6508 xx Handheldscanner HS 6508 DPM Leaflet for Quick Start Parts The model designation is on the Top panel Connection for cable References to standards are located on the bottom side Quick Start Guide HS 6508 Page 4... -
Page 5: Installation
- please refer to the instruction manual of your computer. Connect the cable from HS 6508 The following illustrations show the steps required to install the cable on the scanner are shown, which are described below. -
Page 6: How To Scan
Testing the Scanner The adjacent bar code (code 39) is for testing the scanner, The module size is 0.5 mm (20 mil) Quick Start Guide HS 6508 Page 6... -
Page 7: Technical Data
Clear to send Request to send Not connected PIN Power supply Signal Description Inner VCC IN 5 Volt DC Outer Ground The right power supply for the HS 6508 (100-230V/50-60Hz) is the article no. 50120428. Quick Start Guide HS 6508 Page 7... -
Page 8: Kb Ps2-1 Hs65X8 Part-No. 50120438
101,6 Note: Note that the real reading distances are still influenced by factors such as labeling, quality printing, scanning angle, printing contrast etc. and therefore may differ from those given here reading distances. Quick Start Guide HS 6508 Page 8... -
Page 9: Reset The Hs 6508 To Factory Settings
A second option is to configure the hand scanner with USB and RS232 interface using the PC program ESP. This program lets you download and install from our website www.leuze.de. With the program settings can be made and transmitted to the hand-held scanner. The configuration can also be stored, so that later it can be reused. -
Page 10: Hs 6508 On The Pc Serial Port
HS 6508 on the PC serial port With KB 232-2 HS65x8 Part-No. 50120434 Required Parts: 50120442 HS 6508 DPM 50120434 KB 232-2 HS65x8 50120428 NT HS6508 Coiled cable CBA-R02-C09PAR has a length of 2.8 meters (Stretched). The pin assignment of the 9 pin D-sub connector (female) can be found on page 7... -
Page 11: Hs 6508 At Ma 200I
HS 6508 at MA 200i RS 232-Data Transmission with 9600 Baud, 8 Data bit, 1 Stopbit, No Parity, Postfix CR/LF. Required parts: 50120442 HS 6508 DPM 50120436 KB 232-2 HS65x8 50113397 KB JST-HS-300 50112893 MA 204i Profibus Gateway 50112892 MA 208i... -
Page 12: Hs 6508 At Ma 21
Terminal in MA 21: Brown (RXD) White (TXD) Blue (GND) (VCC) Black (GND) bare (shield) (PE) Please connect the HS 6508 according to the figure below. Parameterization For connection to MA21 in default Quick Start Guide HS 6508 Page 12... -
Page 13: Hs 6508 At Ps2-Interface
HS 6508 at PS2-Interface In this chapter, the operation of the HS 6508 in keyboard wedge mode is described. In this mode, a PC keyboard is emulated. The downloaded data is written directly to the currently active program. Thus, the data can be processed in all standard programs. -
Page 14: Hs 6508 At Usb-Interface (Keyboard-Emulation)
HS 6508 at USB-Interface (Keyboard-Emulation) In this chapter, the operation of the HS 6508 in USB keyboard wedge mode is described. In this mode, a PC keyboard is emulated. The downloaded data is written directly to the currently active program. Thus, the data can be processed in all standard programs. -
Page 15: Hs 6508 At Usb-Interface (Com-Port-Emulation)
HS 6508 at USB-Interface (COM-Port-Emulation) In this chapter, the operation of the HS 6508 is described as a serial interface to USB. In this mode, a COM port is emulated. The scanned data is sent to a new COM port. The driver allows you to emulate this COM interface, you can download on our website www.leuze.de. -
Page 16: Code 2/5 Interleaved
The check digit validation will be switched off again, please scan code. This check digit should be also transferred is to scan the following bar code. The check digit is not transferred, please scan code. Quick Start Guide HS 6508 Page 16... -
Page 17: Data Transmission With Suffix Enter
If the data can be transmitted, but an enter character (or CR / LF or newline) is missing, you can with the following codes it can be added. Scan all codes in the printed order please. Quick Start Guide HS 6508 Page 17... -
Page 18: More Information To Parameterization You Will Find In
4. Verify that the interface cable is securely attached to the handle of the scanner. To do this, loosen the screws (at HS 6508) to the end cap of the handle with an appropriate tool. Remove the wire tie and pull out the cable. -
Page 19: Overview Types And Accessories
PS2-Kabel (spiral 2,8m) / 50120438 PS2-cable for (colied 2,8 m) CBA-K02- C09PAR 50120428 Netzteil für HS 6508 PWRS-14 Power supply for HS 6508 000-256R für/for RS 232 Kabel (5 Volt DC) BT Wallholder HS65x8 50120444 11-66553 -06R Wandhalter Kunststoff Wall holder Plastic... -
Page 20: Connection To Leuze Multinet Plus
Connection cable MA 21 to Rs232-Connector Part-No. 500 35 421 Leuze electronic GmbH+Co.KG Postfach 1111 In der Braike 1 D-73277 Owen / Teck Tel +49 (07021) 573-0 Fax +49 (07021) 573199 E-mail: info@leuze.de http://www.leuze.de TD_HS6508_en_50121458.doc 11.2012 Quick Start Guide HS 6508 Page 20...
