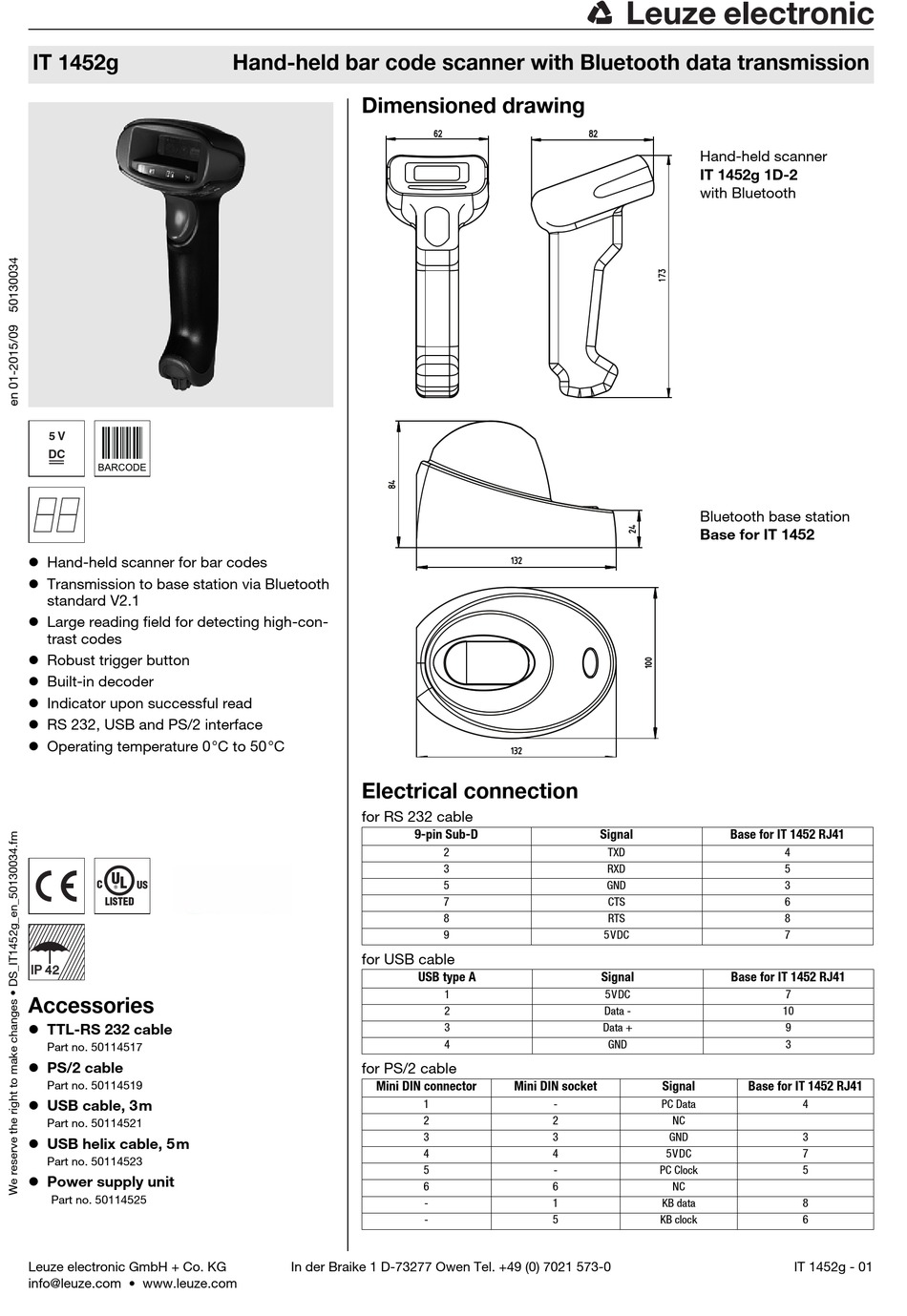

Leuze it 1452g Manual

Specifications and description
IT 1452g
5 V
DC
 Hand-held scanner for bar codes
 Transmission to base station via Bluetooth
standard V2.1
 Large reading field for detecting high-con-
trast codes
 Robust trigger button
 Built-in decoder
 Indicator upon successful read
 RS 232, USB and PS/2 interface
 Operating temperature 0°C to 50°C
U L
C US
LISTED
IP IP 42 42
Accessories
 TTL-RS 232 cable
Part no. 50114517
 PS/2 cable
Part no. 50114519
 USB cable, 3m
Part no. 50114521
 USB helix cable, 5m
Part no. 50114523
 Power supply unit
Part no. 50114525
Leuze electronic GmbH + Co. KG
info@leuze.com • www.leuze.com
Hand-held bar code scanner with Bluetooth data transmission
Dimensioned drawing
Electrical connection
for RS 232 cable
for USB cable
for PS/2 cable
Mini DIN connector
In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0
62 62
9-pin Sub-D
2
3
5
7
8
9
USB type A
1
2
3
4
Mini DIN socket
1 -
2 2
3 3
4 4
5 -
6 6
- 1
- 5
82 82
Hand-held scanner
IT 1452g 1D-2
with Bluetooth
Bluetooth base station
Base for IT 1452
Signal Base for IT 1452 RJ41
TXD
RXD
GND
CTS
RTS
5VDC
Signal Base for IT 1452 RJ41
5VDC
Data -
Data +
GND
Signal Base for IT 1452 RJ41
PC Data
NC
GND
5VDC
PC Clock
NC
KB data
KB clock
4
5
3
6
8
7
7
10
9
3
4
3
7
5
8
6
IT 1452g - 01
