EAS39P1103

INSTRUMENT FUNCTIONS

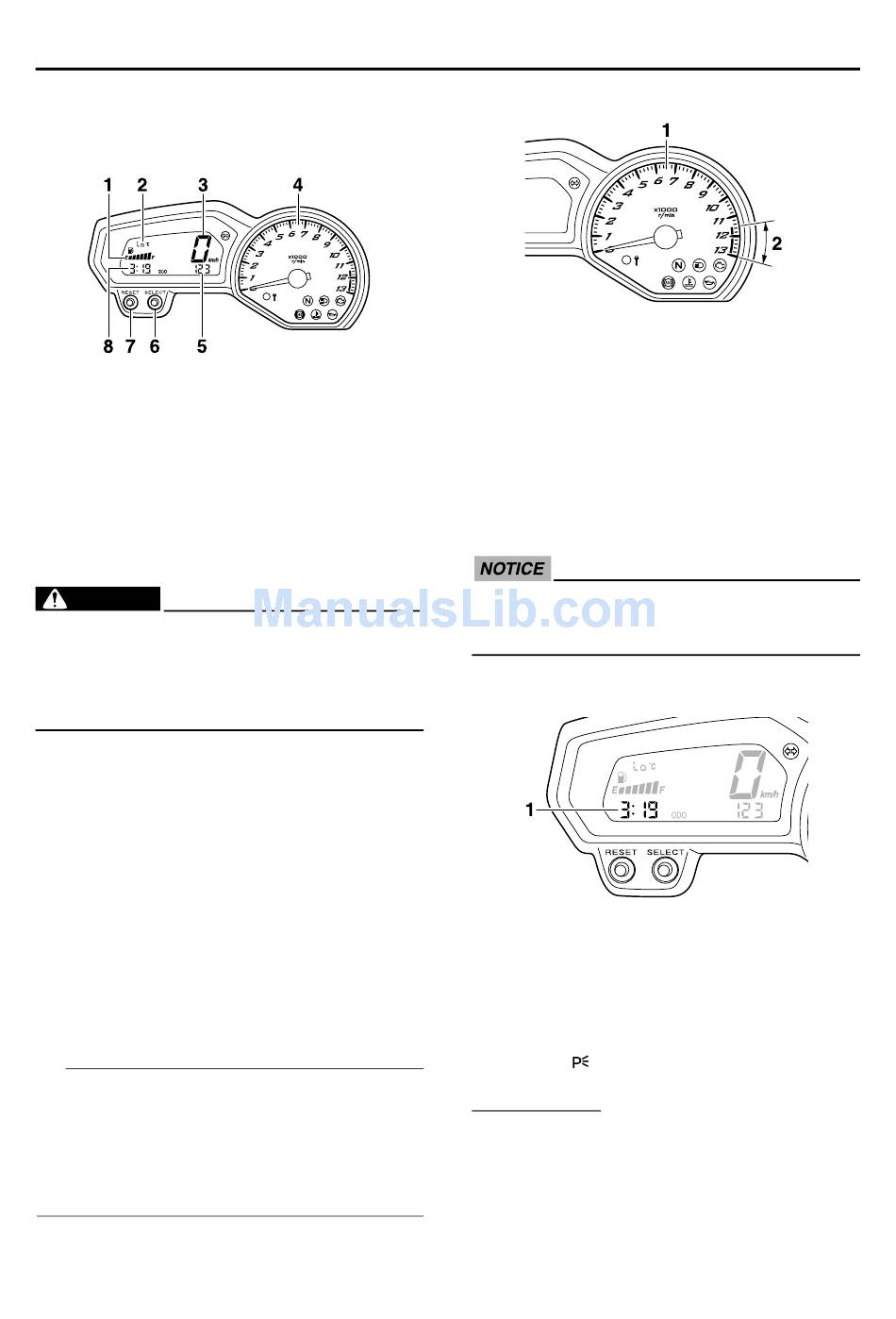

Multi-function meter unit

1. Fuel meter
2. Coolant temperature display
3. Speedometer

4. Tachometer

5. Odometer/tripmeter/fuel reserve tripmeter
6. "SELECT" button
7. "RESET" button

8. Clock

EWA12422
WARNING
Be sure to stop the vehicle before making
any setting changes to the multi-function
meter unit. Changing settings while riding
can distract the operator and increase the
risk of an accident.
The multi-function meter unit is equipped with
the following:
• A speedometer
• A tachometer
• An odometer
• Two tripmeters (which show the distance
traveled since they were last set to zero)
• A fuel reserve tripmeter (which shows the
distance traveled since the left segment of
the fuel meter started flashing)
• A clock
• A fuel meter
• A coolant temperature display
• A self-diagnosis device
TIP
• Be sure to turn the key to "ON" before using
the "SELECT" and "RESET" buttons.
• For the U.K. only: To switch the speedometer
and odometer/tripmeter displays between
kilometers and miles, press the "SELECT"
button for at least one second.
Tachometer
1. Tachometer
2. Tachometer red zone
The electric tachometer allows the rider to
monitor the engine speed and keep it within
the ideal power range.
When the key is turned to "ON", the tachome-
ter needle will sweep once across the r/min
range and then return to zero r/min in order to
test the electrical circuit.
ECA10031
Do not operate the engine in the tachome-
ter red zone.
Red zone: 11500 r/min and above
Clock
1. Clock
The clock displays when the key is turned to
"ON". In addition, the clock can be displayed
for 10 seconds by pushing the "SELECT" but-
ton when the main switch is in the "OFF",
"LOCK" or " " position.
To set the clock
1. Turn the key to "ON".
2. Push the "SELECT" button and "RESET"
button together for at least two seconds.
3. When the hour digits start flashing, push
the "RESET" button to set the hours.
4. Push the "SELECT" button, and the minute
digits will start flashing.
1-5
FEATURES
