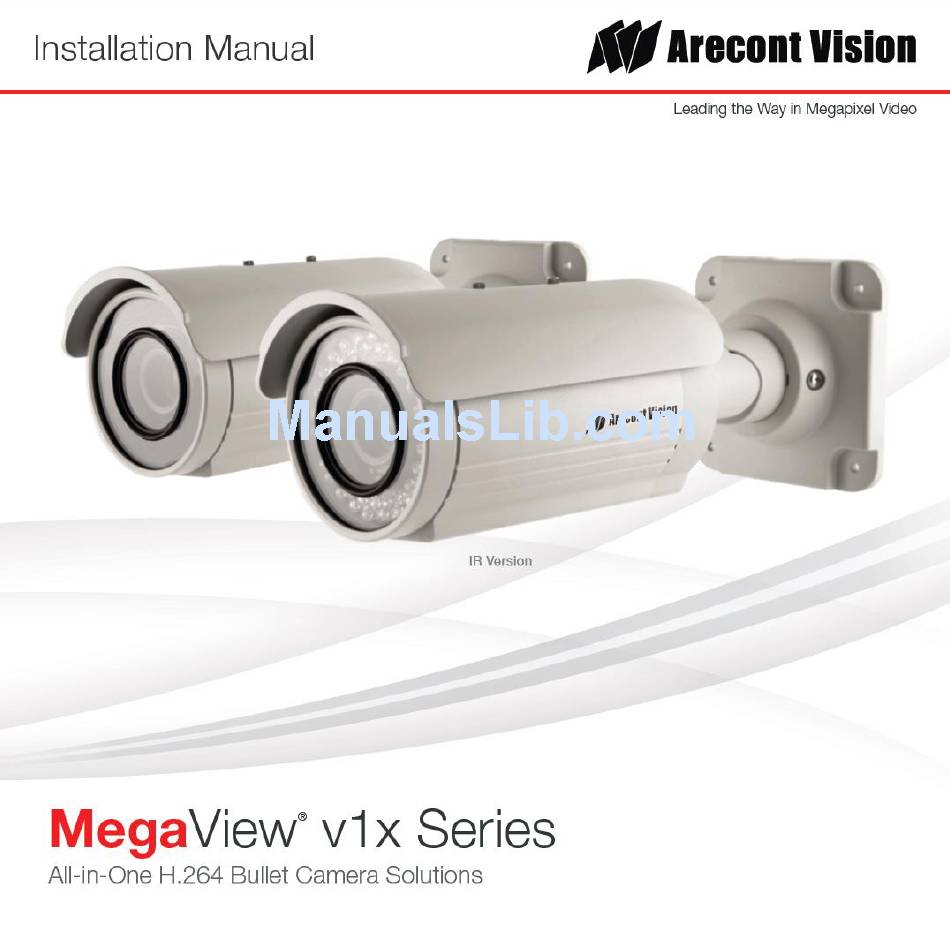

- Page 1 Arecont Vision MegaView v1x Installation Manual 0 | P a g e...
- Page 2 Arecont Vision MegaView v1x Installation Manual MegaView v1x Installation Manual Inside the box: Mounting the Camera: Arecont Vision MegaView Pack of four (4) wood screws and four (4) Remove camera and hardware from the box. dry wall anchors C. Security L-key...
- Page 3 Arecont Vision MegaView v1x Installation Manual Image 3 Align the holes in the camera with the CAUTION: Only adjust the screws with an prepared holes on the mounting surface. arrow pointing to them on the bracket base Attach the camera to the mounting surface...
- Page 4 Arecont Vision MegaView v1x Installation Manual Optional: Connecting External Power for NOTE: Both the input and the output are electrically isolated from the rest of the camera’s electrical Camera, IR Illuminator and Fan. circuitry via general-purpose photo couplers. The To use the external power, 12-48VDC or...
- Page 5 Arecont Vision MegaView v1x Installation Manual Replacing the IR LED board: Unscrew glass ring (Image 9) Use Phillips screwdriver to remove IR LED board (Image 10) To replace IR LED board, unplug cable and replace new IR LED board (Image 11)
-
Page 6: Installation Best Practices
Arecont Vision MegaView v1x Installation Manual Installation Best Practices Adding Teflon thread sealing Wind Vinyl electrical Begin Installation tape on all cables tape to all male threads Connect ¾” NPT conduit pipe to junction box adapter Make sure position of conduit... -
Page 7: Important Note
Arecont Vision MegaView v1x Installation Manual Important Note Correct installation for outdoor application of MegaView™ v1x Correct Installation: Incorrect Installation: Please install the MegaView™ v1x with Attaching the MegaView™ v1x directly onto a junction box adapter (SV-JBA) to avoid risk of... - Page 8 Arecont Vision MegaView v1x Installation Manual MegaView™v1x Junction Box Adapter (SV-JBA) Installation Instruction Inside the box: hardware suitable for the mounting surface. Junction Box Adapter Pack of four (4) machine screws C. One double sided hex key D. Pack of four (4) wood screws and four (4)
- Page 9 Arecont Vision MegaView v1x Installation Manual MegaView™v1x Electrical Box Adapter (SV-EBA) Installation Instructions Inside the box: Electrical Box Adapter Pack of four (4) machine screws Image 18-1 Single gang box MegaView™ v1x Bracket holes Image 18-2 Double gang box Image 17 Not included but needed: ...
- Page 10 Arecont Vision MegaView v1x Installation Manual MegaView™v1x Pole Mount Adapter (AV-PMA) Installation Instructions Inside the box: Run the Ethernet cable and outside power cable (if necessary) through the Junction Box Pole Mount Adapter Adapter and connect to MegaView™ pigtail 2x Small Steel Straps cable.
- Page 11 Arecont Vision MegaView v1x Installation Manual MegaView™v1x Corner Mount Adapter (AV-CRMA) Installation Instructions Inside the box: NOTE: Use silicon or water pipe seal tape to make sure no water leakage between conduit Corner Mount Adapter pipe and junction box adapter.
