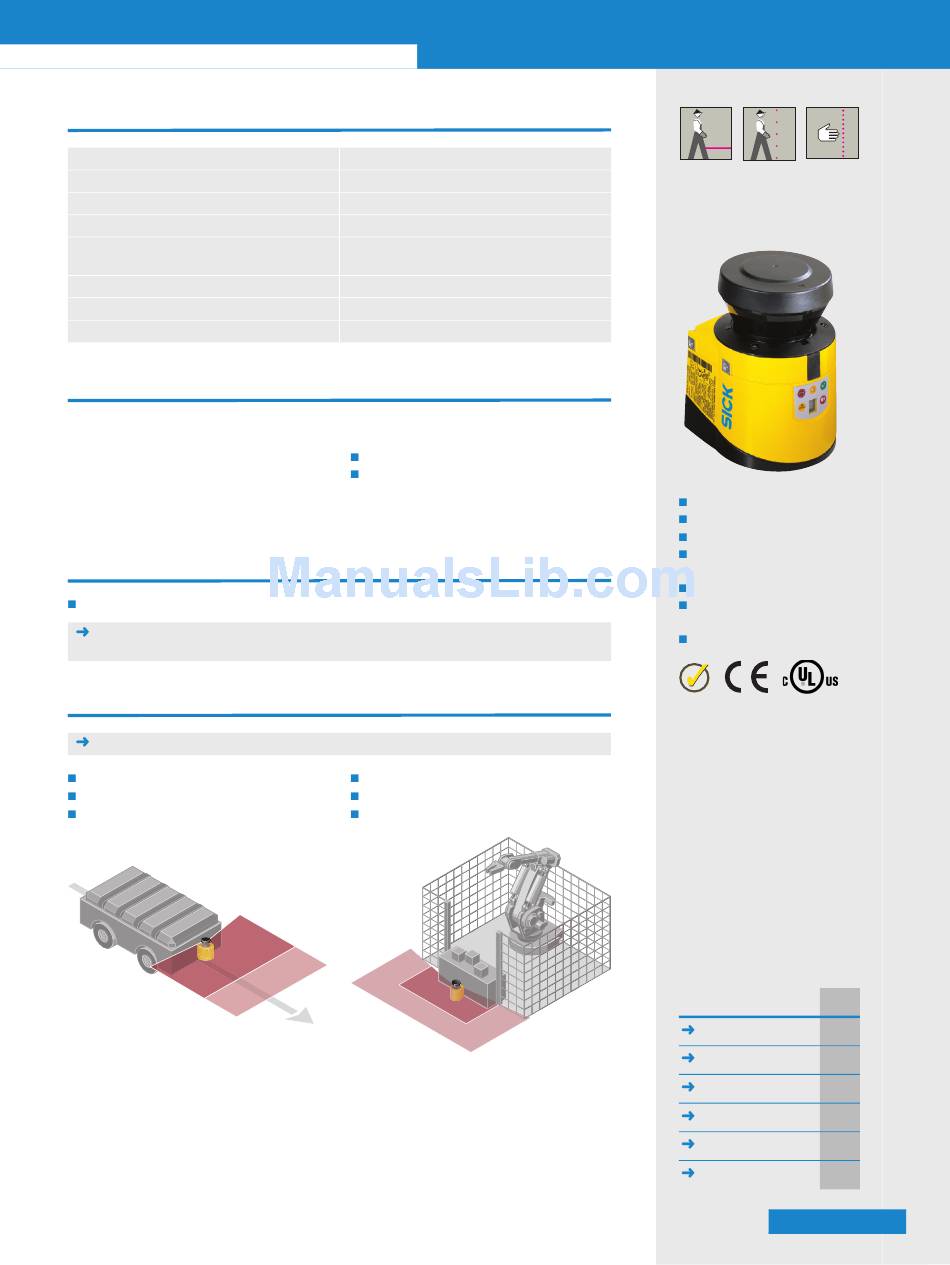

SICK S300 Standard Manual

Safety laser scanner

Overview of technical specifications

Protective field range
Warning field range
Number of field sets
Scan angle
Resolution
Response time
Type
Safety integrity level

Product description

High-end safety at entry level price
The low-cost solution for simple require-
ments with one protective field and war-
ning field.
Ideal for the horizontal and vertical protec-
tion of hazardous areas and areas of
access.
In-system added value
Supports integration with multiple safety control solutions
For safety system combinations, see appendix "Sensor systems and safe control solutions
from SICK"
Applications
You can find more applications using the application finder at www.sickusa.com/applications
Freely moving transport vehicles
Production lines
Machining centres
Hazardous area protection on an AGV with one
direction of travel
7024240
WS/WE 12-2
2 m
8 m (at 30 % reflectivity)
1
270°
30 mm, 40 mm, 50 mm, 70 mm,
selectable
80 ms
Type 3 (IEC/EN 61496-3)
SIL2 (IEC/EN 61508)
With adjustable object resolution as well as
configurable "contour as reference."
1 protective and warning field
New multi-system "Configuration & Diag-
nostic Software" CDS
Entry/Exit stations
Robot cells
Overhead monorail transport systems
Hazardous area protection on a robot cell
© SICK, Inc., USA. All rights, including changes to technical specifications
and or to the equipment without prior notification, are reserved.

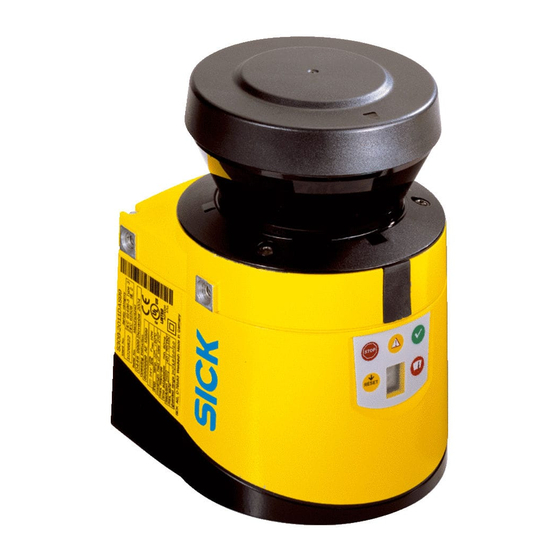

S300 Standard
Extremely compact design
Scanning angle 270°
Selectable resolution
Certified for vertical and
horizontal use
7-segment display
Integrated external device
monitoring (EDM)
Stand-by input
IEC 61508
Compliant
Further information Page
Ordering information C-58
Technical specifications C-58
Dimensional drawings C-59
Connection diagrams C-61
Accessories C-62
