7-3. EXTERNAL PROGRAMMING

If you need to use your own Software Control program from a
PC or automation, the device allows communication through an
ASCII code protocol. All commands can be found on our website:
www.analogway.com
All Analog Way products equipped with an RS232 input are
compatible with Crestron, AMX, Medialon, and most major control
systems. TCP/IP control ports are also available on most Analog
Way products, as standard or as options.
To control an OPS300
(PC Software Control - Touch Pad Controller...) follow the indications
below:
1. First establish an RS-232 communication between the Remote
Control Software and the OPS300, in order to setup the LAN
parameters of the product.

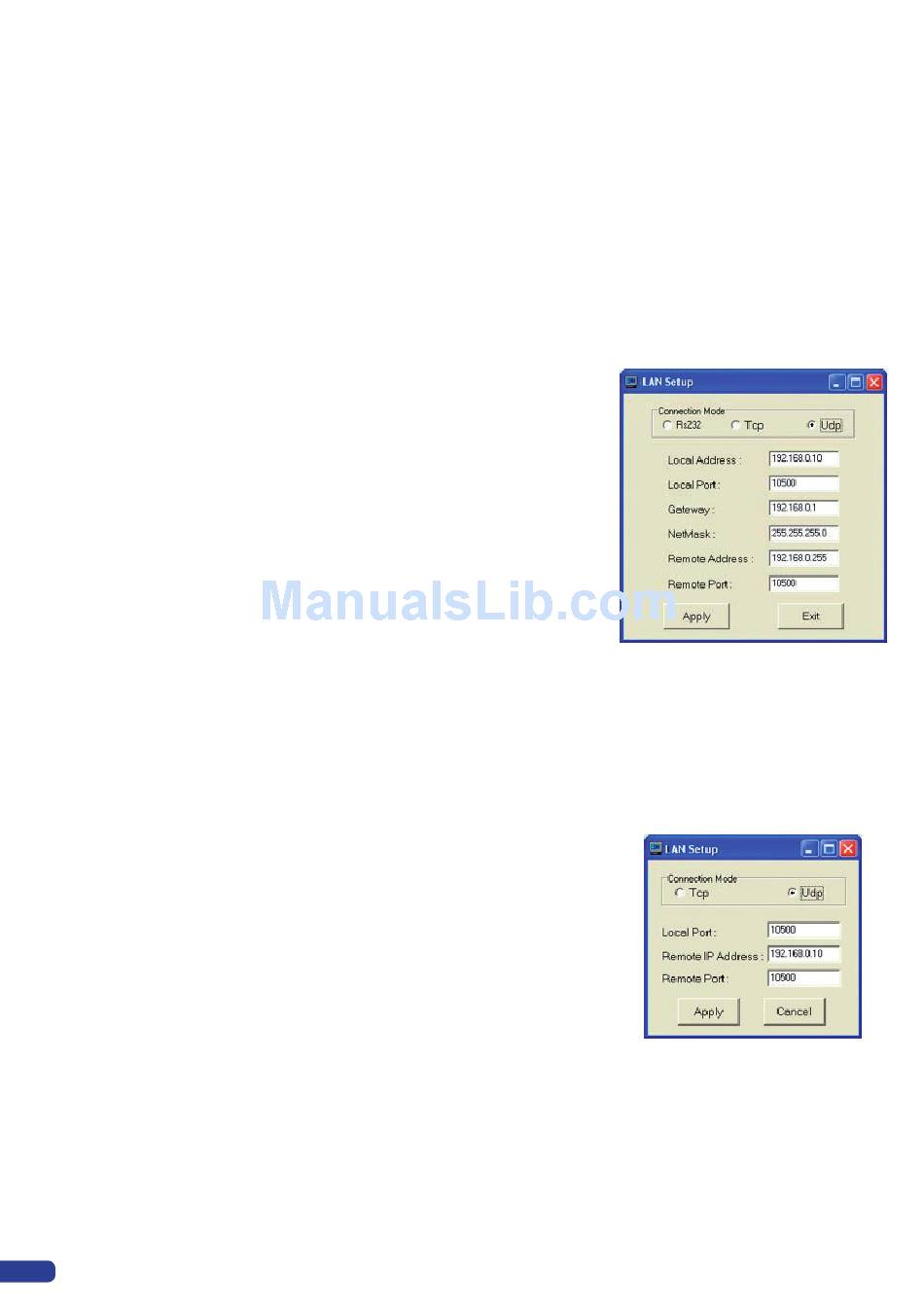

2. In the "Control" - "OPS300 LAN Setup" menu, configure the
connection of the OPS300
and Remote Addresses as well as the Local and Remote Ports in
concordance with your Network.
3. Configure the TCP/IP address of your External Remote Controller.
In example: 192.168.000.001
4. Setup the UDP connection of your External Remote Controller in
concordance with your Network.
In example on the Remote Software in the "Control" - "RS232/LAN
Setup" - "LAN/Setup" menu.
5. Setup the LAN parameters in UDP mode in the "Console" - "LAN
Setup" menu.
In example: RK Address:
Remote Address:
Gateway Address:
RK Port:
Remote Port:
Netmask:
6. Select the LAN communication port in the remote controller
console - "RS232/LAN port" menu.
7. You can now control your
Remote Controller.
74
product with an External Remote Controller
product in UDP mode and setup the Local
192.168.000.002
192.168.000.010
192.168.000.001
10500
10500
255.255.255.000
OPS300 product with an External
