Source output configuration

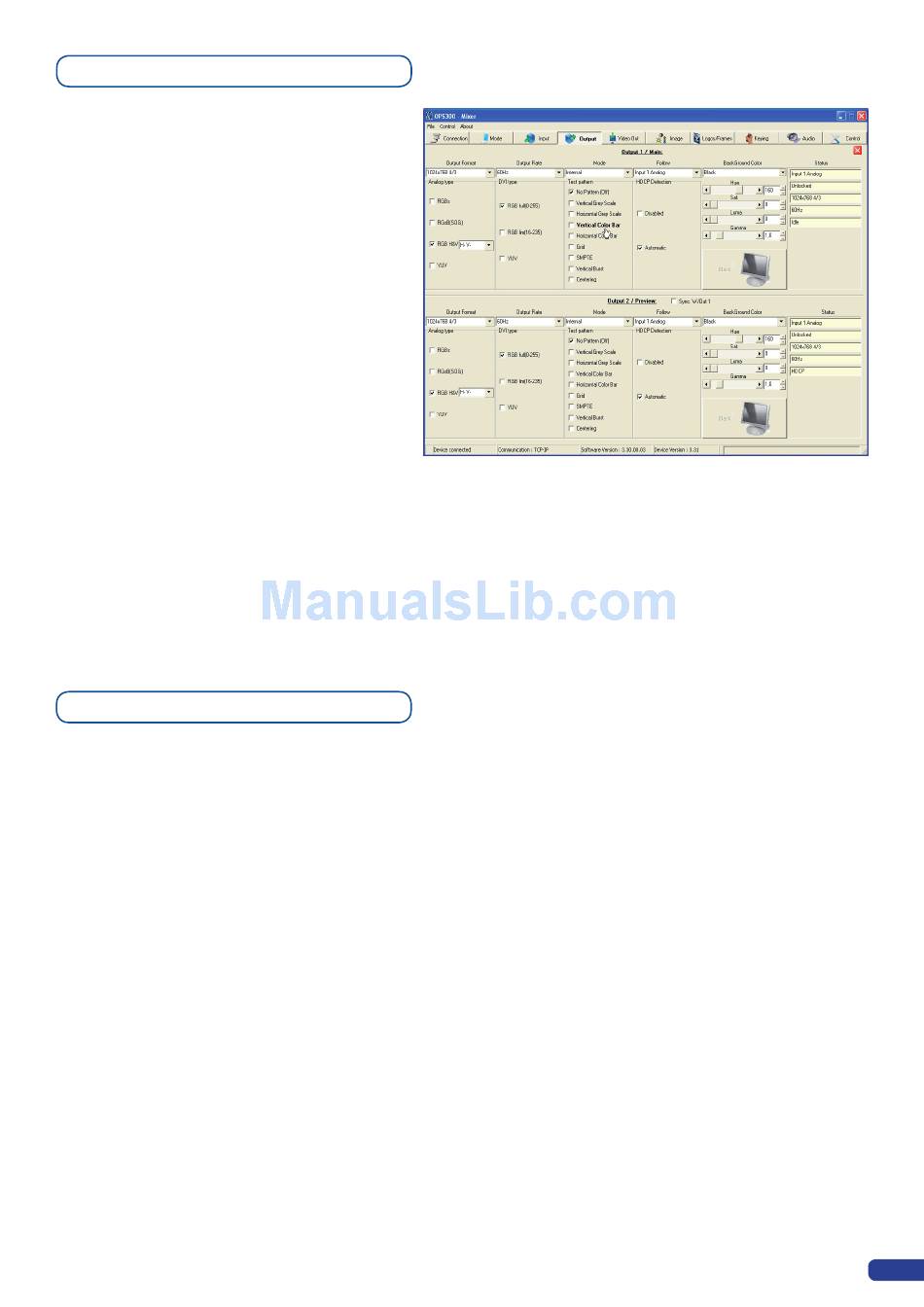

1. Click on the "Outputs" tab of the RCS.
2. Select the type of plug which is connected to
outputs #1 & #2 of your
in the appropriate field in Analog Type or DVI
Type for both Main and Preview outputs.
3. Select the appropriate output format and
output rate.
4. Click on the "Outputs" tab to return to the
main screen.
The Output menu also allows you to
generate test patterns. The test patterns
available through the Output menu let you
quickly and reliably setup your projectors.
* NOTE * : be sure to turn the test pattern off to display your sources again.

Working with PIPs

OPS300
The allows users to manipulate 2 PIPs (Picture In Picture) which you can move, size, crop or zoom,
apply transparency or transitions to.
OPS300
by clicking
