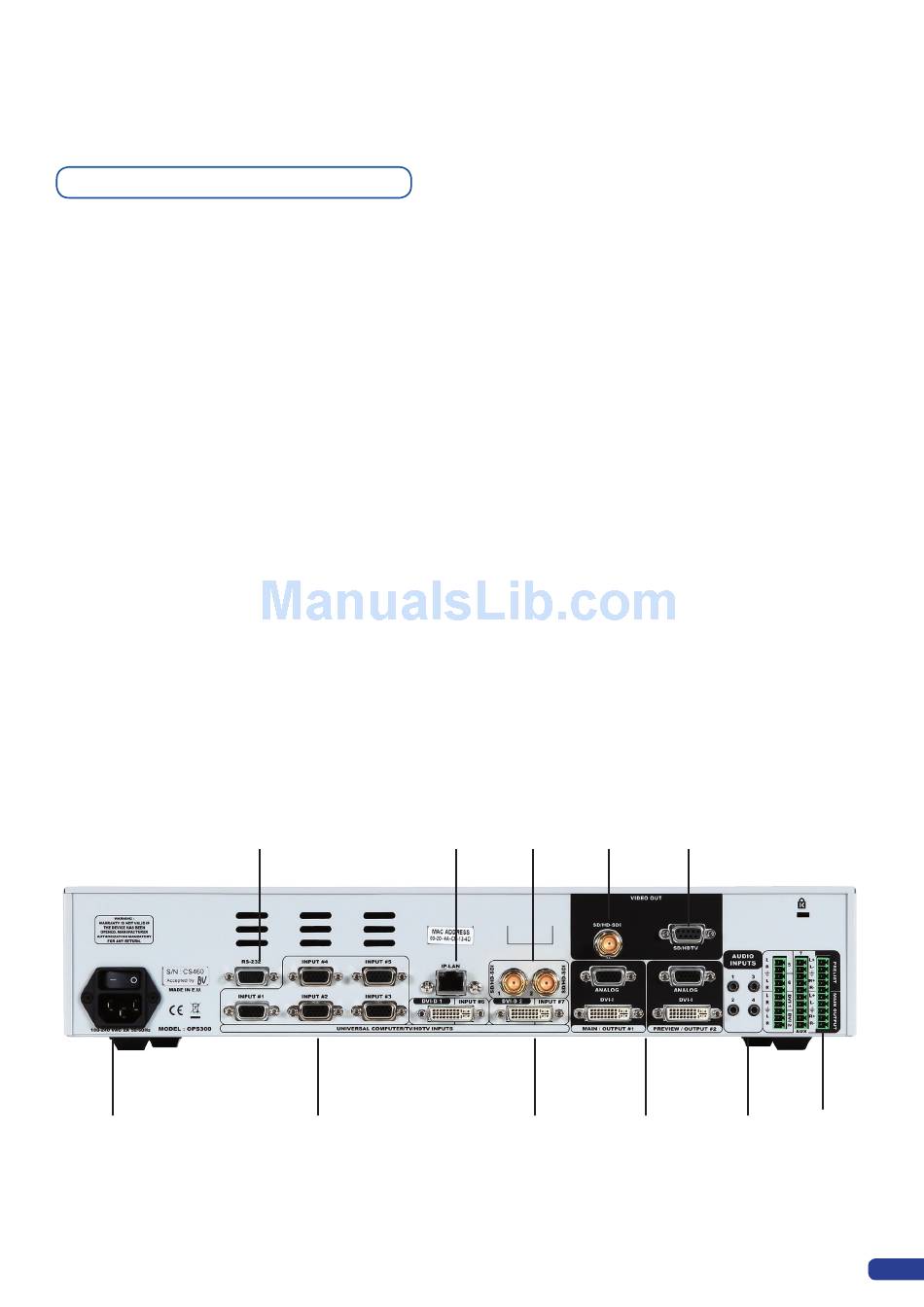

3-2. THE OPS300 REAR PANEL
Overview
The
OPS300
rear panel is equipped with 11 universal digital and analog inputs. Inputs #1 through #5 (3) are
universal analog inputs. Inputs #6 & #7 share a DVI-D signal and a universal analog signal (plug the shipped
Analog Way DVI/HD15 adaptor cable to use DVI-D and analog signals simultaneously).
The Main and Preview (6) outputs will allow for the
OPS300
high resolution digital and analog signals to be
viewed on screen and/or on a preview monitor (see also Output Specifications in this chapter).
The extra Video Out card installed on the OPS300, can be used for recording, broadcasting or previewing
purposes in a wide range of formats for maximum compatibility with industry viewing or recording equipment.
Finally, the audio in and output card will let users trigger audio with any source, accurately balance or tweak
sound sources and outputs.
1 : AC outlet and ON/OFF switch
2 : IP-LAN connector
3 : Universal Analog inputs
4 : DVI-I Input (DVI-D + Analog)
5 : HD-SDI inputs
6 : Main and Preview outputs
7 : SD-HD/SDI output
8 : SD/HDTV output
9 : Audio inputs
10 : Audio outputs
11 : RS232 connector
11
2
5
7
8
1
3
4
6
9
10
21
