5-2. WORKING WITH THE RCS

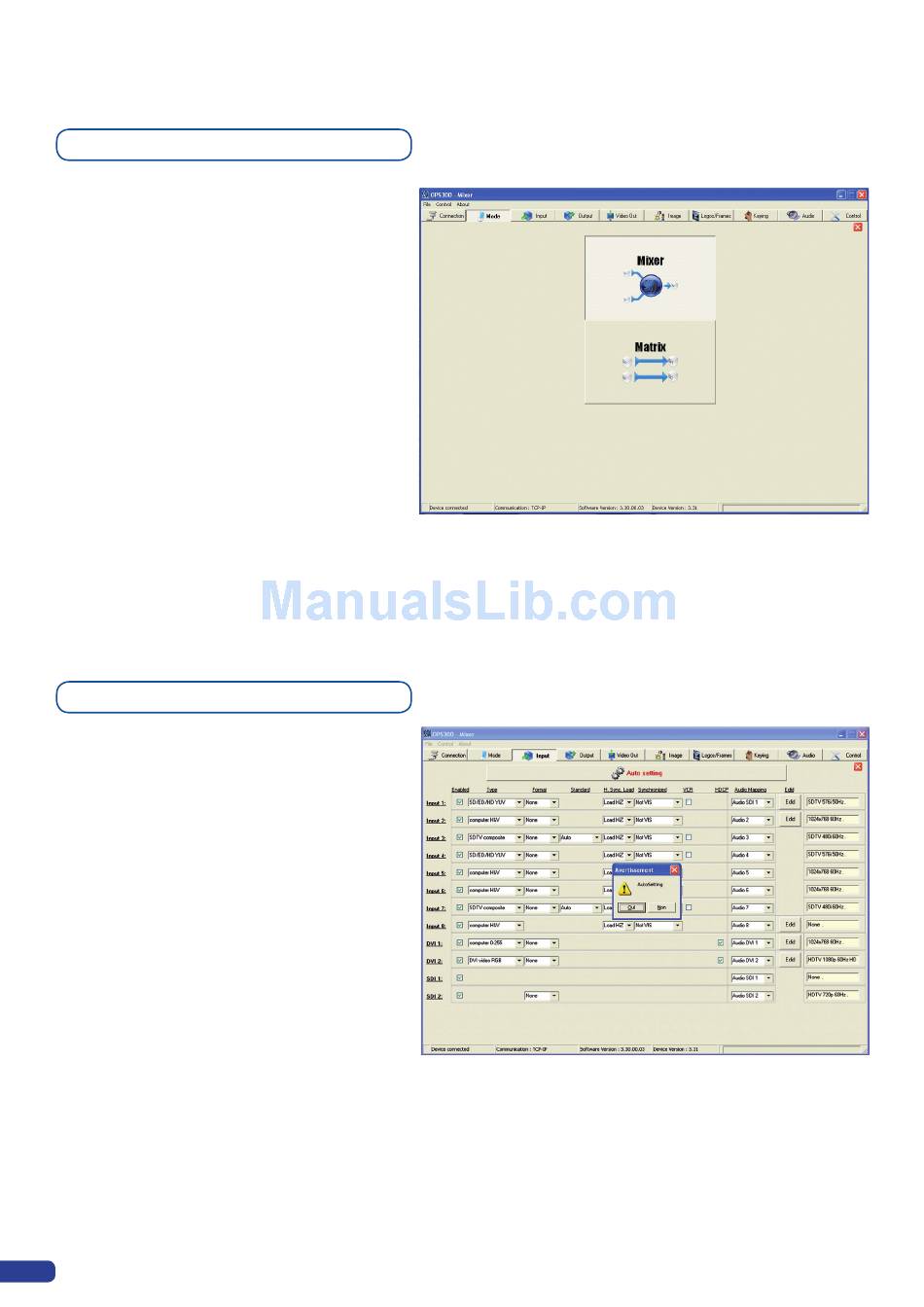

Operating Mode

To choose the operating mode you want your
OPS300
to work in, simply click the "Mode" tab,
then select the desired mode by clicking on one
of the two mode buttons (Mixer or Sync Matrix).
* NOTE * : for further details on different modes,
restrictions and settings, please refer to the
"Working with the OPS300" chapter, p.29, and
the "Home Menu" chapter,

Source input configuration

Once your OPS300
first step in properly configuring your machine is
to individually select and parameter your inputs.
1. Click on the "Inputs" tab of the RCS.
2. In the Plug column of the "Input" page, select
the plug type by clicking the appropriate
field.
3. Activate the input in the Enabled column if it
is not.
4. In the scroll-down menu of the Type column,
select the signal type connected to that plug.
5. Repeat steps 2 to 4 for all sources connected
to the rear panel of your OPS300.
6. Click on the "Inputs" tab to return to the main screen.
* NOTE * : autosetting mode allows an easy setup of sources. Sometimes problems might appears with
analog or HDCP sources.
64
p.28.
is wired up to your PC, the
