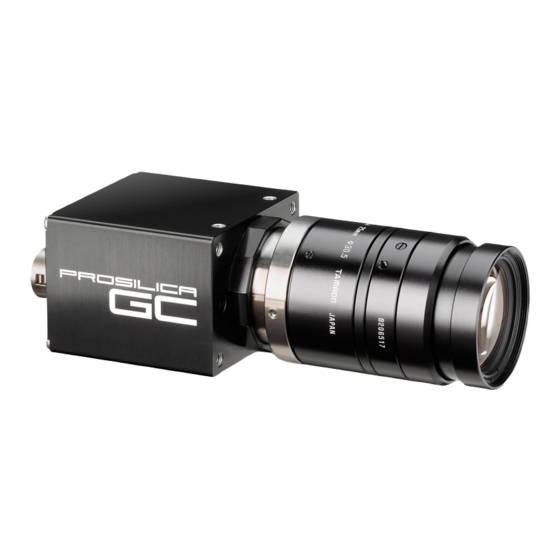

Prosilica GC at a glance Prosilica GC at a glance Prosilica GC cameras have a Gigabit Ethernet (GigE) interface and work with GigE hardware and cable lengths up to 100 m. Prosilica GC cameras are GigE Vision V1.2 and GenICam V1.2.1 compliant. Applied standards GigE Vision®...
Contact us Contact us Connect with Allied Vision by function https://www.alliedvision.com/en/meta-header/contact.html Find an Allied Vision office or distributor https://www.alliedvision.com/en/about-us/where-we-are.html Email info@alliedvision.com support@alliedvision.com Sales offices Europe, Middle East, and Africa: +49 36428-677-230 North and South America: +1 (877) USA-1394 Asia-Pacific: +65 6634-9027...
Document history and conventions This chapter includes: • Document history • Layout styles and symbols used in this manual Prosilica GC Technical Manual V2.2.0...
Updated the exposure control values in the Specifications chapter Added Vimba SDK link in the Additional references section Updated Allied Vision recommended cabling to Category 6 or higher in the Gigabit Ethernet interface section V2.0.6 2013-Jul-05 Added contact information for Allied Vision Technologies (Shanghai) Co. Ltd.
Page 10
GC1380H, GC1380CH, GC1600H, GC1600CH, GC2450, GC2450C Added Installation chapter Removed image flow chapter and added the diagrams to the Appendix Added new image flow diagram for new Prosilica GC hardware revision D models at the end of the Specifications chapter Updated frame rate information...
You have to follow these instructions to avoid malfunctions. Practical hint This symbol highlights a practical hint that helps to better understand the camera‘s features and functions, and to make better use of it. Prosilica GC Technical Manual V2.2.0...
Page 12
Document history and conventions Further information available online This symbol highlights URLs for further information. The URL itself is shown in blue. Example: https://www.alliedvision.com Prosilica GC Technical Manual V2.2.0...
Safety and regulations § This chapter includes: • General cautions and warnings for Prosilica GC cameras • Information about the legal requirements and restrictions for Prosilica GC cameras based on current and relevant regulations • Particular emphasis has been given to regulations...
This product can be damaged by some volatile cleaning agents. Avoid cleaning the image sensor unless absolutely necessary. Please see instructions on optics cleaning in this document. Allied Vision can clean your camera as a service for you, if necessary. For more information, contact Allied Vision support.
European Economic Area requirements CE and RoHS Allied Vision Technologies declares under its sole responsibility that all standard cameras of the Prosilica GC family to which this declaration relates are in conformity with the following standard(s) or other normative document(s): •...
Other legal notices Trademarks Unless stated otherwise, all trademarks shown in this document of Allied Vision Technologies are brands protected by law. All other product or company names may be trademarks of their respective owners. Warranty The information provided by Allied Vision Technologies is supplied without any guarantees or warranty whatsoever, be it specific or implicit.
Installation and hardware This chapter describes the components required for your vision system including configuring the host computer, Ethernet adapter settings, and connecting your Prosilica GC camera. Prosilica GC Technical Manual V2.2.0...
Installation and hardware Configuring the host computer Allied Vision GigE Vision cameras can operate on 10/100 or Gigabit speed Ethernet adapters. In order to reach the maximum camera frame rate, a Gigabit speed Ethernet adapter with jumbo packet support is required.
Transmit Buffers 256 bytes Default packet size The default packet size of Allied Vision GigE cameras is 8228 bytes. The host network adapter needs to support a packet size of equal or larger size to stream from the camera. Ethernet adapter For desktop systems, use a PCI Express bus Ethernet adapter.
Please contact your Allied Vision Sales representative or your local Allied Vision dealer for information on accessories and lens recommendations: https://www.alliedvision.com/en/about-us/where-we-are.html Downloading camera drivers Allied Vision GigE cameras work with any or all of the following software options. Vimba Viewer or Vimba SDK: https://www.alliedvision.com/en/products/software Third-party software solutions: https://www.alliedvision.com/en/products/software/third-party-libraries.html...
Once you have installed the Vimba Viewer or third-party application to your host computer, you can connect your Allied Vision GigE camera via an Ethernet cable. If your camera is not PoE powered, connect the Hirose cable to power the camera.
Appendix on page 80. Hardware version incompatibility Prosilica GC hardware version D models and firmware are not compatible with Pro- silica GC hardware version A models. Frame memory Normally, an image is captured and transported in consecutive steps. The image is taken, read out from the sensor, digitized and sent over the GigE network.
QE values (@ 448 nm, 529 nm, 632 nm) for color sensors and one measured QE value (@ 529 nm) for monochrome sensors. Prosilica GC Technical Manual V2.2.0...
-10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H) 59 x 46 x 33 mm Table 2: Prosilica GC660, GC660C camera specifications Prosilica GC Technical Manual V2.2.0...
Page 26
For Prosilica GC660 and GC660C (hardware revision D), the image width was changed from 659 to 658. It was changed to 658 so that the color version would image with Vimba when using default values. Table 2: Prosilica GC660, GC660C camera specifications (continued) Prosilica GC Technical Manual V2.2.0...
Figure 3: Frame rate as a function of ROI height plot Height [pixels] Frame rate [fps] Height [pixels] Frame rate [fps] 121.18 226.23 130.23 265.35 142.31 320.82 156.86 405.61 174.32 482.06 197.16 514.37 Table 3: Frame rate as a function of ROI height table Prosilica GC Technical Manual V2.2.0...
-10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H) 59 x 46 x 33 mm Table 4: Prosilica GC1290, GC1290C camera specifications Prosilica GC Technical Manual V2.2.0...
Page 30
GigE Vision Standard V1.2 Camera control standard GenICam SFNC V1.2.1 Regulations CE, RoHS, REACH, WEEE, FCC, ICES Temperature monitoring Available for main board only. Resolution: 0.031; Accuracy: ± 1 °C Table 4: Prosilica GC1290, GC1290C camera specifications (continued) Prosilica GC Technical Manual V2.2.0...
-10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H) 59 x 46 x 33 mm Table 6: Prosilica GC1380H, GC1380CH camera specifications Prosilica GC Technical Manual V2.2.0...
Page 34
GigE Vision Standard V1.2 Camera control standard GenICam SFNC V1.2.1 Regulations CE, RoHS, REACH, WEEE, FCC, ICES Temperature monitoring Available for main board only. Resolution: 0.031; Accuracy: ± 1 °C Table 6: Prosilica GC1380H, GC1380CH camera specifications (continued) Prosilica GC Technical Manual V2.2.0...
-10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H) 59 x 46 x 33 mm Table 8: Prosilica GC1600H, GC1600CH camera specifications Prosilica GC Technical Manual V2.2.0...
Page 38
GigE Vision Standard V1.2 Camera control standard GenICam SFNC V1.2.1 Regulations CE, RoHS, REACH, WEEE, FCC, ICES Temperature monitoring Available for main board only. Resolution: 0.031; Accuracy: ± 1 °C Table 8: Prosilica GC1600H, GC1600CH camera specifications (continued) Prosilica GC Technical Manual V2.2.0...
-10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H) 59 x 46 x 33 mm Table 10: Prosilica GC2450, GC2450C camera specifications Prosilica GC Technical Manual V2.2.0...
Page 42
GigE Vision Standard V1.2 Camera control standard GenICam SFNC V1.2.1 Regulations CE, RoHS, REACH, WEEE, FCC, ICES Temperature monitoring Available for main board only. Resolution: 0.031; Accuracy: ± 1 °C Table 10: Prosilica GC2450, GC2450C camera specifications (continued) Prosilica GC Technical Manual V2.2.0...
Camera feature highlights Allied Vision cameras support a number of standard and extended features. The table below identifies a selection of capabilities of the Prosilica GC camera family. A complete listing of camera features, including feature definitions can be found on the Allied Vision documentation website: •...
Specifications Camera feature comparison Allied Vision cameras support a number of standard and extended features. The table below identifies a selection of capabilities and compares the availability of features in Prosilica GC camera models. A complete listing of camera features, including feature definitions can be found on the Allied Vision documentation website: •...
The number of bits per pixel varies depending on the pixel format selected. The output from frame memory to the GigE interface is dependent on the pixel format GigE Interface selected. GigE Host Figure 18: Image flow diagram for Prosilica GC (hardware version D) cameras Prosilica GC Technical Manual V2.2.0...
Mechanical dimensions This chapter includes: • CAD drawings and dimensions of standard housing models • Sensor position accuracy • Maximum protrusion distance and filter diameter for C-Mount and CS-Mount Prosilica GC Technical Manual V2.2.0...
Mechanical dimensions The Prosilica GC family offers both CCD and CMOS sensor models. CCD cameras utilize additional circuitry required for A/D conversion. As a result, CMOS models offer a shorter mechanical package than CCD models. Prosilica GC cameras are available with different lens mount options. For more information, see the Modular Concept document at: https://www.alliedvision.com/en/support/technical-documentation.html...
Mechanical dimensions Tripod adapter A Prosilica GC camera can be mounted on a camera tripod by using a mounting plate. The same tripod adapter can be used for all models within the Prosilica GC camera family. Prosilica GC tripod adapter...
Locking wrench Please contact your Allied Vision Sales representative or your local Allied Vision dealer to purchase the hexagonal lens adjustment wrench for Prosilica GC cameras with C/CS locking ring (Allied Vision order code 02-5003A). Image to infinity Use a C-Mount compatible lens that allows an infinity focus.
Lens protrusion Front Plate holder Sec on A-A for C-Mount Sec on A-A for C-Mount monochrome cameras color cameras Figure 23: Cross section of typical Prosilica GC assembly with C-Mount Camera Lens protrusion [mm] Camera Lens protrusion [mm] GC650 13.64 GC1290C 12.20...
±400 µm (sensor shift) ±10 µm (optical back focal distance) α ± 1° (sensor rotation) Alignment Optical alignment of photo sensitive sensor area into camera front module (lens mount front flange). Table 15: Sensor position accuracy criteria Prosilica GC Technical Manual V2.2.0...
Mechanical dimensions IR cut filter All Prosilica GC color models are equipped with an infrared block filter (IR cut filter). This filter is employed to prevent infrared light from passing to the sensor. In the absence of an IR filter, images are dominated by red and incapable of being properly color balanced.
This chapter includes: • A general description of the inputs and outputs (including trigger features) • I/O connector pin assignments • I/O block diagrams • A general description of trigger rules such as timing diagram and definitions Prosilica GC Technical Manual V2.2.0...
This section provides information on Gigabit Ethernet interface, inputs and outputs, and trigger features. Accessories Please contact your Allied Vision Sales representative or your local Allied Vision distributor for information on accessories, go to: https://www.alliedvision.com/en/about-us/where-we-are.html Figure 26: Prosilica GC port, interface, LEDs...
The GigE Installation Manual offers detailed instructions for using Prosilica GC cameras. https://www.alliedvision.com/en/support/technical-documentation/prosilica-gc- documentation.html Ethernet adapters See the Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended Ethernet adapters: https://www.alliedvision.com/en/support/technical-papers-knowledge- base.html A standard Ethernet adapter is available for purchase from Allied Vision:...
Cable lengths up to 100 m are supported. The 8-pin RJ45 jack has the pin assignment according to the Ethernet standard (IEEE 802.3 1000BASE-T). Allied Vision recommends using locking-screw cables from Components Express, Inc. for a perfect fit. Visit the CEI product configurator to customize the cable according to your needs.
I/O definition Camera power The Prosilica GC camera family has recently been updated to offer an expanded input power voltage range. The camera serial number is used to differentiate between cameras that offer 5 to 16 VDC and those that offer 5 to 25 VDC.
Trigger Input A relay of the trigger input signal used to “daisy chain” the trigger signal for multiple cameras. Readout Valid when camera is reading out data. Imaging Valid when camera is exposing or reading out. Prosilica GC Technical Manual V2.2.0...
These signals are reserved for future use and should be left disconnected. Video iris output Prosilica GC cameras provide built-in auto iris controls for controlling video-type auto-iris lenses. These lenses are available from many popular security lens companies including Pentax, Fujinon, Tamron, Schneider, etc.
Page 64
Camera interfaces CABLE SIDE CAMERA GND CAMERA GND 12 V POWER CAMERA POWER HIROSE HR10A-10P-12S LENS POWER VIDEO SIGNAL LENS GROUND JEITA CONNECTOR Figure 27: Prosilica GC video iris schematic Prosilica GC Technical Manual V2.2.0...
2.7 K 24 V 1.8 K 4.7 K Figure 28: Prosilica GC opto-isolated user circuit *Cameras with SN: 02-XXXXX-0XXXX, R1 necessary for input greater than 5 V. Cameras with SN: 02-XXXXX-1XXXX, no R1 necessary, 5 to 24 V. Input/Output Input: Incoming trigger must be able to source 10 mA.
OUT 2 OUT 2 (3.3 V RECEIVER) HIROSE HR10A-10P-12S Figure 29: Prosilica GC non-isolated user circuit Input/Output Input: Incoming trigger must be able to source 10 µA, at 3.3 V. Input trigger voltage greater than 5.5 V will damage the camera.
The end of exposure will always trigger the next readout. • The end of exposure must always end after the current readout. • The start of exposure must always correspond with the interline time if readout is true. Prosilica GC Technical Manual V2.2.0...
Page 69
Trigger Jitter can be up to 1 row time since Exposure must always begin on an Interline boundary. For a more detailed description of the trigger concept for advanced users and special scenarios, see the Triggering Concept application note: https://www.alliedvision.com/en/support/technical-papers-knowledge- base.html Prosilica GC Technical Manual V2.2.0...
Important instructions to be read first Please read these instructions before you contact Allied Vision or your Allied Vision camera distributor for assistance. Contact Allied Vision or your Allied Vision camera distributor if you are not familiar with the procedures described below. Warranty...
Cleaning optical components Identifying impurities If you observe any image artifacts in your video preview of your Prosilica GC camera you may have impurities either on the lens, filter/protection glass, or on the sensor protection glass. Every Prosilica GC camera is cleaned prior to sealing and shipment;...
Unplug the camera from any power supply before cleaning. Apply a small amount of cleaning liquid to a new lens cleaning cotton, cloth, or tissue. The cotton, cloth, or lens tissue should be moist, but not dripping. Prosilica GC Technical Manual V2.2.0...
Allied Vision distributor or Allied Vision support. Cleaning with compressed air Allied Vision does not recommend cleaning Prosilica GC cameras with compressed air. Possible material damage •...
Firmware update This chapter includes instructions on updating the firmware on your Allied Vision Prosilica GC camera. Prosilica GC Technical Manual V2.2.0...
Page 76
Firmware update Download the latest GigE firmware loader from the Allied Vision website: https://www.alliedvision.com/en/support/firmware Saved camera user sets If new firmware contains a new feature/control, saved camera UserSets/ ConfigFiles will be invalidated and erased! Before loading new firmware, backup your current camera settings.
Page 77
Select the Use recovery mode checkbox if the connected GigE camera is not found by the firmware loaded, or if the GigE camera is listed as unavailable. When selected, power cycle the camera to enter the Boot Loader mode. Prosilica GC Technical Manual V2.2.0...
Page 78
Click Upload to start the update. The existing firmware will be erased and the new firmware will be updated to the camera. Possible material damage Do not unplug the GigE cable or camera power supply during the update procedure. Prosilica GC Technical Manual V2.2.0...
Page 79
Firmware update The Firmware Loader will display a success status upon completion. Click Quit to exit the loader. Prosilica GC Technical Manual V2.2.0...
Appendix The appendix includes the following information for older Prosilica GC cameras up to serial number 02- 21XXA (hardware version A): • Specification tables • Absolute quantum efficiency plots • ROI height vs. frame rate plots • Camera feature comparison of hardware version A/B models •...
1.0 µs for non-isolated I/O; 2.8 µs for isolated I/O Trigger jitter ±20 ns for non-isolated I/O; ±0.5 µs for isolated I/O Propagation delay (t 10 ns for non-isolated I/O; 1.3 µs for isolated I/O Table 19: Prosilica GC650, GC650C camera specifications Prosilica GC Technical Manual V2.2.0...
Page 82
59 x 46 x 33 mm Mass 104 g Interface IEEE 802.3 1000BASE-T/100BASE-TX Interface standard GigE Vision® Standard V1.2 Camera control standard GenICam SFNC V1.2.1 Regulations CE, RoHS, REACH, WEEE, FCC, ICES Table 19: Prosilica GC650, GC650C camera specifications (continued) Prosilica GC Technical Manual V2.2.0...
Appendix Absolute QE 1000 l ngth [nm] Figure 32: Prosilica GC650 (Sony ICX424) absolute QE Green Blue l ngth [nm] Figure 33: Prosilica GC650C (Sony ICX424) absolute QE Prosilica GC Technical Manual V2.2.0...
With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10%. The values are typical and are subject to minor variations. 1000 Wavelength [nm] Figure 35: Prosilica GC655, GC655C (Sony ICX414) absolute QE Prosilica GC Technical Manual V2.2.0...
±20 ns for non-isolated I/O; ±0.5 µs for isolated I/O Propagation delay (t 10 ns for non-isolated I/O; 1.3 µs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Table 23: Prosilica GC660, GC660C camera specifications Prosilica GC Technical Manual V2.2.0...
With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10%. The values are typical and are subject to minor variations. 1000 Wavelength [nm] Figure 37: Prosilica GC660, GC660C (Sony ICX618) absolute QE Prosilica GC Technical Manual V2.2.0...
Figure 38: Frame rate as a function of ROI height plot Height [pixels] Frame rate [fps] Height [pixels] Frame rate [fps] 119.29 222.7 128.2 261.2 140.09 315.8 154.41 399.28 171.99 474.51 194.08 506.32 Table 24: Frame rate as a function of ROI height table Prosilica GC Technical Manual V2.2.0...
-10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Body dimensions (L x W x H) 45 x 46 x 33 mm Mass 85 g Table 25: Prosilica GC750, GC750C camera specifications Prosilica GC Technical Manual V2.2.0...
Page 92
Appendix Feature Specification Interface IEEE 802.3 1000BASE-T/100BASE-TX Interface standard GigE Vision® Standard V1.2 Camera control standard GenICam SFNC V1.2.1 Regulations CE, RoHS, REACH, WEEE, FCC, ICES Table 25: Prosilica GC750, GC750C camera specifications (continued) Prosilica GC Technical Manual V2.2.0...
Appendix Absolute QE 1000 l ngth [nm] Figure 39: Prosilica GC750 (ON Semiconductor MT9V022) absolute QE Green Blue l ngth [nm] Figure 40: Prosilica GC750C (ON Semiconductor MT9V022) absolute QE Prosilica GC Technical Manual V2.2.0...
Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Operating humidity 20% to 80% non-condensing Table 27: Prosilica GC780, GC780C camera specifications Prosilica GC Technical Manual V2.2.0...
With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10%. The values are typical and are subject to minor variations. 1000 Wavelength [nm] Figure 42: Prosilica GC780, GC780C (Sony ICX415) absolute QE Prosilica GC Technical Manual V2.2.0...
10 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Table 29: Prosilica GC1020, GC1020C camera specifications Prosilica GC Technical Manual V2.2.0...
With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10%. The values are typical and are subject to minor variations. 1000 Wavelength [nm] Figure 44: Prosilica GC1020, GC1020C (Sony ICX204) absolute QE Prosilica GC Technical Manual V2.2.0...
±20 ns for non-isolated I/O; ±0.5 µs for isolated I/O Propagation delay (t 10 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Table 31: Prosilica GC1290, GC1290C camera specifications Prosilica GC Technical Manual V2.2.0...
With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10%. The values are typical and are subject to minor variations. 1000 Wavelength [nm] Figure 46: Prosilica GC1290, GC1290C (Sony ICX445) absolute QE Prosilica GC Technical Manual V2.2.0...
10 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Table 33: Prosilica GC1350, GC1350C camera specifications Prosilica GC Technical Manual V2.2.0...
Page 105
59 x 46 x 33 mm Mass 100 g Interface IEEE 802.3 1000BASE-T/100BASE-TX Interface standard GigE Vision Standard V1.2 Camera control standard GenICam SFNC V1.2.1 Regulations CE, RoHS, REACH, WEEE, FCC, ICES Table 33: Prosilica GC1350, GC1350C camera specifications (continued) Prosilica GC Technical Manual V2.2.0...
Appendix Absolute QE 1000 l ngth [nm] Figure 48: Prosilica GC1350 (Sony ICX205) absolute QE Green Blue l ngth [nm] Figure 49: Prosilica GC1350C (Sony ICX205) absolute QE Prosilica GC Technical Manual V2.2.0...
10 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Table 35: Prosilica GC1380, GC1380C camera specifications Prosilica GC Technical Manual V2.2.0...
With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10%. The values are typical and are subject to minor variations. 1000 Wavelength [nm] Figure 51: Prosilica GC1380, GC1380C (Sony ICX285) absolute QE plot Prosilica GC Technical Manual V2.2.0...
±20 ns for non-isolated I/O; ±0.5 µs for isolated I/O Propagation delay (t 10 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Table 37: Prosilica GC1380H, GC1380CH camera specifications Prosilica GC Technical Manual V2.2.0...
With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10%. The values are typical and are subject to minor variations. 1000 Wavelength [nm] Figure 53: Prosilica GC1380H, GC1380CH (Sony ICX285) absolute QE plot Prosilica GC Technical Manual V2.2.0...
10 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Storage temperature -10 °C to +70 °C ambient temperature (without condensation) Table 39: Prosilica GC1600, GC1600C camera specifications Prosilica GC Technical Manual V2.2.0...
With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10%. The values are typical and are subject to minor variations. 1000 Wavelength [nm] Figure 55: Prosilica GC1600, GC1600C (Sony ICX274) absolute QE plot Prosilica GC Technical Manual V2.2.0...
±20 ns for non-isolated I/O; ±0.5 µs for isolated I/O Propagation delay (t 20 ns for non-isolated I/O; 0.5 μs for isolated I/O Operating temperature 0 °C to +50 °C ambient temperature (without condensation) Table 41: Prosilica GC1600H, GC1600CH camera specifications Prosilica GC Technical Manual V2.2.0...
With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10%. The values are typical and are subject to minor variations. 1000 Wavelength [nm] Figure 57: Prosilica GC1600H, GC1600CH (Sony ICX274) absolute QE Prosilica GC Technical Manual V2.2.0...
20 ns for non-isolated I/O; 1.3 μs for isolated I/O Operating temperature 0 to +40 °C ambient temperature (without condensation) Storage temperature -10 to +70 °C ambient temperature (without condensation) Table 43: Prosilica GC2450, GC2450C camera specifications Prosilica GC Technical Manual V2.2.0...
With protection glass or filters, quantum efficiency (QE) decreases by approximately 10%. The uncertainty in measurement of the QE is +/ 10%. The values are typical and are subject to minor variations. 1000 Wavelength [nm] Figure 59: Prosilica GC2450, GC2450C (Sony ICX625) absolute QE plot Prosilica GC Technical Manual V2.2.0...
Appendix Camera feature comparison Allied Vision cameras support a number of standard and extended features. The table below identifies a selection of capabilities and compares the availability of features in Prosilica GC camera models. A complete listing of camera features, including feature definitions can be found on the Allied Vision documentation website: •...
Analog Analog Analog Analog Horizontal GigE Interface Frame Memory Horizontal ROI Binning Factory calibrated. Not a user control. 10 bits are used for Prosilica GC750. Figure 63: Image data flow of monochrome Prosilica GC cameras Prosilica GC Technical Manual V2.2.0...
For on camera interpolated PixelFormats only (8 bit output). Raw un interpolated PixelFormats skip this block (8/12 bit output depending upon the bit depth of PixelFormat used). Figure 64: Image data flow diagram of color Prosilica GC cameras (except GC750C) Prosilica GC750C Vertical Binning...
