G
E V
C
IG
ISION
AMERAS

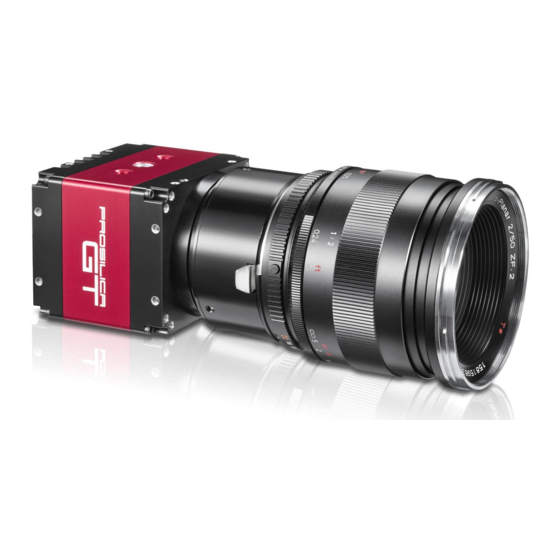

Prosilica GT
Technical Manual
V2.8.1
Allied Vision Technologies GmbH // Taschenweg 2a, D-07646 Stadtroda / Germany
2016-Aug-16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prosilica GT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Allied Vision Prosilica GT

Summary of Contents for Allied Vision Prosilica GT

  • Page 1 ISION AMERAS Prosilica GT Technical Manual V2.8.1 Allied Vision Technologies GmbH // Taschenweg 2a, D-07646 Stadtroda / Germany 2016-Aug-16...

  • Page 2: Prosilica Gt At A Glance

    Prosilica GT at a glance Prosilica GT cameras have a Gigabit Ethernet (GigE) interface and work with Gigabit Ethernet hardware and cable lengths up to 100 m. Prosilica GT cameras are GigE Vision V1.2 and GenICam SFNC V1.2.1 compliant. Applied standards GigE Vision®...

  • Page 3: Contact Us

    Contact us Contact us Connect with Allied Vision by function https://www.alliedvision.com/en/meta-header/contact.html Find an Allied Vision office or Allied Vision distribution partner https://www.alliedvision.com/en/about-us/where-we-are.html Email info@alliedvision.com support@alliedvision.com Sales offices Europe, Middle East, and Africa: +49 36428-677-230 North and South America: +1 (877) USA-1394...

  • Page 4: Table Of Contents

    Contents Prosilica GT at a glance Applied standards ............... . . 2 What else do you need? .
  • Page 5 Absolute QE................80 Prosilica GT Technical Manual V2.8.1...
  • Page 6 Prosilica GT standard format housing (C-Mount)........
  • Page 7 Prosilica GT standard and extended cameras ........

  • Page 8: Document History And Conventions

    Document history and conventions This chapter includes: • Document history • Layout styles and symbols used in this manual Prosilica GT Technical Manual V2.8.1...

  • Page 9: Document History

    Added Vimba SDK link Added frame rate vs. height graphs for Prosilica GT3400, GT4905, and GT4907 Updated frame rate vs. height graphs in Specifications chapter Updated Allied Vision recommended cabling to Category 6 or higher in Gigabit Ethernet port section V2.0.8...
  • Page 10 - C-Mount flange focal distance - F-Mount flange focal distance Updated information on Prosilica GT Out 3 / Out 4 trigger circuit on page 90 and in section Output: Opto-isolated internal circuit Updated temperature monitoring information in the Specifications chapter...
  • Page 11 Added Camera features comparison section in Specifications chapter to replace ‘Camera smart features’ and ‘Camera features’ sections Added Cleaning optical components chapter to replace Camera cleaning and updated information Added Contact us section to replace Contacting Allied Vision section Updated Prosilica GT large format lens mount drawings V2.6.0 2016-Mar-04...

  • Page 12: Manual Conventions

    Added spectral response curve for GT1930/GT1930L (Sony IMX174), GT3400 (Sony ICX814) Updated the absolute QE curve for GT1930/GT1930L (Sony IMX174) Added spectral response curve for Prosilica GT cameras with Sony CCD sensors Updated absolute QE curve for Prosilica GT cameras with Sony CCD sensors...

  • Page 13: Symbols

    This symbol highlights a practical hint that helps to better understand the camera‘s features and functions, and to make better use of it. Further information available online This symbol highlights URLs for further information. The URL itself is shown in blue. Example: https://www.alliedvision.com Prosilica GT Technical Manual V2.8.1...

  • Page 14: Safety And Regulations

    Safety and regulations § This chapter includes: • General safety notes for Prosilica GT cameras • Information about the legal requirements and restrictions for Prosilica GT cameras based on current and relevant regulations • Particular emphasis has been given to regulations...

  • Page 15: General Safety Notes

    This product can be damaged by some volatile cleaning agents. Avoid cleaning the image sensor unless absolutely necessary. See instructions on optics cleaning in this document. Allied Vision can clean your camera as a service for you, if necessary. For more information, contact Allied Vision support.

  • Page 16: Regulations

    European Economic Area requirements CE and RoHS Allied Vision Technologies declares under its sole responsibility that all standard cameras of the Prosilica GT family to which this declaration relates are in conformity with the following standard(s) or other normative document(s): •...

  • Page 17: Industry Canada Equipment Standard For Digital Equipment (Ices)

    Other legal notices Trademarks Unless stated otherwise, all trademarks shown in this document of Allied Vision Technologies are brands protected by law. All other product or company names may be trademarks of their respective owners. Warranty The information provided by Allied Vision Technologies is supplied without any guarantees or warranty whatsoever, be it specific or implicit.

  • Page 18: Installation And Hardware

    Installation and hardware This chapter describes the components required for your vision system including configuring the host computer, Ethernet adapter settings, and connecting your Prosilica GT camera. Prosilica GT Technical Manual V2.8.1...

  • Page 19: Configuring The Host Computer

    Installation and hardware Configuring the host computer Allied Vision GigE Vision cameras can operate on 10/100 or Gigabit speed Ethernet adapters. In order to reach the maximum camera frame rate, a Gigabit speed Ethernet adapter with jumbo packet support is required.

  • Page 20: Ethernet Adapter Driver Settings

    Transmit Buffers 256 bytes Default packet size The default packet size of Allied Vision GigE cameras is 8228 bytes. The host network adapter needs to support a packet size of equal or larger size to stream from the camera. Ethernet adapter For desktop systems, use a PCI Express bus Ethernet adapter.

  • Page 21: Enabling Jumbo Packets

    Crossover cabling is not required but does work. The camera has circuitry to determine if a crossover cable is being used. Allied Vision recommends Category 6 (Cat 6) or higher rated Ethernet cables. A different rating may not sustain peak interface bandwidth; leading to lost connectivity or image data coming from the camera.

  • Page 22: Downloading Camera Drivers

    Installation and hardware Downloading camera drivers Allied Vision GigE cameras work with any or all of the following software options. Vimba Viewer or Vimba SDK: https://www.alliedvision.com/en/products/software Third-party software solutions: https://www.alliedvision.com/en/products/software/third-party-libraries.html Powering up the camera A camera power adapter for each GigE camera is available from Allied Vision. See Specifications on page 24 for connector definition and voltage specifications.
  • Page 23 Installation and hardware Vimba Viewer documentation Vimba Viewer documentation is included with the software download. Once Vimba Viewer is installed on your host PC, documentation is located under \Program Files\Allied Vision\Vimba. Prosilica GT Technical Manual V2.8.1...

  • Page 24: Specifications

    This chapter provides: • Technical specifications • Absolute quantum efficiency plots • Spectral response plots (select models) • ROI height vs. frame rate plots • Comparison of feature availability in various Prosilica GT camera models Prosilica GT Technical Manual V2.8.1...

  • Page 25: Notes On Specifications

    Should your lens plus camera power requirements exceed 13 W, it will be necessary to power the camera via Hirose I/O port. Mono8 Prosilica GT color models include the Mono8 monochrome pixel format in addition to color and RAW formats. Monochrome and NIR models...

  • Page 26: Sensor Tap Mode

    This table lists features which are affected when switching from four-tap to one-tap sensor mode. Feature Four-tap mode One-tap mode Reverse X Available Not available Reverse Y Available Not available Decimation X Available Not available Decimation Y Available Not available Prosilica GT Technical Manual V2.8.1...

  • Page 27: Absolute Quantum Efficiency Plots

    The curves in the spectral response plots shown in this chapter were calculated from measured quantum efficiencies at 448 nm, 529 nm, and 632 nm. The shape of the curve is from the sensor data sheet but the values have been adjusted based on these measured values. Prosilica GT Technical Manual V2.8.1...

  • Page 28: Prosilica Gt1290, Gt1290C

    1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 2.9 W @ 12 VDC; 3.5 W PoE Trigger latency 2 µs Trigger jitter 20 ns Table 2: Prosilica GT1290, GT1290C model specifications Prosilica GT Technical Manual V2.8.1...
  • Page 29 CE, RoHS, REACH, WEEE, FCC, ICES Temperature monitoring Available for main board and sensor board. Resolution: 0.031; Accuracy: ±1 °C For more information on available optical filters see the Modular Concept. Table 2: Prosilica GT1290, GT1290C model specifications (continued) Prosilica GT Technical Manual V2.8.1...

  • Page 30: Absolute Qe

    Figure 1: Prosilica GT1290, GT1290C (Sony ICX445) absolute QE Spectral response Red Response Green Response Blue Response Monochrome Response 0.3000 Sony ICX445 spectral response 0.2000 0.1000 0.0000 1000 Wavelength [nm] Figure 2: Prosilica GT1290, GT1290C (Sony ICX445) spectral response Prosilica GT Technical Manual V2.8.1...

  • Page 31: Roi Frame Rate

    Height [pixels] Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 60.8 158.3 83.8 168.7 103.3 176.9 185.1 134.5 191.9 147.8 Table 4: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 32: Prosilica Gt1380, Gt1380C

    3.4 W @ 12 VDC; 4.2 W PoE Trigger latency 2.2 µs Trigger jitter 20 ns Propagation delay (t 30 ns for non-isolated I/O; 70 ns for isolated I/O Table 5: Prosilica GT1380, GT1380C model specifications Prosilica GT Technical Manual V2.8.1...
  • Page 33 CE, RoHS, REACH, WEEE, FCC, ICES Temperature monitoring Available for main board and sensor board. Resolution: 0.031; Accuracy: ±1 °C For more information on available optical filters see the Modular Concept. Table 5: Prosilica GT1380, GT1380C model specifications (continued) Prosilica GT Technical Manual V2.8.1...

  • Page 34: Absolute Qe

    Figure 4: Prosilica GT1380, GT1380C (Sony ICX285) absolute QE Spectral response Red Response Green Response Blue Response Monochrome Response 0.3000 Sony ICX285 spectral response 0.2000 0.1000 0.0000 1000 Wavelength [nm] Figure 5: Prosilica GT1380, GT1380C (Sony ICX285) spectral response Prosilica GT Technical Manual V2.8.1...

  • Page 35: Roi Frame Rate

    Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 53.2 125.6 70.7 130.4 84.6 134.6 96.0 138.5 105.4 142.1 113.1 144.7 119.6 Table 7: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 36: Prosilica Gt1600, Gt1600C

    1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 3.3 W @ 12 VDC; 4.0 W PoE Trigger latency 1.4 µs Trigger jitter 20 ns Table 8: Prosilica GT1600, GT1600C model specifications Prosilica GT Technical Manual V2.8.1...
  • Page 37 CE, RoHS, REACH, WEEE, FCC, ICES Temperature monitoring Available for main board and sensor board. Resolution: 0.031; Accuracy: ±1 °C For more information on available optical filters see the Modular Concept. Table 8: Prosilica GT1600, GT1600C model specifications (continued) Prosilica GT Technical Manual V2.8.1...

  • Page 38: Absolute Qe

    Figure 7: Prosilica GT1600, GT1600C (Sony ICX274) absolute QE Spectral response Red Response Green Response Blue Response Monochrome Response 0.3000 Sony ICX274 spectral response 0.2000 0.1000 0.0000 1000 Wavelength [nm] Figure 8: Prosilica GT1600, GT1600C (Sony ICX274) spectral response Prosilica GT Technical Manual V2.8.1...

  • Page 39: Roi Frame Rate

    Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 47.9 142.2 66.9 149.6 83.5 157.7 97.8 165.2 111.0 171.7 122.1 176.9 132.4 Table 10: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 40: Prosilica Gt1660, Gt1660C

    1 input, 2 outputs RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 5.1 W @ 12 VDC; 6.3 W PoE Trigger latency 2.1 µs Table 11: Prosilica GT1660, GT1660C model specifications Prosilica GT Technical Manual V2.8.1...

  • Page 41: Absolute Qe

    Note: Measured with AR coated cover glass. The uncertainty in measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. 1000 1050 Wavelength [nm] Figure 10: Prosilica GT1660, GT1660C (ON Semiconductor KAI-02050) absolute QE Prosilica GT Technical Manual V2.8.1...

  • Page 42: Roi Frame Rate

    The following table shows how binning affects frame rate. BinningVertical Height [pixels] Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 260.8 165.4 284.0 202.8 303.1 234.2 Table 13: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 43: Prosilica Gt1910, Gt1910C

    1 input, 2 outputs RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 5.1 W @ 12 VDC; 6.3 W PoE Trigger latency 2.2 µs Table 14: Prosilica GT1910, GT1910C model specifications Prosilica GT Technical Manual V2.8.1...

  • Page 44: Absolute Qe

    Note: Measured with AR coated cover glass. The uncertainty of measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. 1000 1050 Wavelength [nm] Figure 12: Prosilica GT1910, GT1910C (ON Semiconductor KAI-02150) absolute QE Prosilica GT Technical Manual V2.8.1...

  • Page 45: Roi Frame Rate

    The following table shows how binning affects frame rate. BinningVertical Height [pixels] Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 114.1 258.5 160.8 282.6 198.7 304.0 230.8 Table 16: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 46: Prosilica Gt1920, Gt1920C

    1 input, 2 outputs RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 4.9 W @ 12 VDC; 6.0 W PoE Trigger latency 2 µs Table 17: Prosilica GT1920, GT1920C model specifications Prosilica GT Technical Manual V2.8.1...
  • Page 47 CE, RoHS, REACH, WEEE, FCC, ICES Temperature monitoring Available for main board and sensor board. Resolution: 0.031; Accuracy: ±1 °C For more information on available optical filters see the Modular Concept. Table 17: Prosilica GT1920, GT1920C model specifications (continued) Prosilica GT Technical Manual V2.8.1...

  • Page 48: Absolute Qe

    Figure 14: Prosilica GT1920, GT1920C (Sony ICX674) absolute QE Spectral response Red Response Green Response Blue Response Monochrome Response 0.3000 Sony ICX674 spectral response 0.2000 0.1000 0.0000 1000 Wavelength [nm] Figure 15: Prosilica GT1920, GT1920C (Sony ICX674) spectral response Prosilica GT Technical Manual V2.8.1...

  • Page 49: Roi Frame Rate

    The following table shows how binning affects frame rate. BinningVertical Height [pixels] Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 70.3 135.1 92.8 144.1 110.0 151.7 124.1 Table 19: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 50: Prosilica Gt1930, Gt1930C

    Sensor taps Four-tap TTL (non-isolated) I/Os 1 input, 2 outputs Opto-isolated I/Os 1 input, 2 outputs RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Table 20: Prosilica GT1930, GT1930C model specifications Prosilica GT Technical Manual V2.8.1...
  • Page 51 These values are calculated directly from the microcontroller source. These values are only valid for pixel formats ≤16 bit per pixel. GigE host controller card with jumbo packets is required. See Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended GigE host controller cards.

  • Page 52: Absolute Qe

    Figure 17: Prosilica GT1930, GT1930C (Sony IMX174) absolute QE Spectral response Red Response Green Response Blue Response Monochrome Response 0.4000 Sony IMX174 spectral response 0.3000 0.2000 0.1000 0.0000 1000 Wavelength [nm] Figure 18: Prosilica GT1930, GT1930C (Sony IMX174) spectral response Prosilica GT Technical Manual V2.8.1...

  • Page 53: Roi Frame Rate

    There will be an increase in frame rate with reduced width if the camera is bandwidth limited. Height [pixels] Frame rate [fps] Height [pixels] Frame rate [fps] 1216 50.7 1200 51.4 126.9 1080 503.6 1024 1187.2 80.1 1429.4 Table 21: Frame rate as a function of ROI height table Prosilica GT Technical Manual V2.8.1...

  • Page 54: Prosilica Gt1930L, Gt1930Lc

    Sensor taps Four-tap TTL (non-isolated) I/Os 1 input, 2 outputs Opto-isolated I/Os 1 input, 2 outputs RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Table 22: Prosilica GT1930L, GT1930LC model specifications Prosilica GT Technical Manual V2.8.1...
  • Page 55 Temperature monitoring Available for main board only. Resolution: 0.031; Accuracy: ±1 °C To enable EF lens control on Prosilica GT cameras you must update firmware to version 01.54.14263 or later. For more information on available optical filters see the Modular Concept.

  • Page 56: Absolute Qe

    Figure 20: Prosilica GT1930L, GT1930LC (Sony IMX174) absolute QE Spectral response Red Response Green Response Blue Response Monochrome Response 0.4000 Sony IMX174 spectral response 0.3000 0.2000 0.1000 0.0000 1000 Wavelength [nm] Figure 21: Prosilica GT1930L, GT1930LC (Sony IMX174) spectral response Prosilica GT Technical Manual V2.8.1...

  • Page 57: Roi Frame Rate

    There will be an increase in frame rate with reduced width if the camera is bandwidth limited. Height [pixels] Frame rate [fps] Height [pixels] Frame rate [fps] 1216 50.7 1200 51.4 126.9 1080 503.6 1024 1187.2 80.1 1429.4 Table 23: Frame rate as a function of ROI height table Prosilica GT Technical Manual V2.8.1...

  • Page 58: Prosilica Gt2000, Gt2000Nir, Gt2000C

    1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 3.4 W @ 12 VDC; 4.2 W PoE Trigger latency 700 ns Trigger jitter 20 ns Table 24: Prosilica GT2000, GT2000NIR, GT2000C model specifications Prosilica GT Technical Manual V2.8.1...

  • Page 59: Absolute Qe

    For more information on available optical filters see the Modular Concept. GigE host controller card with jumbo packets is required. See the Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended GigE host controller cards.

  • Page 60: Roi Frame Rate

    Frame rate [fps] Height [pixels] Frame rate [fps] 1088 53.7 191.2 1000 58.4 283.1 64.8 545.3 72.9 981.4 83.2 2105.3 96.8 2949.9 115.9 4926.1 144.3 Table 25: Frame rate as a function of ROI height table Prosilica GT Technical Manual V2.8.1...

  • Page 61: Prosilica Gt2050, Gt2050Nir, Gt2050C

    1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 3.5 W @ 12 VDC; 4.3 W PoE Trigger latency 700 ns Trigger jitter 20 ns Table 26: Prosilica GT2050, GT2050NIR, GT2050C model specifications Prosilica GT Technical Manual V2.8.1...

  • Page 62: Absolute Qe

    For more information on available optical filters see the Modular Concept. GigE host controller card with jumbo packets is required. See the Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended GigE host controller cards.

  • Page 63: Roi Frame Rate

    Frame rate [fps] 2048 28.6 96.8 2000 29.3 144.3 1800 32.6 283.1 1600 36.6 545.3 1400 41.8 981.4 1200 48.7 2105.3 1000 58.4 2949.9 72.9 4926.1 Table 27: Frame rate as a function of ROI height table Prosilica GT Technical Manual V2.8.1...

  • Page 64: Prosilica Gt2300, Gt2300C

    1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 4.9 W @ 12 VDC; 6.0 W PoE Trigger latency 2.2 µs Trigger jitter 20 ns Table 28: Prosilica GT2300, GT2300C model specifications Prosilica GT Technical Manual V2.8.1...

  • Page 65: Absolute Qe

    Note: Measured with AR coated cover glass. The uncertainty of measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. 1000 1050 Wavelength [nm] Figure 27: Prosilica GT2300, GT2300C (ON Semiconductor KAI-04050) absolute QE Prosilica GT Technical Manual V2.8.1...

  • Page 66: Roi Frame Rate

    The following table shows how binning affects frame rate. BinningVertical Height [pixels] Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 58.3 128.5 81.4 140.0 99.7 148.9 115.3 Table 30: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 67: Prosilica Gt2450, Gt2450C

    1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 3.8 W @ 12 VDC; 4.7 W PoE Trigger latency 1.1 µs Trigger jitter 20 ns Table 31: Prosilica GT2450, GT2450C model specifications Prosilica GT Technical Manual V2.8.1...
  • Page 68 CE, RoHS, REACH, WEEE, FCC, ICES Temperature monitoring Available for main board and sensor board. Resolution: 0.031; Accuracy: ±1 °C For more information on available optical filters see the Modular Concept. Table 31: Prosilica GT2450, GT2450C model specifications (continued) Prosilica GT Technical Manual V2.8.1...

  • Page 69: Absolute Qe

    Figure 29: Prosilica GT2450, GT2450C (Sony ICX625) absolute QE Spectral response Red Response Green Response Blue Response Monochrome Response 0.3000 Sony ICX625 spectral response 0.2000 0.1000 0.0000 1000 Wavelength [nm] Figure 30: Prosilica GT2450, GT2450C (Sony ICX625) spectral response Prosilica GT Technical Manual V2.8.1...

  • Page 70: Roi Frame Rate

    Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 1025 25.4 54.8 33.1 56.6 38.9 58.2 43.4 59.6 47.1 60.8 50.2 61.8 52.7 Table 33: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 71: Prosilica Gt2750, Gt2750C

    Opto-isolated I/Os 1 input, 2 outputs RS232 1 TxD, 1 RxD Voltage Requirements 7 to 25 VDC; PoE Power consumption 5.4 W @ 12 VDC; 6.6 W PoE Table 34: Prosilica GT2750, GT2750C model specifications Prosilica GT Technical Manual V2.8.1...
  • Page 72 CE, RoHS, REACH, WEEE, FCC, ICES Temperature monitoring Available for main board and sensor board. Resolution: 0.031; Accuracy: ±1 °C For more information on available optical filters see the Modular Concept. Table 34: Prosilica GT2750, GT2750C model specifications (continued) Prosilica GT Technical Manual V2.8.1...

  • Page 73: Absolute Qe

    Figure 32: Prosilica GT2750, GT2750 (Sony ICX694) absolute QE Spectral response Red Response Green Response Blue Response Monochrome Response 0.4000 Sony ICX694 spectral response 0.3000 0.2000 0.1000 0.0000 1000 Wavelength [nm] Figure 33: Prosilica GT2750, GT2750C (Sony ICX694) spectral response Prosilica GT Technical Manual V2.8.1...

  • Page 74: Roi Frame Rate

    The following table shows how binning affects frame rate. BinningVertical Height [pixels] Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 1100 37.0 77.4 50.2 83.8 60.9 88.9 70.0 Table 36: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 75: Prosilica Gt3300, Gt3300C

    1 input, 2 outputs RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 5.6 W @ 12 VDC; 6.9 W PoE Trigger latency 2.2 µs Table 37: Prosilica GT3300, GT3300C model specifications Prosilica GT Technical Manual V2.8.1...

  • Page 76: Absolute Qe

    Note: Measured with AR coated cover glass. The uncertainty of measurement of the QE is +/ 10.25%. The values are typical and are subject to minor variations. 1000 1050 Wavelength [nm] Figure 35: Prosilica GT3300, GT3300C (ON Semiconductor KAI-08050) absolute QE Prosilica GT Technical Manual V2.8.1...

  • Page 77: Roi Frame Rate

    The following table shows how binning affects frame rate. BinningVertical Height [pixels] Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 1236 29.4 69.5 43.1 75.8 53.2 81.4 62.0 Table 39: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 78: Prosilica Gt3400, Gt3400C

    1 input, 2 outputs RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 5.4 W @ 12 VDC; 6.6 W PoE Trigger latency 2.5 µs Table 40: Prosilica GT3400, GT3400C model specifications Prosilica GT Technical Manual V2.8.1...
  • Page 79 For more information on available optical filters see the Modular Concept. GigE host controller card with jumbo packets is required. See Hardware Selection for Allied Vision GigE Cameras application note for a list of recommended GigE host controller cards. Table 40: Prosilica GT3400, GT3400C model specifications (continued)

  • Page 80: Absolute Qe

    Figure 37: Prosilica GT3400, GT3400C (Sony ICX814) absolute QE Spectral response Red Response Green Response Blue Response Monochrome Response 0.4000 Sony ICX814 spectral response 0.3000 0.2000 0.1000 0.0000 1000 Figure 38: Prosilica GT3400B, GT3400C (Sony ICX814) spectral response Prosilica GT Technical Manual V2.8.1...

  • Page 81: Roi Frame Rate

    The following table shows how binning affects frame rate. BinningVertical Height [pixels] Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 1352 25.1 52.8 34.1 57.2 41.4 61.0 47.6 Table 42: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 82: Prosilica Gt4905, Gt4905C

    1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 7.3 W @ 12 VDC; 9.0 W PoE Trigger latency 2.5 µs Trigger jitter 20 ns Table 43: Prosilica GT4905, GT4905C model specifications Prosilica GT Technical Manual V2.8.1...

  • Page 83: Absolute Qe

    Available for main board and sensor board. Resolution: 0.031; Accuracy: ±1 °C To enable EF lens control on Prosilica GT cameras you must update firmware to version 01.54.14263 or later. EF lens control is only supported for cameras with EF lens mount (order option -18).

  • Page 84: Roi Frame Rate

    BinningVertical Height [pixels] Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 1632 15.1 31.8 1088 20.7 34.4 25.1 36.6 28.8 Table 45: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 85: Prosilica Gt4907, Gt4907C

    1 input, 2 outputs RS232 1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 7.7 W @ 12 VDC; 9.5 W PoE Trigger latency 2.5 µs Table 46: Prosilica GT4907, GT4907C model specifications Prosilica GT Technical Manual V2.8.1...

  • Page 86: Absolute Qe

    Available for main board and sensor board. Resolution: 0.031; Accuracy: ±1 °C To enable EF lens control on Prosilica GT cameras you must update firmware to version 01.54.14263 or later. EF lens control is only supported for cameras with EF lens mount (order option -18).

  • Page 87: Roi Frame Rate

    BinningVertical Height [pixels] Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 1616 12.5 21.0 1076 15.7 21.9 17.9 22.7 19.6 Table 48: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 88: Prosilica Gt6600, Gt6600C

    1 TxD, 1 RxD Voltage requirements 7 to 25 VDC; PoE Power consumption 6.6 W @ 12 VDC; 8.1 W PoE Trigger latency 2.5 µs Trigger jitter 20 ns Table 49: Prosilica GT6600, GT6600C model specifications Prosilica GT Technical Manual V2.8.1...

  • Page 89: Absolute Qe

    Available for main board and sensor board. Resolution: 0.031; Accuracy: ±1 °C To enable EF lens control on Prosilica GT cameras you must update firmware to version 01.54.14263 or later. EF lens control is only supported for cameras with EF lens mount (order option -18).

  • Page 90: Roi Frame Rate

    BinningVertical Height [pixels] Frame rate [fps] BinningVertical Height [pixels] Frame rate [fps] 2192 17.3 1460 10.4 19.1 1096 13.0 20.7 15.3 Table 51: Frame rate as a function of ROI height with vertical binning enabled Prosilica GT Technical Manual V2.8.1...

  • Page 91: Prosilica Gt Model Comparison

    ON Semiconductor 35mm Optical 6576 x 4384 Quad-tap/ 4 fps GT6600C KAI-29050 Format Single-tap Frame rate reflects four-tap mode. See the specification tables for the frame rate for one-tap mode. Table 52: Prosilica GT model overview Prosilica GT Technical Manual V2.8.1...
  • Page 92 Specifications Frame rate comparison at full resolution 62.1 57.5 53.7 50.7 50.7 40.7 33.3 30.5 29.3 28.6 25.8 19.8 14.7 13.2 Model number, resolution, and sensor type Figure 46: Frame rate comparison Prosilica GT Technical Manual V2.8.1...

  • Page 93: Camera Feature Comparison

    Specifications Camera feature comparison Allied Vision cameras support a number of standard and extended features. The table below identifies a selection of capabilities and compares the availability of features in Prosilica GT camera models. Camera control documents A complete listing of camera controls including control definitions can be found online.
  • Page 94 EF lens control is only supported for models with EF lens mount (order option -18). Temperature readout only available on the main board and not on the sensor board. Table 53: Camera feature comparison (continued) Prosilica GT Technical Manual V2.8.1...

  • Page 95: Mechanical Dimensions

    Mechanical dimensions This chapter includes: • CAD drawings and dimensions of both standard, extended, and large format housings, and tripod adapter • Sensor position accuracy • Maximum protrusion and filter diameter for C-Mount Prosilica GT Technical Manual V2.8.1...

  • Page 96: Prosilica Gt Standard Format Housing (C-Mount)

    Mechanical dimensions The Prosilica GT family supports a range of sensor formats. To support this sensor variety, three housing formats are used: • Prosilica GT standard format • Prosilica GT extended format • Prosilica GT large format Prosilica GT cameras are available with different lens mount options. For more information, see the Modular Concept document at: https://www.alliedvision.com/en/support/technical-documentation.html...
  • Page 97 26.7 20.6 19.1 70.5 53.3 65.2 Figure 48: Prosilica GT1930 C-Mount standard format housing dimensions M42-Mount Prosilica GT standard cameras are available with M42-Mount, see Technical Drawing: Prosilica GT Standard Cameras for M42-Mount for dimensions. Prosilica GT Technical Manual V2.8.1...

  • Page 98: Prosilica Gt Extended Format Housing (C-Mount)

    Mechanical dimensions Prosilica GT extended format housing (C- Mount) Prosilica GT1660, GT1910, GT1920, GT2300, GT2750, GT3400 M3x4 (4x) 70.9 29.9 31.6 Adjustable C-Mount 11.4 M2x3 (2x) 16 26 33 26.7 20.6 19.1 76.2 M3x4 (8x) 53.3 M3x4 (4x) 12 Nominal, precise 70.9...

  • Page 99: Prosilica Gt Extended Format Housing (F-Mount)

    53.3 M3x4 (4x) 70.9 Figure 50: Prosilica GT3300 F-Mount extended format housing dimensions M42-Mount Prosilica GT standard cameras are available with M42-Mount, see Technical Drawing: Prosilica GT Standard Cameras for M42-Mount for dimensions. Prosilica GT Technical Manual V2.8.1...

  • Page 100: Prosilica Gt Large Format Housing

    EF-Mount PA order code Contact the Allied Vision Sales team to purchase the Prosilica GT series camera with EF-Mount PA option (order code Prosilica GT...-18). Prosilica GT Technical Manual V2.8.1...

  • Page 101: F-Mount

    27.9 28 26 48.3 12.7 M3x4 (4x) 2 Sides 48.3 11.4 53.3 53.3 26.8 53.3 M2x3 (2x) Legacy-style 59.7 13.5 F-Mount 66 28 6 (2x) 2 Sides 27.9 Figure 52: F-Mount large format camera dimensions Prosilica GT Technical Manual V2.8.1...

  • Page 102: F-Mount Pa (Planarity Adjustable)

    F-Mount PA order code Contact the Allied Vision Sales team to purchase the Prosilica GT series camera with F-Mount PA option (order code Prosilica GT...-03). Prosilica GT Technical Manual V2.8.1...

  • Page 103: M42-Mount Pa (Planarity Adjustable)

    M42-Mount PA order code Contact the Allied Vision Sales team to purchase the Prosilica GT series camera with M42-Mount PA option (order code Prosilica GT...-25). Prosilica GT Technical Manual V2.8.1...

  • Page 104: M42-Mount

    *Nominal, precise dimension is sensor dependent. 27.9 Figure 55: M42-Mount large format camera dimensions M42-Mount order code Contact the Allied Vision Sales team to purchase the Prosilica GT series camera with M42-Mount option (order code Prosilica GT...-31). Prosilica GT Technical Manual V2.8.1...

  • Page 105: M58-Mount Pa (Planarity Adjustable)

    M58-Mount PA order code Contact the Allied Vision Sales team to purchase the Prosilica GT series camera with M58-Mount PA option (order code Prosilica GT...-13). Prosilica GT Technical Manual V2.8.1...

  • Page 106: M58-Mount

    27.9 6 (2x) 2 sides Figure 57: M58-Mount large format camera dimensions M58-Mount order code Contact the Allied Vision Sales team to purchase the Prosilica GT series camera with M58-Mount option (order code Prosilica GT...-12). Prosilica GT Technical Manual V2.8.1...

  • Page 107: Tripod Adapter

    Mechanical dimensions Tripod adapter Prosilica GT standard and extended cameras can be mounted on a camera tripod by using the Prosilica GT mounting plate. Prosilica GT tripod adapter Contact the Allied Vision Sales team to purchase the Prosilica GT series tripod adapter (order code 02-5036A).

  • Page 108: Flange Focal Distance

    Mechanical dimensions Prosilica GT large format cameras can be mounted on a camera tripod by using the tripod mount hole integrated into the camera body. Tripod Mount Hole Figure 59: Integrated tripod mount holes for Prosilica GT large format cameras...

  • Page 109: Adjustment Of C-Mount

    Locking wrench Contact the Allied Vision Sales team to purchase the hexagonal lens adjustment wrench for Prosilica GT cameras with C/CS locking ring (order code 02-5003A). Image to infinity Use a C-Mount compatible lens that allows an infinity focus. Set the lens to infinity and image a distant object (10 to 15 m).

  • Page 110: Lens Protrusion For C-Mount Cameras

    Sec on A-A for C-Mount color cameras monochrome cameras Figure 61: Cross section of typical Prosilica GT camera front assembly with C- Mount Avoid damage from unsuitable lenses To protect camera and lens, use lenses only up to the allowed maximum protrusion, as listed in the following tables.

  • Page 111: F-Mount

    Table 54: Lens protrusion for Prosilica GT cameras with C-Mount (continued) F-Mount Flange focal distance is the optical distance from the mounting flange to image sensor die. Prosilica GT F-Mount cameras are calibrated to a standard 46.50 mm flange focal distance. Adjustment of F-Mount The F-Mount is adjusted at the factory and should not require adjusting.

  • Page 112: Other Mounts

    Table 55: Calibration variation from standard flange focal distance Planarity adjustment mounts Prosilica GT cameras allow planarity adjustment of the mount relative to the camera sensor. Adjustment can be made for overall flange focal distance (Z distance), and planarity (Z-tilt). The following steps describe Z adjustment using a standard EF lens and a target.

  • Page 113: M42-Mount Flange Focal Distance

    EF-Mount Tighten the three bolts and recheck the focus. M42-Mount flange focal distance M42-Mount PA (planarity adjustable) Flange focal distance = 45.46 mm Image sensor die SECTION A-A Figure 64: M42-Mount PA flange focal distance Prosilica GT Technical Manual V2.8.1...

  • Page 114: M42-Mount

    Flange focal distance = 45.46 mm Image sensor die SECTION A-A Figure 65: M42-Mount flange focal distance M58-Mount flange focal distance M58-Mount Flange focal distance: came [12.3 15.8 came [11. 15.8 Figure 66: M58-Mount flange focal distance Prosilica GT Technical Manual V2.8.1...

  • Page 115: Sensor Position Accuracy

    ±250 µm (sensor shift) ±10 µm (optical back focal length) α < 1° (sensor rotation) Alignment Optical alignment of photo sensitive sensor area into camera front module (lens mount front flange). Table 56: Sensor position accuracy criteria Prosilica GT Technical Manual V2.8.1...

  • Page 116: Ir Cut Filter

    Mechanical dimensions IR cut filter All Prosilica GT color models are equipped with an infrared block filter (IR cut filter). This filter is employed to prevent infrared light from passing to the sensor. In the absence of an IR cut filter, images are dominated by red and incapable of being properly color balanced.

  • Page 117: Camera Interfaces

    This chapter includes: • A general description of the inputs and outputs (including trigger features) • I/O connector pin assignments • I/O block diagrams • A general description of trigger rules such as timing diagram and definitions Prosilica GT Technical Manual V2.8.1...

  • Page 118: Back Panel

    This section provides information on Gigabit Ethernet interface, inputs and outputs, and trigger features. Accessories Contact your Allied Vision Sales representative or your local Allied Vision distribution partner for information on accessories: https://www.alliedvision.com/en/about-us/where-we-are.html Figure 69: Prosilica GT ports and interface...

  • Page 119: Status Leds

    Gigabit Ethernet interface The Prosilica GT is powered through the 12-pin Hirose I/O port, or the Gigabit Ethernet interface by using any standard Power over Ethernet (PoE) supported network card, switch, or injector. Allied Vision recommends using Category 6 or higher compatible cabling for best performance.

  • Page 120: Camera I/O Connector Pin Assignment

    Cable lengths up to 100 m are supported. The 8-pin RJ-45 jack has the pin assignment according to the Ethernet standard (IEEE 802.3 1000BASE-T). Horizontal locking screw connector Prosilica GT cameras support cables with horizontal locking screw connector for a secured connection (see figure 69). Allied Vision recommends using locking-screw cables from Components Express, Inc.

  • Page 121: I/O Definition

    I/O definition Camera Power The Prosilica GT camera can be powered through the Hirose I/O port, via Pin 1 Camera GND and Pin 2 Camera Power, or through the Gigabit Ethernet interface if using a power over Ethernet (PoE) supported network card, switch, or injector.

  • Page 122: Rxd Rs232 And Txd Rs232

    Exceeding 5.1 V on In 1 can permanently damage the camera Camera Internal External 180 R To Camera Logic 1/10 W In 1 5.1 V, 150 mW Camera GND SN74LVC2G34DCKR Figure 70: Prosilica GT internal circuit diagram for non-isolated input trigger Prosilica GT Technical Manual V2.8.1...

  • Page 123: Output Signals

    To Camera Logic Isolated In GND PS9117A-F3-AX Figure 71: Prosilica GT internal circuit diagram for opto-isolated input trigger Isolated In GND The Isolated In GND connection provides the user ground reference and return path for In 2. It is recommended that the ground wiring be physically close to the In2 wiring to prevent parasitic coupling.
  • Page 124 TTL, maximum 3.3 V. It is not suitable for driving loads in excess of 50 µA. Camera Internal External 3.3 V 3.3 V 4.75 K Out 1 / Out2 3.3 V Camera Logic DMN3404L-7 Figure 72: Prosilica GT Out 1 / Out 2 trigger circuit Prosilica GT Technical Manual V2.8.1...
  • Page 125 In July 2012, these 4.75 KΩ resistors were removed from the printed circuit board assembly. Regardless of whether your Prosilica GT camera has the two 4.75 KΩ internal pull- down resistors or not, implement the output trigger (Out3 and Out4) as described below.

  • Page 126: Lens Control

    For example, a motorized iris lens may be a bipolar single axis motorized lens, and not a DC auto iris or P-Iris lens Prosilica GT cameras with standard and extended housings can be used with C- Mount and CS-Mount auto iris lenses of DC type and P-Iris type.
  • Page 127 200 mA Table 61: P-Iris mode lens control port wiring DC-Iris lenses The Prosilica GT cameras with standard and extended housings operate with any standard DC-type auto iris lens. Allied Vision tested lenses include Fujinon DV10x8SA-SA1L, Computar HG2Z0414FC-MP, and Pentax C61227DCPS.
  • Page 128 PirisManual allows manual control of LensPIrisPosition P-Iris controls P-Iris controls are described further in the following documents: • Vimba and third-party software users: GigE Features Reference • PvAPI users: GigE Camera and Driver Attributes document Prosilica GT Technical Manual V2.8.1...

  • Page 129: Prosilica Gt Large Format Cameras

    P-Iris Lens application note: https://www.alliedvision.com/en/support/technical-papers-knowledge- base.html Prosilica GT large format cameras Electro-Focus (EF) lens control is available on the Prosilica GT1930L, GT4905, GT4907, and GT6600 cameras. EF lens control allows focus and aperture control via host software.

  • Page 130: Camera Trigger

    Exposure length of exposure. N+ 1 Trigger ji er Readout N+ 1 Interline me Trigger ready Imaging Idle Figure 76: Prosilica GT internal signal timing waveforms Prosilica GT Technical Manual V2.8.1...

  • Page 131: Trigger Definitions

    For applications requiring the shortest possible Trigger Latency and the smallest possible Trigger Jitter the User Trigger signal should be applied when Imaging is false and Idle is true. In this case, Trigger Latency and Trigger Jitter are as indicated Specifications on page 24. Prosilica GT Technical Manual V2.8.1...
  • Page 132 Trigger Jitter can be up to 1 row time since Exposure must always begin on an Interline boundary. For a more detailed description of the trigger concept for advanced users and special scenarios, see the Triggering Concept application note: https://www.alliedvision.com/en/support/technical-papers-knowledge- base.html Prosilica GT Technical Manual V2.8.1...

  • Page 133: Image Data Flow

    Image data flow This chapter presents diagrams that illustrate data flow and bit resolution of the image data. Prosilica GT Technical Manual V2.8.1...

  • Page 134: Prosilica Gt Models With Ccd Sensors

    • PvAPI users: GigE Camera and Driver Attributes document Prosilica GT models with CCD sensors Prosilica GT1290, GT1290C, GT1380, GT1380C, GT1600, GT1600C, GT1660, GT1660C, GT1910, GT1910C, GT1920, GT1920C, GT2300, GT2300C, GT2450, GT2450C, GT2750, GT2750C, GT3300, GT3300C, GT3400, GT3400C, GT4905, GT4905C, GT4907, GT4907C, GT6600, GT6600C...

  • Page 135: Prosilica Gt Models With Cmos Sensors

    Image data flow Prosilica GT models with CMOS sensors Prosilica GT1930, GT1930C, GT1930L, GT1930LC Reverse X|Y Gain Offset Sensor Vertical ROI Analog Analog Analog Analog Internal sensor components Horizontal Vertical Binning White balance Horizontal ROI Binning 12 bit 12 bit...
  • Page 136 (8/12 bit output), depending upon the bit depth of used. Note: Some features are only available for select models. For more information, see the comparison table at the end of the Specifications chapter. Prosilica GT Technical Manual V2.8.1...

  • Page 137: Cleaning Optical Components

    Cleaning optical components This chapter describes safety instructions and cautions for cleaning lenses, optical filters, protection glass, or sensors. Prosilica GT Technical Manual V2.8.1...

  • Page 138: Warranty

    Cleaning optical components Read these instructions before you contact Allied Vision or your Allied Vision distribution partner for assistance. Contact Allied Vision or your Allied Vision distribution partner if you are not familiar with the procedures described below. Warranty For details about camera warranty duration and sensor warranty terms, go to: https://www.alliedvision.com/en/support/warranty...

  • Page 139: Identifying Impurities

    Cleaning optical components Identifying impurities If you observe any image artifacts in your video preview of your Prosilica GT camera you may have impurities either on the lens, filter/protection glass, or on the sensor protection glass. Every Prosilica GT camera is cleaned prior to sealing and shipment;...

  • Page 140: Materials For Cleaning Optical Components

    Unplug the camera from any power supply before cleaning. Apply a small amount of cleaning liquid to a new lens cleaning cotton, cloth, or tissue. The cotton, cloth, or lens tissue should be moist, but not dripping. Prosilica GT Technical Manual V2.8.1...

  • Page 141: Cleaning With Compressed Air

    Allied Vision distribution partner. Cleaning with compressed air Allied Vision does not recommend cleaning Prosilica GT cameras with compressed air. • Compressed air at high pressure and/or shorter operating distances may push dust into the camera/lens and physically damage the camera, sensor, or optical components.

  • Page 142: Firmware Update

    Firmware update This chapter includes instructions on updating the firmware on your Allied Vision Prosilica GT camera. Prosilica GT Technical Manual V2.8.1...
  • Page 143 Firmware update Download the latest GigE firmware loader from the Allied Vision website: https://www.alliedvision.com/en/support/firmware Saved camera user sets If new firmware contains a new feature/control, saved camera UserSets/ ConfigFiles will be invalidated and erased! Before loading new firmware, backup your current camera settings.
  • Page 144 Select the Use recovery mode check box if the connected GigE camera is not found by the firmware loaded, or if the GigE camera is listed as unavailable. When selected, power cycle the camera to enter the Boot Loader mode. Prosilica GT Technical Manual V2.8.1...
  • Page 145 Click Upload to start the update. The existing firmware will be erased and the new firmware will be updated to the camera. Do not unplug the GigE cable or camera power supply during the update procedure. Prosilica GT Technical Manual V2.8.1...
  • Page 146 Firmware update The Firmware Loader will display a success status upon completion. Click Quit to exit the loader. Prosilica GT Technical Manual V2.8.1...

  • Page 147: Index

    12 recovery mode ........144 symbols............13 update ............. 143 flange focal distance C-Mount ..........108 F-Mount ..........111 frame memory..........25 Out 1............121 frame rate ............25 Out 2............121 Out 3..........121 Out 4..........120 Prosilica GT Technical Manual V2.8.1...
  • Page 148 ..........131 exposure cycle ........131 tripod adapter ..........107 exposure start delay ....... 131 idle............131 imaging............ 131 integrating light........123 warranty ...........17 interline time .......... 131 registered exposure time ....... 131 Prosilica GT Technical Manual V2.8.1...
