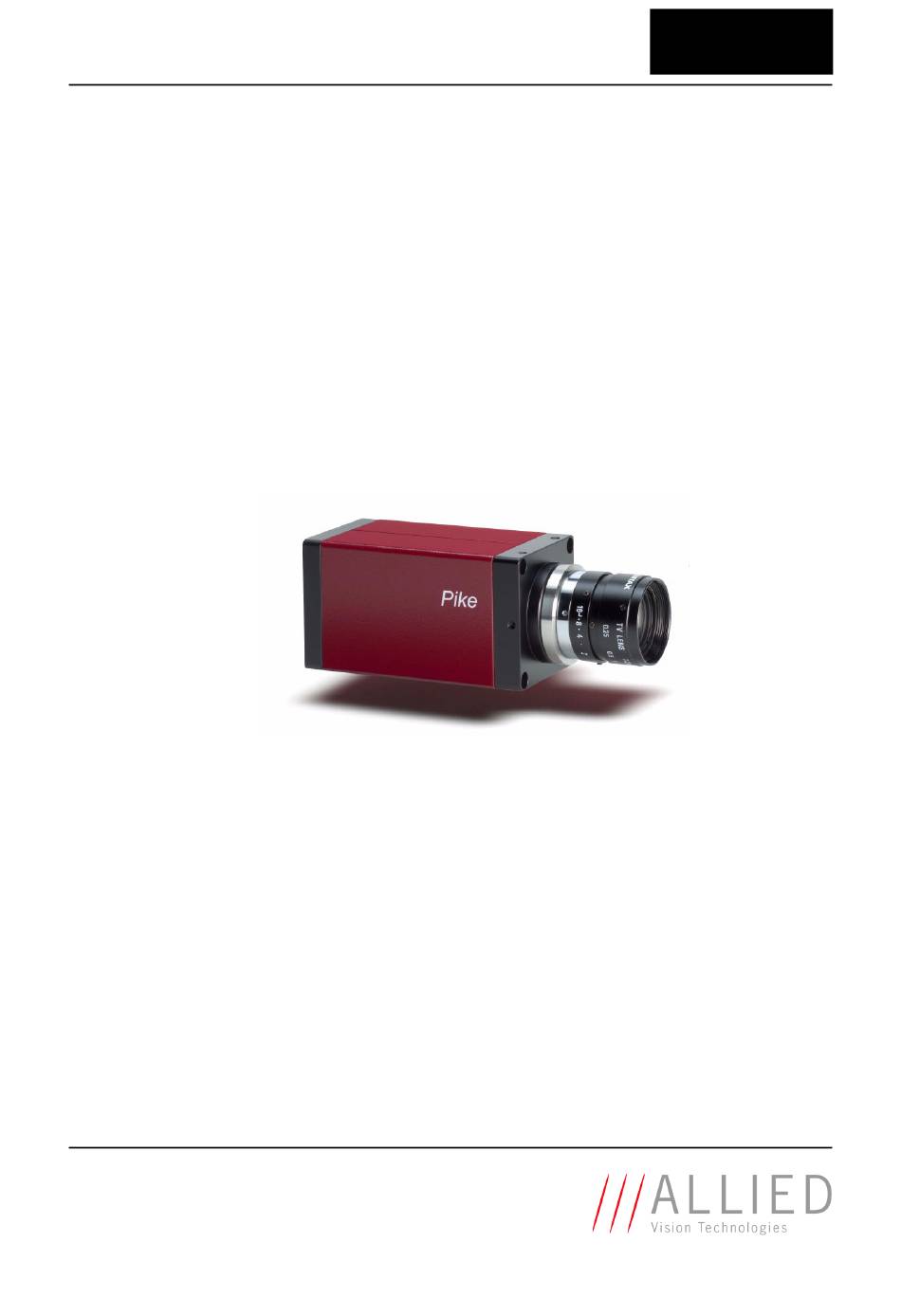

AVT Pike
Getting Started
V4.0.0
15 January 2008
Allied Vision Technologies GmbH
Taschenweg 2a
D-07646 Stadtroda / Germany

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIKE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Allied Vision PIKE Series

Summary of Contents for Allied Vision PIKE Series

  • Page 1 AVT Pike Getting Started V4.0.0 15 January 2008 Allied Vision Technologies GmbH Taschenweg 2a D-07646 Stadtroda / Germany...
  • Page 2 Technologies are brands protected by law. Warranty The information provided by Allied Vision Technologies is supplied without any guarantees or warranty whatsoever, be it specific or implicit. Also excluded are all implicit warranties con- cerning the negotiability, the suitability for specific applications or the non-breaking of laws and patents.

  • Page 3: Table Of Contents

    Contents Introduction ......................6 Document history ......................6 Conventions used in this manual..................7 Styles ........................7 Symbols ........................7 Before operation ......................7 Declarations of conformity ................8 Safety instructions ....................10 Reference documents applicable in the United States............10 Reference documents applicable in Europe ...............
  • Page 4 Troubleshooting ......................29 Further steps with cc1394 ....................30 Specifications .......................35 PIKE F-032B / F-032B fiber .................... 36 PIKE F-032C / F-032C fiber..................... 38 PIKE F-100B / F-100B fiber .................... 40 PIKE F-100C / F-100C fiber..................... 42 PIKE F-145B / F-145B fiber (-15fps*) ................44 PIKE F-145C / F-145C fiber (-15fps*) ................
  • Page 5 Inputs ........................91 Triggers......................93 Outputs ........................94 Output modes...................... 97 Firmware update ....................98 Index ...........................99 PIKE Getting Started V4.0.0...

  • Page 6: Introduction

    Introduction Introduction Document history Version Date Remarks PRE_V1.0.0 26.01.2006 New Manual - PRELIMINARY status PRE_V1.0.1 01.03.2006 New Manual - PRELIMINARY status; minor corrections PRE_V1.1.0 14.03.2006 New Manual - PRELIMINARY status; new tripod drawing V2.0.1 07.07.2006 New Manual - RELEASE status; minor corrections, class B, RoHS conformity V3.0.1 29.09.2006...

  • Page 7: Conventions Used In This Manual

    Introduction Conventions used in this manual To give this manual an easily understood layout and to emphasize important information, the following typographical styles and symbols are used: Styles Style Function Example bold Bold Programs, inputs or highlighting important things Input Courier Code listings etc.

  • Page 8: Declarations Of Conformity

    Declarations of conformity Declarations of conformity Allied Vision Technologies declares under its sole responsibility that the fol- lowing products Category Name Model Name Digital Camera (IEEE 1394) PIKE F-032B PIKE F-032C PIKE F-032B fiber PIKE F-032C fiber PIKE F-100B PIKE F-100C...
  • Page 9 Declarations of conformity Following the provisions of 89/336/EEC directive(s), amended by directive 91/263 EEC, 92/31/EEC and 93/68/EEC. *: also -15fps variant PIKE Getting Started V4.0.0...

  • Page 10: Safety Instructions

    Safety instructions Safety instructions Note • There are no switches or parts inside the camera that require adjustment. The guarantee becomes void upon opening the camera casing. • If the product is disassembled, reworked or repaired by other than a recommended service person, AVT or its suppliers will take no responsibility for the subsequent performance or quality of the camera.

  • Page 11: Cautions

    Safety instructions • Wired Electric Communication Detailed Law 17 by the Ministry of Posts and Telecom Law for Electric Equipment • Dentori law issued by the Ministry of Trading and Industry • Fire law issued by the Ministry of Construction Cautions Caution •...

  • Page 12: Pike Types And Highlights

    With Pike cameras, entry into the world of digital image processing is simpler and more cost-effective than ever before. With the new Pike, Allied Vision Technologies presents the broadest range of cameras in the market with IEEE 1394b interfaces. Moreover, with daisy chain as well as direct fiber technology they gain the highest level of acceptance for demanding areas of use in manufacturing industry.
  • Page 13 PIKE types and highlights Pike type Sensor Picture size (max.) Frame rates, Format_7 Mode_0 full resolution PIKE F-210B/C Type 1 KODAK KAI-2093 1920 (h) x 1080 (v) Up to 31 fps PIKE F-210B/C fiber Progressive Scan CCD imager PIKE F-421B/C Type 1.2 KODAK KAI-4021 2048 (h) x 2048 (v) Up to 16 fps...
  • Page 14 PIKE types and highlights Warning Special warning for all PIKE models with GOF connectors: GOF connectors are very sensitive. Any dust or dirt may cause damage. • Always keep the GOF connector and optical fiber plug clean. • If GOF connection is not in use, keep GOF dust cover on the GOF connector.

  • Page 15: System Components

    System components System components Each camera package consists of the following system components: AVT PIKE 4.5 m cable with screw locking Color version: Jenofilt 217 IR cut filter (built-in) B/w version: only protection glass (no filter) CD with driver and documentation Optional: tripod adapter Optional: GOF cable Optional: HIROSE connector for...
  • Page 16 To demonstrate the properties of the camera, all examples in this manual are based on the FirePackage OHCI API software and the SmartView application. These utilities can be obtained from Allied Vision Technologies (AVT). A free version of SmartView is available for download at: www.alliedvisiontec.com...

  • Page 17: Camera Lenses

    System components Camera lenses AVT offers different lenses from a variety of manufacturers. The following table lists selected image formats depending on camera type, distance and the focal length of the lens. Focal length Distance = 0.5 m Distance = 1 m for type 1/3 sensors PIKE F-032 4.8 mm...
  • Page 18 System components Focal length Distance = 0.5 m Distance = 1 m for type 1 sensors PIKE F-210 8 mm 0.6 m x 0.8 m 1.2 m x 1.6 m 12 mm 0.39 m x 0.52 m 0.78 m x 1.16 m 16 mm 0.29 m x 0.38 m 0.58 m x 0.76 m...

  • Page 19: Quick Start With Firepackage

    Quick start with FirePackage Quick start with FirePackage Hardware conditions • PC or laptop • IEEE 1394 adapter (OHCI) or PC card with IEEE 1394 port(s) Note AVT offers a wide range of IEEE 1394 adapters for different requirements. Operating system conditions •...

  • Page 20: Installing Ieee 1394 Adapter

    Quick start with FirePackage Installing IEEE 1394 adapter 1. PC: Install the IEEE 1394 adapter according to the instructions you got from your adapter manufacturer. Laptop: Insert the IEEE 1394 PC Card into your laptop. Windows 2000/XP will detect the hardware automatically and installs a Windows 1394 driver.

  • Page 21: Starting Smartview

    IEEE 1394 cameras • supports almost all smart features of the AVT cameras. 1. Click Start Programs Allied Vision Technologies FirePackage AVT_SmartView The SmartView window opens. 2. Here you can see all 1394 buses and PCI slots (e.g. 0x040800).

  • Page 22: Licensing

    The license file will be read from top to bottom until a valid license is found. Note For further information read the following: <install dir>\Allied Vision Technologies\FirePackage\Doc\ Licensing.pdf or ask your local dealer. First steps with SmartView 1.

  • Page 23: Troubleshooting

    Quick start with FirePackage Figure 3: SmartView: example of PIKE F-032C A SmartView window opens and usually one first image is shot auto- matically. Troubleshooting If the image is completely black, completely white or the image quality is poor, then try the following steps: •...

  • Page 24: Further Steps With Smartview

    Quick start with FirePackage Further steps with SmartView The following table shows the most important functions of SmartView avail- able via the icon bar. Icon Function Description FreeRun Acquires continuous images MultiShot Acquires multi images as set in the Edit Settings TriggerI/O tab Multishot counter combo box OneShot...
  • Page 25 Quick start with FirePackage Figure 4: SmartView: example of Edit Settings dialog (PIKE F-032C) Figure 5: SmartView: example of DirectAccess dialog (PIKE F-032C) PIKE Getting Started V4.0.0...

  • Page 26: Quick Start With Fire4Linux

    Quick start with Fire4Linux Quick start with Fire4Linux Hardware conditions • PC or laptop (x86 compatible system, Intel or AMD processor) • IEEE 1394 adapter (OHCI) or PC card with IEEE 1394 port(s) Note AVT offers a wide range of IEEE 1394 adapters for different requirements.

  • Page 27: Overview Fire4Linux

    Quick start with Fire4Linux Overview Fire4Linux Note Read the following documentation: • Open the following directory: <CD ROM>:\products\linux\AVT_Fire4Linux_x.y\ • Read the documents you find in this directory: – English: Fire4Linux_vx.y_Introduction.pdf – English: AVT Cameras and Linux.pdf – German: Fire4Linux_vx.y_Einführung.pdf – German: AVT Kameras und Linux.pdf •...
  • Page 28 Quick start with Fire4Linux SUSE Other Linux distributions Connect camera to PC or laptop: • Insert one end of the FireWire cable into your 1394 adapter or into your 1394 PC card in your laptop. • Insert the other end of the FireWire cable into your camera. •...

  • Page 29: Installing Ieee 1394 Adapter

    Quick start with Fire4Linux Installing IEEE 1394 adapter 1. PC: Install the IEEE 1394 adapter according to the instructions you got from your adapter manufacturer. Laptop: Insert the IEEE 1394 PC Card into your laptop. First steps with cc1394 1. Start cc1394. The cc1394 window opens and automatically acquires continuous images.

  • Page 30: Further Steps With Cc1394

    Quick start with Fire4Linux Further steps with cc1394 The following table shows the most important functions of cc1394 available via the menu bar. Menu Function Description 1. In menu click on: Free-run Acquires continuous images Adjustments Picture Controls... (default) 2. Click Trigger tab. 3.
  • Page 31 Quick start with Fire4Linux Menu Function Description In menu click on: Edit Opens a window Adjustments Picture Controls... Settings Here you can adjust the settings for the standard registers, e.g. exposure time or gain (IIDC spec- ification) and the settings for advanced AVT features.
  • Page 32 Quick start with Fire4Linux S800 Figure 6: cc1394: Example of Picture Control window, Partial Image tab (PIKE F-210C) PIKE Getting Started V4.0.0...
  • Page 33 Quick start with Fire4Linux Figure 7: Example of Direct Register Manipulation window (PIKE F-210C) PIKE Getting Started V4.0.0...
  • Page 34 Quick start with Fire4Linux Figure 8: Example of changing frame rates in the cc1394 window (PIKE F-210C) PIKE Getting Started V4.0.0...

  • Page 35: Specifications

    Specifications Specifications Note H-binning means horizontal binning. V-binning means vertical binning. H-sub-sampling means horizontal sub-sampling. V-sub-sampling means vertical sub-sampling. PIKE Getting Started V4.0.0...

  • Page 36: Pike F-032B / F-032B Fiber

    Specifications PIKE F-032B / F-032B fiber Feature Specification Image device Type 1/3 (diag. 5.92 mm) type progressive scan KODAK IT CCD KAI340 Lens mount Adjustable C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi) mechanical flange back to filter distance: 12.5 mm (see Figure 33: Pike C-Mount dimensions (VGA size filter for Pike F- 032)
  • Page 37 Specifications Feature Specification Digital interface IEEE 1394b (IIDC V1.31), 2 x copper connectors (bilingual) (daisy chain) fiber: IEEE 1394b, 2 connectors: 1 x copper (bilingual), 1 x GOF connector (2 x optical fiber on LCLC), (daisy chain) Power requirements DC 8 V - 36 V via IEEE 1394 cable or 12-pin HIROSE Power consumption Typical 5 watt (@ 12 V DC);...

  • Page 38: Pike F-032C / F-032C Fiber

    Specifications PIKE F-032C / F-032C fiber Feature Specification Image device Type 1/3 (diag. 5.92 mm) type progressive scan KODAK IT CCD KAI340 Lens mount Adjustable C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi) mechanical flange back to filter distance: 12.5 mm (see Figure 33: Pike C-Mount dimensions (VGA size filter for Pike F- 032)
  • Page 39 Specifications Feature Specification Smart functions AGC (auto gain control), AEC (auto exposure control), AWB (auto white balance), color correction, hue, saturation, real-time shading correction, LUT, 64 MByte image memory, mirror, sub-sampling, High SNR, storable user sets Two configurable inputs, four configurable outputs RS-232 port (serial port, IIDC V1.31) Transfer rate 100 Mbit/s, 200 Mbit/s, 400 Mbit/s, 800 Mbit/s...

  • Page 40: Pike F-100B / F-100B Fiber

    Specifications PIKE F-100B / F-100B fiber Feature Specification Image device Type 2/3 (diag. 10.5 mm) type progressive scan KODAK IT CCD KAI1020 Lens mount Adjustable C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi) mechanical flange back to filter distance: 12.5 mm (see Figure 34: Pike C-Mount dimensions (large filter for Pike F-100, F-145, F-210, F-421, F-505)
  • Page 41 Specifications Feature Specification Power requirements DC 8 V - 36 V via IEEE 1394 cable or 12-pin HIROSE Power consumption Typical 5 watt (@ 12 V DC); fiber: typical 5.75 watt (@ 12 V DC) Dimensions 96.8 mm x 44 mm x 44 mm (L x W x H); incl. connectors, w/o tripod and lens Mass 250 g (without lens)

  • Page 42: Pike F-100C / F-100C Fiber

    Specifications PIKE F-100C / F-100C fiber Feature Specification Image device Type 2/3 (diag. 10.5 mm) type progressive scan KODAK IT CCD KAI1020 Lens mount Adjustable C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi) mechanical flange back to filter distance: 12.5 mm (see Figure 34: Pike C-Mount dimensions (large filter for Pike F-100, F-145, F-210, F-421, F-505)
  • Page 43 Specifications Feature Specification Digital interface IEEE 1394b (IIDC V1.31), 2 x copper connectors (bilingual) (daisy chain) fiber: IEEE 1394b, 2 connectors: 1 x copper (bilingual), 1 x GOF connector (2 x optical fiber on LCLC), (daisy chain) Power requirements DC 8 V - 36 V via IEEE 1394 cable or 12-pin HIROSE Power consumption Typical 5 watt (@ 12 V DC);...

  • Page 44: Pike F-145B / F-145B Fiber (-15Fps*)

    Specifications PIKE F-145B / F-145B fiber (-15fps*) * Variant: F-145-15fps only This variant offers lower speed (only 15 fps), but better image quality. Feature Specification Image device Type 2/3 (diag. 11.2 mm) type progressive scan SONY ICX285 Lens mount Adjustable C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi) mechanical flange back to filter distance: 12.5 mm (see Figure 34: Pike C-Mount dimensions (large filter for Pike F-100,...
  • Page 45 Specifications Feature Specification Smart functions AGC (auto gain control), AEC (auto exposure control), real-time shading correction, LUT, 64 MByte image memory, mirror, binning, sub-sampling, High SNR, storable user sets Two configurable inputs, four configurable outputs RS-232 port (serial port, IIDC V1.31) Transfer rate 100 Mbit/s, 200 Mbit/s, 400 Mbit/s, 800 Mbit/s Digital interface...

  • Page 46: Pike F-145C / F-145C Fiber (-15Fps*)

    Specifications PIKE F-145C / F-145C fiber (-15fps*) * Variant: F-145-15fps only This variant offers lower speed (only 15 fps), but better image quality. Feature Specification Image device Type 2/3 (diag. 11.2 mm) type progressive scan SONY ICX285 Lens mount Adjustable C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi) mechanical flange back to filter distance: 12.5 mm (see Figure 34: Pike C-Mount dimensions (large filter for Pike F-100,...
  • Page 47 Specifications Feature Specification Smart functions AGC (auto gain control), AEC (auto exposure control), AWB (auto white balance), color correction, hue, saturation, real-time shading correction, LUT, 64 MByte image memory, mirror, sub-sampling, High SNR, storable user sets Two configurable inputs, four configurable outputs RS-232 port (serial port, IIDC V1.31) Transfer rate 100 Mbit/s, 200 Mbit/s, 400 Mbit/s, 800 Mbit/s...

  • Page 48: Pike F-210B / F210B Fiber

    Specifications PIKE F-210B / F210B fiber Feature Specification Image device Type 1 (diag. 15.3 mm) type progressive scan KODAK IT CCD KAI2093 Lens mount Adjustable C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi) mechanical flange back to filter distance: 12.5 mm (see Figure 34: Pike C-Mount dimensions (large filter for Pike F-100, F-145, F-210, F-421, F-505)
  • Page 49 Specifications Feature Specification Digital interface IEEE 1394b (IIDC V1.31), 2 x copper connectors (bilingual) (daisy chain) fiber: IEEE 1394b, 2 connectors: 1 x copper (bilingual), 1 x GOF connector (2 x optical fiber on LCLC), (daisy chain) Power requirements DC 8 V - 36 V via IEEE 1394 cable or 12-pin HIROSE Power consumption Typical 5.5 watt (@ 12 V DC);...

  • Page 50: Pike F-210C / F-210C Fiber

    Specifications PIKE F-210C / F-210C fiber Feature Specification Image device Type 1 (diag. 15.3 mm) type progressive scan KODAK IT CCD KAI2093 Lens mount Adjustable C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi) mechanical flange back to filter distance: 12.5 mm (see Figure 34: Pike C-Mount dimensions (large filter for Pike F-100, F-145, F-210, F-421, F-505)
  • Page 51 Specifications Feature Specification Smart functions AGC (auto gain control), AEC (auto exposure control), AWB (auto white balance), color correction, hue, saturation, real-time shading correction, LUT, 64 MByte image memory, mirror, sub-sampling, High SNR, storable user sets Two configurable inputs, four configurable outputs RS-232 port (serial port, IIDC V1.31) Transfer rate 100 Mbit/s, 200 Mbit/s, 400 Mbit/s, 800 Mbit/s...

  • Page 52: Pike F-421B / F-421B Fiber

    Specifications PIKE F-421B / F-421B fiber Feature Specification Image device Type 1.2 (diag. 21.4 mm) type progressive scan KODAK IT CCD KAI4021 Lens mount Adjustable C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi) mechanical flange back to filter distance: 12.5 mm (see Figure 34: Pike C-Mount dimensions (large filter for Pike F-100, F-145, F-210, F-421, F-505)
  • Page 53 Specifications Feature Specification Digital interface IEEE 1394b (IIDC V1.31), 2 x copper connectors (bilingual) (daisy chain) fiber: IEEE 1394b, 2 connectors: 1 x copper (bilingual), 1 x GOF connector (2 x optical fiber on LCLC), (daisy chain) Power requirements DC 8 V - 36 V via IEEE 1394 cable or 12-pin HIROSE Power consumption Typical 5.5 watt (@ 12 V DC);...

  • Page 54: Pike F-421C / F-421C Fiber

    Specifications PIKE F-421C / F-421C fiber Feature Specification Image device Type 1.2 (diag. 21.4 mm) type progressive scan KODAK IT CCD KAI4021 Lens mount Adjustable C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi) mechanical flange back to filter distance: 12.5 mm (see Figure 34: Pike C-Mount dimensions (large filter for Pike F-100, F-145, F-210, F-421, F-505)
  • Page 55 Specifications Feature Specification Smart functions AGC (auto gain control), AEC (auto exposure control), AWB (auto white balance), color correction, hue, saturation, real-time shading correction, LUT, 64 MByte image memory, mirror, sub-sampling, High SNR, storable user sets Two configurable inputs, four configurable outputs RS-232 port (serial port, IIDC V1.31) Transfer rate 100 Mbit/s, 200 Mbit/s, 400 Mbit/s, 800 Mbit/s...

  • Page 56: Pike F-505B / F-505B Fiber

    Specifications PIKE F-505B / F-505B fiber Feature Specification Image device Type 2/3 (diag. 11.016 mm) progressive scan SONY ICX625 Lens mount Adjustable C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi) mechanical flange back to filter distance: 12.5 mm (see Figure 34: Pike C-Mount dimensions (large filter for Pike F-100, F-145, F-210, F-421, F-505)
  • Page 57 Specifications Feature Specification Digital interface IEEE 1394b (IIDC V1.31), 2 x copper connectors (bilingual) (daisy chain) fiber: IEEE 1394b, 2 connectors: 1 x copper (bilingual), 1 x GOF connector (2 x optical fiber on LCLC), (daisy chain) Power requirements DC 8 V - 36 V via IEEE 1394 cable or 12-pin HIROSE Power consumption Typical 5.75 watt (@ 12 V DC);...

  • Page 58: Pike F-505C / F-505C Fiber

    Specifications PIKE F-505C / F-505C fiber Feature Specification Image device Type 2/3 (diag. 11.016 mm) type progressive scan SONY ICX625 Lens mount Adjustable C-Mount: 17.526 mm (in air); Ø 25.4 mm (32 tpi) mechanical flange back to filter distance: 12.5 mm (see Figure 34: Pike C-Mount dimensions (large filter for Pike F-100, F-145, F-210, F-421, F-505)
  • Page 59 Specifications Feature Specification Smart functions AGC (auto gain control), AEC (auto exposure control), AWB (auto white balance), color correction, hue, saturation, real-time shading correction, LUT, 64 MByte image memory, mirror, sub-sampling, High SNR, storable user sets Two configurable inputs, four configurable outputs RS-232 port (serial port, IIDC V1.31) Transfer rate 100 Mbit/s, 200 Mbit/s, 400 Mbit/s, 800 Mbit/s...

  • Page 60: Spectral Sensitivity

    Specifications Spectral sensitivity Figure 9: Spectral sensitivity of Pike F-032B Figure 10: Spectral sensitivity of Pike F-032C PIKE Getting Started V4.0.0...
  • Page 61 Specifications Figure 11: Spectral sensitivity of Pike F-100B Figure 12: Spectral sensitivity of Pike F-100C PIKE Getting Started V4.0.0...
  • Page 62 Specifications Figure 13: Spectral sensitivity of Pike F-145B Figure 14: Spectral sensitivity of Pike F-145C PIKE Getting Started V4.0.0...
  • Page 63 Specifications Figure 15: Spectral sensitivity of Pike F-210B Figure 16: Spectral sensitivity of Pike F-210C PIKE Getting Started V4.0.0...
  • Page 64 Specifications Figure 17: Spectral sensitivity of Pike F-421B Figure 18: Spectral sensitivity of Pike F-421C PIKE Getting Started V4.0.0...
  • Page 65 Specifications Figure 19: Spectral sensitivity of Pike F-505B Figure 20: Spectral sensitivity of Pike F-505C PIKE Getting Started V4.0.0...

  • Page 66: Camera Dimensions

    Camera dimensions Camera dimensions Note For information on sensor position accuracy: (sensor shift x/y, optical back focal length z and sensor rota- tion α) see PIKE Technical Manual, Appendix. PIKE standard housing (2 x 1394b copper) Note: different from GOF version see next page Body size: 96.8 mm x 44 mm x 44 mm (L x W x H) Mass: 250 g (without lens)

  • Page 67: Pike (1394B: 1 X Gof, 1 X Copper)

    Camera dimensions PIKE (1394b: 1 x GOF, 1 x copper) Note: different from 2 x copper version see previous page Body size: 96.8 mm x 44 mm x 44 mm (L x W x H) Mass: 250 g (without lens) Figure 22: Camera dimensions (1394b: 1 x GOF, 1 x copper) PIKE Getting Started V4.0.0...

  • Page 68: Tripod Adapter

    Camera dimensions Tripod adapter This tripod adapter is only designed for standard housings, but not for the angled head versions. Note If you need a tripod adapter for angled head versions, please contact AVT support. Figure 23: Tripod dimensions PIKE Getting Started V4.0.0...

  • Page 69: Pike W90 (2 X 1394B Copper)

    Camera dimensions Pike W90 (2 x 1394b copper) This version has the sensor tilted by 90 degrees clockwise, so that it views upwards. Figure 24: Pike W90 (2 x 1394b copper) PIKE Getting Started V4.0.0...

  • Page 70: Pike W90 (1394B: 1 X Gof, 1 X Copper)

    Camera dimensions Pike W90 (1394b: 1 x GOF, 1 x copper) This version has the sensor tilted by 90 degrees clockwise, so that it views upwards. Figure 25: Pike W90 (1394b: 1 x GOF, 1 x copper) PIKE Getting Started V4.0.0...

  • Page 71: Pike W90 S90 (2 X 1394B Copper)

    Camera dimensions Pike W90 S90 (2 x 1394b copper) This version has the sensor tilted by 90 degrees clockwise, so that it views upwards. The sensor is also rotated by 90 degrees clockwise. Figure 26: Pike W90 (1394b: 1 x GOF, 1 x copper) PIKE Getting Started V4.0.0...

  • Page 72: Pike W90 S90 (1394B: 1 X Gof, 1 X Copper)

    Camera dimensions Pike W90 S90 (1394b: 1 x GOF, 1 x copper) This version has the sensor tilted by 90 degrees clockwise, so that it views upwards. The sensor is also rotated by 90 degrees clockwise. Figure 27: Pike W90 S90 (1394b: 1 x GOF, 1 x copper) PIKE Getting Started V4.0.0...

  • Page 73: Pike W270 (2 X 1394B Copper)

    Camera dimensions Pike W270 (2 x 1394b copper) This version has the sensor tilted by 270 degrees clockwise, so that it views downwards. Figure 28: Pike W270 (2 x 1394b copper) PIKE Getting Started V4.0.0...

  • Page 74: Pike W270 (1394B: 1 X Gof, 1 X Copper)

    Camera dimensions Pike W270 (1394b: 1 x GOF, 1 x copper) This version has the sensor tilted by 270 degrees clockwise, so that it views downwards. Figure 29: Pike W270 (1394b: 1 x GOF, 1 x copper) PIKE Getting Started V4.0.0...

  • Page 75: Pike W270 S90 (2 X 1394B Copper)

    Camera dimensions Pike W270 S90 (2 x 1394b copper) This version has the sensor tilted by 270 degrees clockwise, so that it views downwards. The sensor is also rotated by 90 degrees clockwise. Figure 30: Pike W270 S90 (2 x 1394b copper) PIKE Getting Started V4.0.0...

  • Page 76: Pike W270 S90 (1394B: 1 X Gof, 1 X Copper)

    Camera dimensions Pike W270 S90 (1394b: 1 x GOF, 1 x copper) This version has the sensor tilted by 270 degrees clockwise, so that it views downwards. The sensor is also rotated by 90 degrees clockwise. Figure 31: Pike W270 S90 (1394b: 1 x GOF, 1 x copper) PIKE Getting Started V4.0.0...

  • Page 77: Cross Section: Cs-Mount (Only Pike F-032B/C)

    Camera dimensions Cross section: CS-Mount (only PIKE F-032B/C) Figure 32: Pike CS-Mount dimensions (only PIKE F-032B/C) PIKE Getting Started V4.0.0...

  • Page 78: Cross Section: C-Mount (Vga Size Filter)

    Camera dimensions Cross section: C-Mount (VGA size filter) PIKE F-032 cameras are equipped with VGA size filter. Figure 33: Pike C-Mount dimensions (VGA size filter for Pike F-032) PIKE Getting Started V4.0.0...

  • Page 79: Cross Section: C-Mount (Large Filter)

    Camera dimensions Cross section: C-Mount (large filter) PIKE F-100, PIKE F-145, PIKE F-210, PIKE F-421, PIKE-505 are equipped with a large filter. Figure 34: Pike C-Mount dimensions (large filter for Pike F-100, F-145, F-210, F-421, F-505) PIKE Getting Started V4.0.0...

  • Page 80: Adjustment Of C-Mount

    Camera dimensions Adjustment of C-Mount PIKE cameras allow the precise adjustment of the back focus of the C-Mount by means of a back focus ring which is threaded into the C-Mount and held by two screws on either side of the camera. The mechanical adjustment of the imaging device is important in order to achieve a perfect alignment with the focal point of the lens.

  • Page 81: F-Mount, K-Mount, M39-Mount

    Camera dimensions F-Mount, K-Mount, M39-Mount Note For other mounts (e.g. F-Mount, K-Mount) please contact your distributor. Note Pike F-210 and Pike F-421 can be equipped at factory site with M39-Mount instead of C-Mount. M39-Mount is ideally suited for Voigtländer (aka Voigtlander) short focal length optics.

  • Page 82: Camera Interfaces

    Camera interfaces Camera interfaces In addition to the two status LEDs (see Chapter Status LEDs on page 89), there are two jacks located at the rear of the camera. • The 12-pin camera I/O connector provides different control inputs and output lines.

  • Page 83: Pike Fiber

    Camera interfaces PIKE fiber All PIKE cameras are also available as fiber version with 1 x GOF connector and 1x copper connector. The GOF connector is of the following type: 2 x optical fiber on LCLC The GOF transmission uses MMF (multi-mode fiber at 850 nm). Connect the camera by using either of the connectors.
  • Page 84 Camera interfaces IEEE 1394b connector GOF IEEE 1394b connector (2x optical fiber on LCLC) (copper) Figure 40: Rear view of camera (1394b: 1 x GOF, 1 x copper) Warning Special warning for all PIKE models with GOF connectors: GOF connectors are very sensitive. Any dust or dirt may cause damage.

  • Page 85: Ieee-1394B Port Pin Assignment

    Camera interfaces IEEE-1394b port pin assignment The IEEE 1394b connector is designed for industrial use and has the following pin assignment as per specification: 6 7 8 Figure 41: IEEE 1394b connector Signal TPB- TPB+ TPA- TPA+ TPA (Reference ground) VG (GND) N.C.

  • Page 86: Camera I/O Connector Pin Assignment

    Camera interfaces Camera I/O connector pin assignment The camera I/O connector is also designed for industrial use and, in addition to providing access to the inputs and outputs on the camera, it also provides a serial interface for e.g. the firmware update. The following diagram shows the pinning as viewed in pin direction.
  • Page 87 Camera interfaces Order text Length Order number I/O cable 5.0 m E1000786 12-pin HIROSE female to open end I/O cable 10.0 m E1000749 12-pin HIROSE female to open end Table 26: Order numbers: trigger and I/O cables Figure 42: Camera I/O connector pin assignment Signal Direction Level...
  • Page 88 Camera interfaces Signal Direction Level Description CameraIn GND Common GND Camera Common Input Ground for inputs (In GND) Figure 46: Input Ground (InGND) (Pin no. 7 from cam- era I/O connector) on page 93 RxD_RS232 RS232 Terminal Receive Data TxD_RS232 RS232 Terminal Transmit Data CameraOutPower...

  • Page 89: Status Leds

    Camera interfaces Status LEDs On LED (green) The green power LED indicates that the camera is being supplied with suffi- cient voltage and is ready for operation. Status LED The following states are displayed via the LED: State Description Com/S1 (green) Asynchronous and isochronous data transmission active (indicated asynchronously to transmission via the 1394 bus)
  • Page 90 Camera interfaces The following sketch illustrates the series of blinks for a Format_7_error_1: Figure 43: Warning and error states You should wait for at least 2 full cycles because the display of blinking codes starts asynchronously - e.g. on the second blink from S2. PIKE Getting Started V4.0.0...

  • Page 91: Operating The Camera

    Camera interfaces Operating the camera Power for the camera is supplied either via the FireWire™ bus or the camera I/O connector's pin 2. The input voltage must be within the following range: Vcc min.: +8 V Vcc max.: +36 V Note •...
  • Page 92 Camera interfaces Flux voltage from LED type 1.5 V at 10 mA Initial on-current 5 mA Max. off-current 0.25 mA Max. input current 15 mA Min. pulse width 2.2 µs Table 30: Input characteristics: Flux voltage Cycle delay of the optical coupler tpdLH 2275 ns tpdHL...

  • Page 93: Triggers

    Camera interfaces Figure 45: Input block diagram 390R In1 – Pin 4 390R In2 – Pin 11 InGND – Pin 7 Figure 46: Input Ground (InGND) (Pin no. 7 from camera I/O connector) Triggers All inputs configured as triggers are linked by AND. If several inputs are being used as triggers, a high signal must be present on all inputs in order to gen- erate a trigger signal.

  • Page 94: Outputs

    Camera interfaces Outputs The camera has 4 non-inverting outputs with open emitters. These are shown in the following diagram: OutVCC – Pin 10 GPOut1 – Pin 6 GPOut2 – Pin 12 GPOut3 – Pin 5 GPOut4 – Pin 3 Figure 47: Output schematics with external resistors R (pin no. from camera I/O connector) Parameter Test condition Value...
  • Page 95 Camera interfaces OutVCC Resistor value 1 kΩ 12 V 2.4 kΩ 24 V 4.7 kΩ Note • Voltage above +45 V may damage the optical coupler. • The output connection is different to the AVT Dolphin series to achieve higher output swing. •...
  • Page 96 Camera interfaces Output features are configured by software. Any signal can be placed on any output. The main features of output signals are described below: Signal Description IntEna (Integration Enable) signal This signal displays the time in which exposure was made. By using a register this output can be delayed by up to 1.05 seconds.

  • Page 97: Output Modes

    Camera interfaces Output modes Mode Default 0x00 0x01 Output state follows PinState bit Using this mode, the Polarity bit has to be set to 0 (not inverted). This is necessary for an error free display of the output status. 0x02 Integration enable Output 1 0x03...

  • Page 98: Firmware Update

    Firmware update Firmware update Firmware updates can be carried out without opening the camera. Note For further information: • Read the application note: How to update Guppy/Pike firmware at AVT website or • Contact your local dealer. PIKE Getting Started V4.0.0...

  • Page 99: Index

    Index Index Free-Run ........... 30 further steps........30 Adjustments (menu) important functions......30 cc1394..........30 I/O (tab)........... 31 Adv 1 (SmartView tab) ......24 Main (tab)......... 31 Adv 2 (SmartView tab) ......24 Multi-Shot......... 30 Advanced (tab) Number of Frames....... 30 cc1394..........
  • Page 100 Index cc1394..........31 SmartView ......... 22 document history........6 Flux voltage input characteristics ......92 LED ..........92 focal length ..........17 Edit Settings Format (menu) cc1394..........31 cc1394 ..........29 SmartView ......... 24 Format (SmartView tab) ......24 emitter........... 94 FORMAT_7_ERROR_1.........
  • Page 101 Index input LICENSE.TXT ..........22 block diagram ........93 licensing ..........22 characteristics ........92 Linux Distributions........27 max. current ........92 LUT/Shdg. (SmartView tab) ....... 24 polarity setting ........97 signals..........92 type ..........95 Main (tab) input characteristics cc1394 ..........
  • Page 102 Index overview Reference documents Fire4Linux ......... 27 Europe..........10 FirePackage ........19 Japan ..........10 USA..........10 Register mapping........89 Resolution (menu) ........29 Partial Image (tab) RoHS (2002/95/EC)........8 cc1394..........31 RS232 ............ 88 partial scan..........13 RxD_RS232 ..........88 Picture Controls...
  • Page 103 Index styles ............7 IEEE-1394b........85 SUSE ............27 symbols ............ 7 system components ........15 www.alliedvisiontec.com......16 TPA- YaST ............27 IEEE-1394b........85 TPA(R) IEEE-1394b........85 TPA+ ............85 TPB- IEEE-1394b........85 TPB(R) IEEE-1394b........85 TPB+ ............85 IEEE-1394b........85 Trg (LED state) ........
