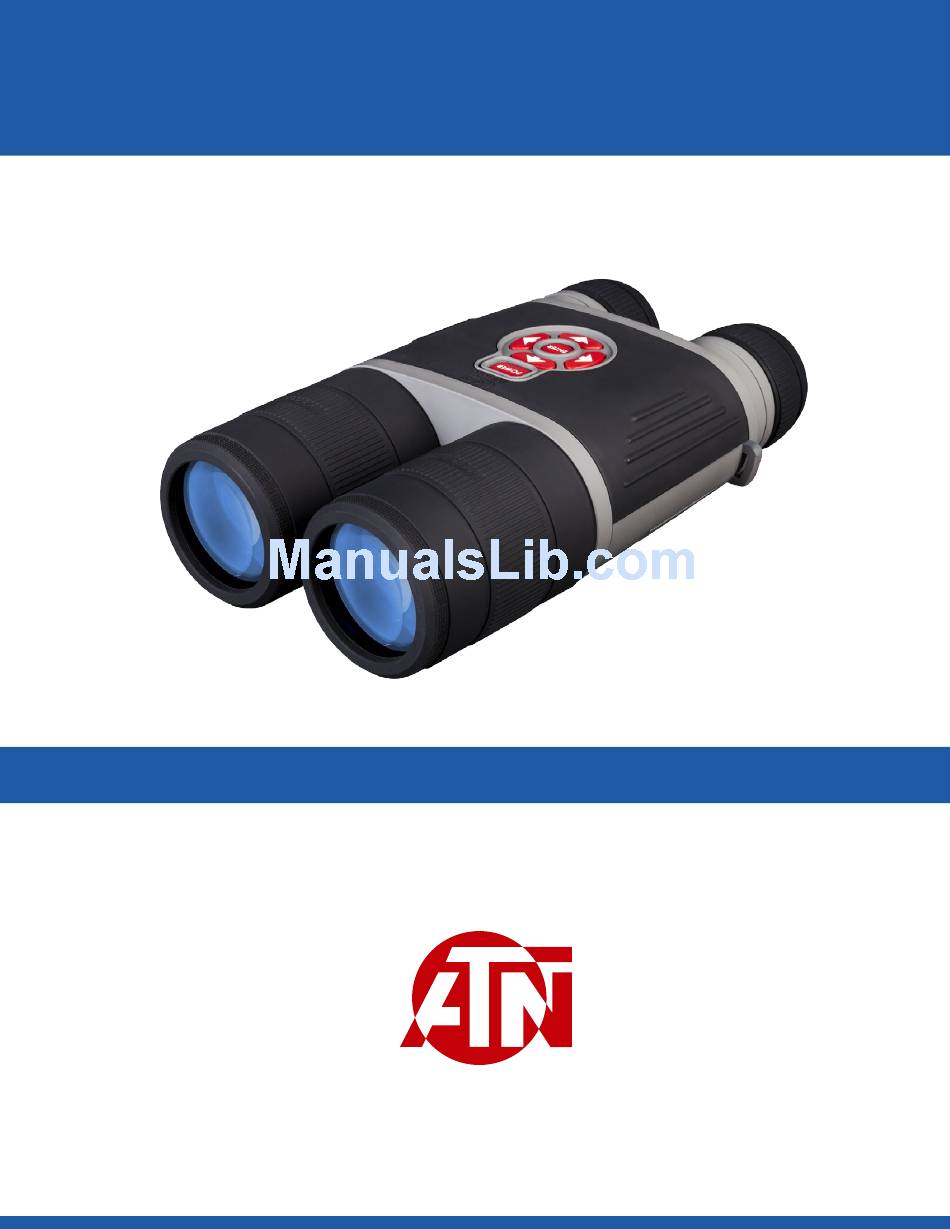

- Page 1 BinoX HD S M A R T H D B I N O C U L A R O P E R A T O R ’ S M A N U A L FOR WEB USER MANUAL VISIT: HTTP:// MANUAL.ATNCORP.COM / BINOX...
-
Page 2: Table Of Contents
The information in this manual is furnished for informational use only, is subject to change without notice, is not to be construed as a commitment by ATN Corp. ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book. ©2016 ATN Corp. All rights reserved. -
Page 3: Section I. Preparing The Device
S E C T I O N I PREPARING THE DEVICE... -
Page 4: Unpacking
1. 01. U N PAC K I N G The following steps must be accomplished prior to each mission where the device is used: 1 . Open packaging box, remove BinoX HD and check the contents 2 . Make sure that nothing is missing 3 . -
Page 5: Installation Of Batteries
1. 0 2 . I N S TA L L AT I O N O F B AT T E R I E S The BinoX HD will operate on three CR123 type batteries . NOTE We highly recommend using lithium CR123 batteries. They will provide much longer battery life. -
Page 6: Firmware Update
In the event of a power failure during an update the device may crash corrupting its system files and will need to be sent back to the ATN factory for service. It is important not to use additional sources of power during firmware update! Update the new firmware as follows: 1 . -
Page 7: On / Off
1. 0 5 .O N / O F F To TURN ON the device press and hold the POWER button until you see the ATN splash screen . To TURN OFF the device press and hold the POWER button, until the dialog box “Shut down the device?”... -
Page 8: Focus Ir (Left Lens)
1. 0 9 . M O U N T I N G O N A T R I P O D The BinoX HD is tripod mountable and can be mounted on tri- pods with a 1/4” thread mount . -
Page 9: Compass Calibration
1.10 . C O M PA S S CA L I B R AT I O N When the compass needs to be calibrated the word “CAL” appears instead of the Compass Scale . To cal- ibrate you should rotate the device on three axis as illustrated . -
Page 11: Section Ii. Interface
S E C T I O N I I INTERFACE... -
Page 12: Homescreen
2 . 01. H O M E S C R E E N First screen you’ll see after switching on the device is Homescreen . It consists of Scales, Status Bar icons and different Informational Widgets . SCALES E-Compass Scale shows yaw angle based on e-Magnetometer data . Roll Scale shows binocular cant based on internal 3D Gyroscope . -
Page 13: Main Operations
• only numerical value (Detailed Roll and Pitch Values) • icons with a numerical value which provide detailed numerical readings • Photo Preview (appears in the bottom of the homescreen, after the photo is taken) . Display widgets can be disabled from the System Menu . - Page 14 2 . 0 3 . S H O R T C U T CA R O U S E L The Carousel is your access to a number of Shortcuts that allows you quick access to additional features . Just click on the CENTER button from Homescreen to access the Carousel .
-
Page 15: Using System Menu
2 . 0 4 . U S I N G SYS T E M M E N U To enter the System Menu you should open Shortcut Carousel with CENTER button and select the wrench icon with RIGHT or LEFT buttons Then push CENTER button to enter the menu . - Page 16 To change a particular value you should follow the next few steps . Select the sub- category you need with the UP or DOWN buttons Press the Center button to select a particular value (once selected it will turn red) . Change the value with the UP and DOWN buttons To select a new value press CENTER...
-
Page 17: Section Iii. Functions
S E C T I O N I I I FUNCTIONS... -
Page 18: Night Vision
3 . 01. N I G H T V I S I O N To switch between Day and Night Mode you should choose NIGHT MODE in Shortcuts . Shortcuts allows you quick access to the Carousel that contains quick access to your units features . -
Page 19: Photo And Video Modes
3 . 0 2 . P H O T O A N D V I D E O M O D E S If you press the LEFT button while staying on the Homescreen to TAKE A PHOTO . You must have a microSD card inserted in the device for these features to work . All files will be stored on the microSD card . -
Page 20: Rangefinder
BURST Burst mode captures a series of photos . You can select the best image of the group or arrange them in a sequence to study the transitions in detail . The number of the photos taken can be changed in the System Menu . While you are in this mode, the Burst widget appears . - Page 21 Pressing the CENTER button will take you to the Main Screen of the Range- finder feature . To measure the distance, follow the next steps: 1 . Put the arrow-mark on the top of the target and press the CENTER button , wait for the binoc- ular to take the readings (it will take a number of readings so try to keep your binocular steady);...
-
Page 23: Section Iv. System Menu
S E C T I O N I V SYSTEM MENU... -
Page 24: Night Vision
4 . 01. N I G H T V I S I O N COLOR THEME — the color of Night Mode (Green or Black & White) . There is NO difference in light gain from Green to B&W . LIGHT SENSITIVITY —... -
Page 25: Display
4 . 0 3 . D I S P L AY SCREEN BRIGHTNESS — 1-5 with 1 being the dimmest and 5 the brightest . It is recommended that you use the bright- est setting during the day for optimal per- formance . - Page 26 FIRMWARE VERSION — allows you to see the firmware version currently running on your device . We recommend that you register your product on our Update Center (www .atncorp .com/firmware) in order to make sure that you are getting emails when new firmware versions become available . We are constantly working on new features, functions, and improvements that we provide to you free of charge via firmware upgrades .
-
Page 27: Section V. Servicing
S E C T I O N V SERVICING... -
Page 28: Warnings And Cautions
5 . 01. WA R N I N G S A N D CAU T I O N S • Always remember to turn off the device when it is not in use . If you do not plan on using it for a period of more than 10 days, you should remove the batteries . -
Page 29: Section Vi. Mobile Applications
S E C T I O N V I MOBILE APPLICATIONS... -
Page 30: Mobile Applications
6 . 01. M O B I L E A P P L I CAT I O N S By utilizing the ATN Obsidian app, you can control your device and view live streaming . Con- nect a phone or tablet and view everything simul- taneously . - Page 32 For customer service and technical support, please contact American Technologies Network Corp. 1341 San Mateo Avenue, South San Francisco, CA 94080 phone: 800-910-2862, 650-989-5100 e-mail: service@atncorp .com www.atncorp.com ©2016 ATN Corporation...
