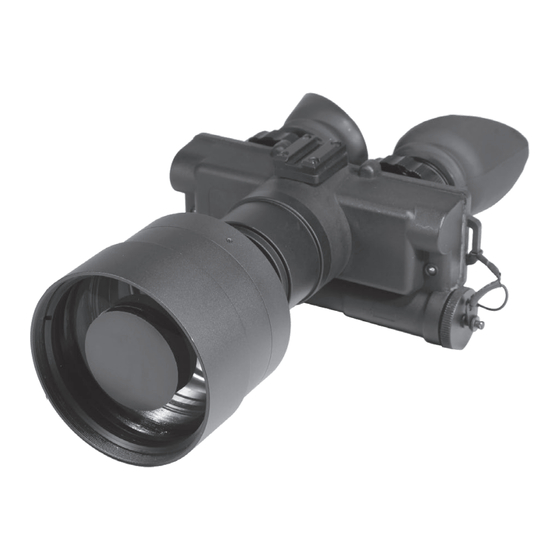

ATN NVB5X
NIGHT VISION BI-OCULAR
MANUAL (NVB5X) REV. 2 - JUNE, 2015
u s e r ' s
g u i d e
Important Export Restrictions! Commodities, prod-
ucts, technologies and services contained in this manual
are subject to one or more of the export control laws and
regulations of the U.S. Government and they fall under the
control jurisdiction of either the US Department of State
or the US BIS-Department of Commerce. It is unlawful
and strictly prohibited to export, or attempt to export or
otherwise transfer or sell any hardware or technical data
AMERICAN
or furnish any service to any foreign person, whether
abroad or in the United States, for which a license or writ-
TECHNOLOGIES
ten approval of the U.S. Government is required, without
NETWORK
first obtaining the required license or written approval
CORP.
from the Department of the U.S. Government having
jurisdiction. Diversion contrary to U.S. law is prohibited.
Advertisement
Table of Contents
Related Manuals for ATN NVB5X-2
Summary of Contents for ATN NVB5X-2
- Page 1 ATN NVB5X NIGHT VISION BI-OCULAR MANUAL (NVB5X) REV. 2 - JUNE, 2015 u s e r ’ s g u i d e Important Export Restrictions! Commodities, prod- ucts, technologies and services contained in this manual are subject to one or more of the export control laws and regulations of the U.S.
- Page 2 The information in this manual furnished for information use only, is subject to change without notice, is not to be construed as a commitment by ATN Corp. ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book. ©2015 ATN Corp. All right reserved.
-
Page 3: Specifications
Dimensions ..........200 x 150 x 75 mm (7.9” x 6” x 3”) Weight ............0.88 kg (1.95 lbs) * ATN reserves the right to change the above specifications at any time without notice FEATURES • Available IITs: 2+, CGT, HPT, WPT™, 3 and 3A •... -
Page 4: Battery Installation
BATTERY INSTALLATION Install standard CR123A batteries as follows: 1. Unscrew the battery cap (A). 2. Insert CR123 battery (B), observing the polarity as indi- cated. 3. Replace the battery cap and screw cap hand tight. OPERATION • Take the NVB5X out of the case. •... -
Page 5: Interpupillary Distance
The NVB5X has a short range IR built in for map reading and close up viewing and an attachable IR for longer range viewing. To turn on map reading IR rotate the ON/ Off switch one switch beyond the on posi- tion. -
Page 6: Storage And Care
The IR illuminator control buttons are located on its side. To switch the Digital IR illuminator on/off press “+” and “-” buttons simultaneously. When the IR illuminator is switched on you can see the green LED lit. By pushing the buttons “+” and “-” you may adjust the IR bright- ness. -
Page 7: Year Product Warranty
ATN, at its option, will either repair or replace the product, and such action on the part of ATN shall be the full extent of ATN’s liability, and the Customer’s sole and exclusive remedy. This warranty does not cover a product (a) used in other than its normal and customary manner;... - Page 8 For customer service and technical support, please contact American Technologies Network Corp. 1341 San Mateo Avenue, South San Francisco, CA 94080 phone: 800-910-2862, 650-989-5100; fax: 650-875-0129 www.atncorp.com ©2015 ATN Corporation...
