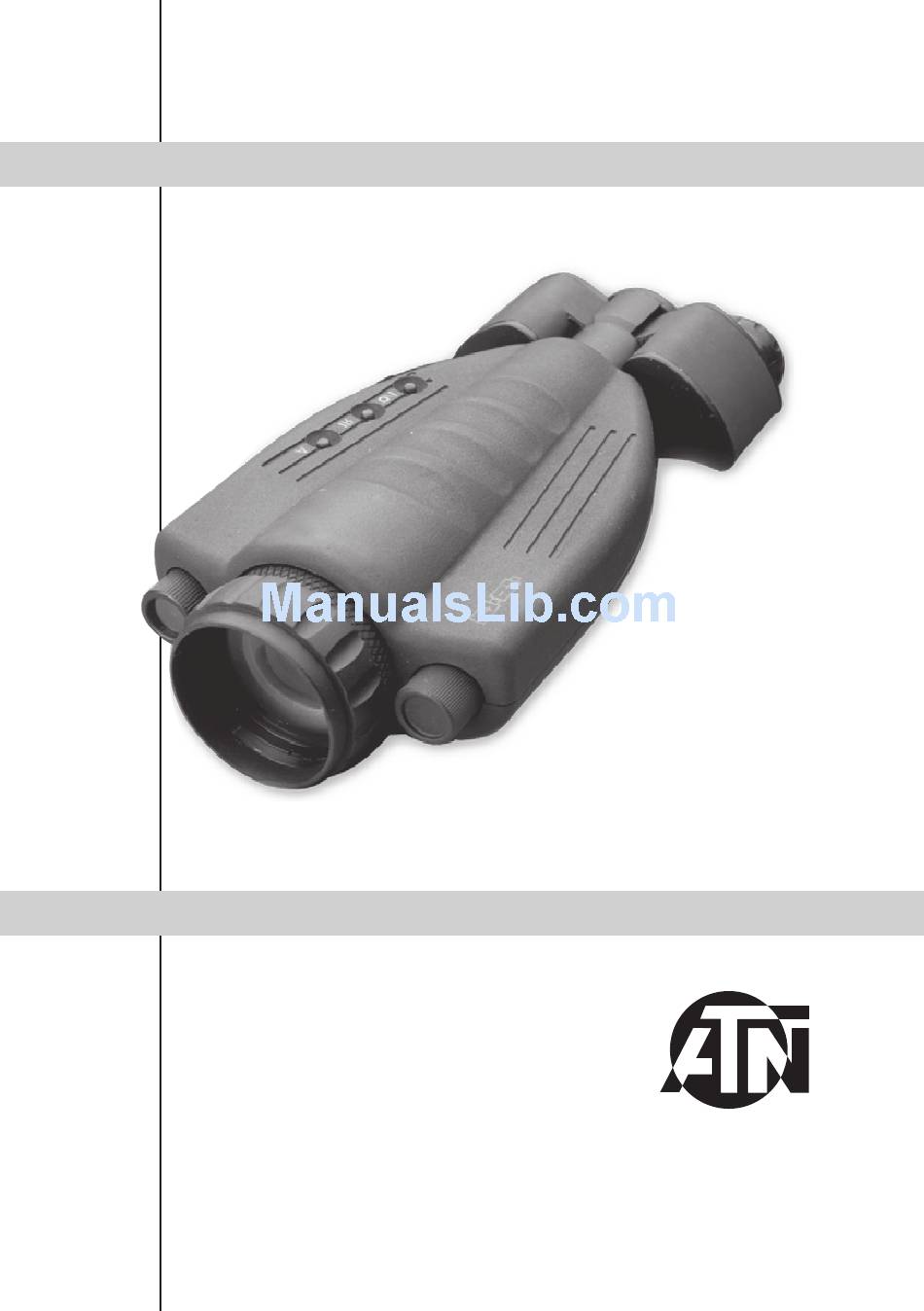

nighT Vision bi-oculAr
nIGht ShaDow USer'S GUIDe (rev. 3, JUne 2010)
u s e r ` s
g u i d e
important export restrictions ! Commodities,
products, technologies and services contained in
this manual are subject to one or more of the export
control laws and regulations of the U.S. Government
and they fall under the control jurisdiction of either the
US Department of State or the US BIS-Department
of Commerce. It is unlawful and strictly prohibited
to export, or attempt to export or otherwise transfer
or sell any hardware or technical data or furnish any
AmericAn
service to any foreign person, whether abroad or
in the United States, for which a license or written
Technologies
approval of the U.S. Government is required, without
neTwork
first obtaining the required license or written approval
from the Department of the U.S. Government having
corp.
jurisdiction. Diversion contrary to U.S. law is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Night Shadow and is the answer not in the manual?

Questions and answers

Summary of Contents for ATN Night Shadow

  • Page 1 Vision bi-oculAr nIGht ShaDow USer’S GUIDe (rev. 3, JUne 2010) u s e r ` s g u i d e important export restrictions ! Commodities, products, technologies and services contained in this manual are subject to one or more of the export control laws and regulations of the U.S.
  • Page 2: Optional Accessories

    Corp. atn Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book. ©2010 atn Corp. all right reserved.
  • Page 3: Specifications

    .... -40°C to +50°C Storage temperature ....-50°C to +70°C Dimensions ....... 255 x 122 x 78 mm (10”x 5”x 2”) weight ........1,2 kg (2.5 lbs.) * atn reserves the right to change the above specifications at any time without notice...
  • Page 4: Infra-Red Illuminator

    Shadow and save the life of the scope as well as batteries, press both the “SL” and the “+” buttons. After that the Voyager turns off when you move away from the scope.
  • Page 5: Low Battery Indicator

    NOTE: The Night Shadow inter-ocular distance could be adjusted manu- ally. to focus the night Shadow you will need to adjust the diopter first. Simply turn the diopter clockwise until it stops. then, while looking to an object, slowly turn the diopter back counter-clockwise until the grain on the image becomes sharp.
  • Page 6 *An important part to remember is that you are not taking a picture of the object that is far away from you, but you are actually taking a picture of the phosphorous screen of the Night Shadow that is only 2-3 inches away.
  • Page 7 NOTE: When attaching the doubler do not be afraid to use a little force. • Make sure that the unit is turned off. • Unscrew 90mm lens from the body of the Night Shadow • Screw the doubler onto the back of the lens.
  • Page 8: Operation

    operATion • Take the bioculars out of the case. • Install the batteries into the housing with the polarity order as shown on the bioculars. Battery type: 3-volt lithium, 2 x Cr123a. • Press the button marked O\I to turn the unit on with the protective lens covers still attached to the lenses.
  • Page 9: Cleaning The Eyepiece

    And cAuTions • Always remember to turn off the night Shadow when it is not in use. If you do not plan on us- ing your device for a period of more than 10 days, you should remove the batteries.
  • Page 10: Troubleshooting

    TroubleshooTing Q: Flashes, flickers, or clicking occur while operating s: If it occurs within the first five minutes of inserting new batteries it is normal and the device will resume normal operation soon thereafter. If it occurs after 10 minutes contact to your dealer or other authorized representative for service instructions.
  • Page 11: Year Product Warranty

    Customer’s sole and exclusive remedy. this warranty does not cover a product (a) used in other than its normal and customary manner;...
  • Page 12 800-910-2862, 650-989-5100; fax: 650-875-0129 European Office the following countries can use our toll free number: 00 800 9102-8620 austria, France, Germany, holland, Italy, Spain, Sweden, Switzerland For other countries, please use 38 048-7770214 or 38 048-7770345 www.atncorp.com ©2010 atn Corporation...
