Ambient Light Rejecting Fixed Frame Screen
Congratulations on your new ezFrame purchase!
CineGrey 5D™ which is a front projection material, precisely formulated for environments with minimal control
over room lighting. It was designed to enhance picture brightness, offer accurate color fidelity, and improve
contrast levels. The CineGrey 5D™ is best for family rooms, educational facilities, conference rooms, house of
worship or any applications in which incident light is a factor.
In order for the CineGrey 5D™ to maintain its projection qualities and optimum performance please refer to the
list below for proper maintenance and cleaning.
Use a dry microfiber cloth to remove dust from the screen's surface.
When cleaning, use a damp microfiber cloth with warm water to remove any marks.
Never rub or apply pressure when cleaning the surface.
Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.
In order to avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils or any
other sharp or abrasive objects.
Assembly Video
Watch our assembly video on-line at
www.elitescreens.com/video/ezframeCG5D
or scan the QR code

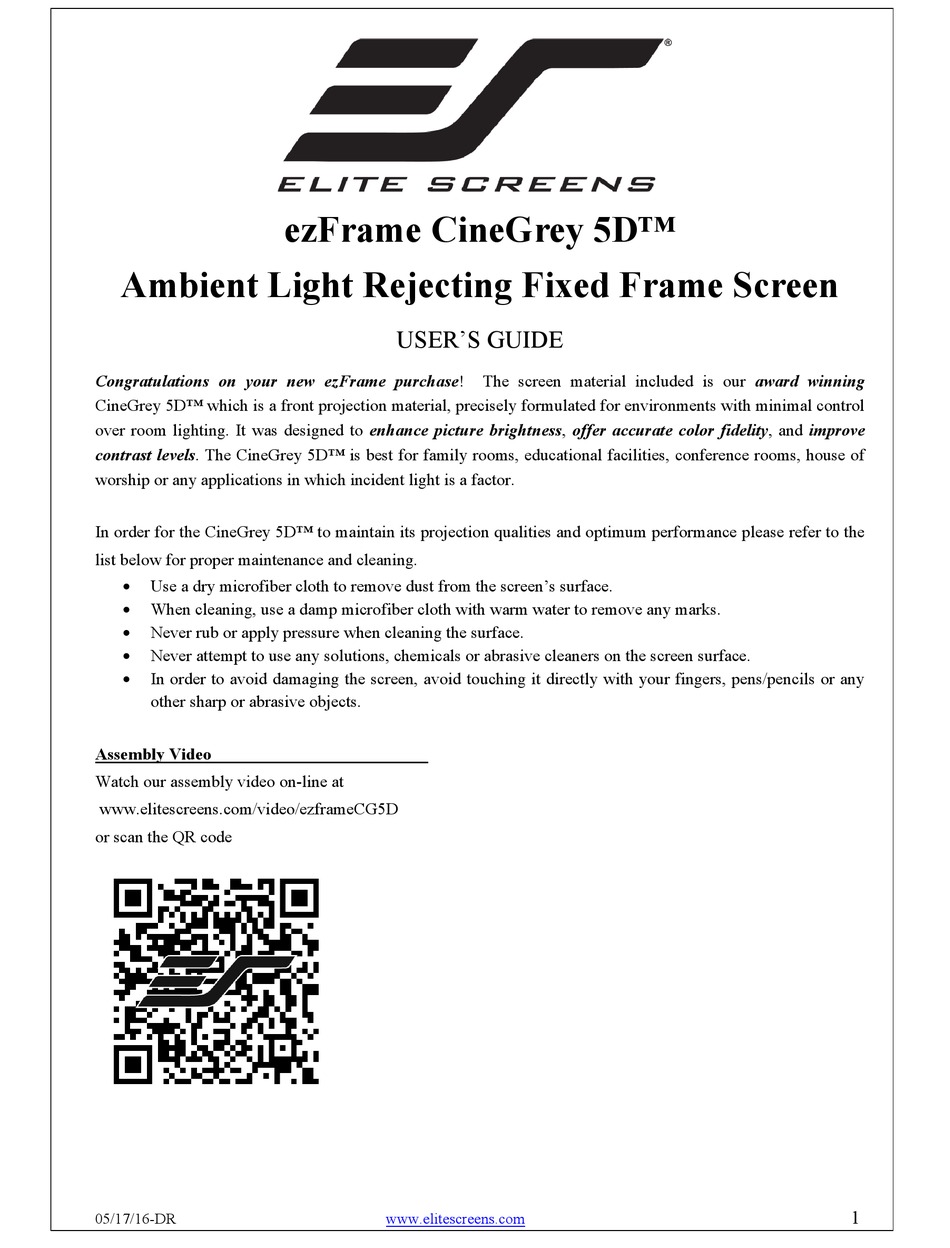

05/17/16-DR
ezFrame CineGrey 5D™
USER'S GUIDE
www.elitescreens.com
The screen material included is our award winning
1
