PRODUCT WHITE PAPER

Section 1: Screen Design

1.1
What is it for?

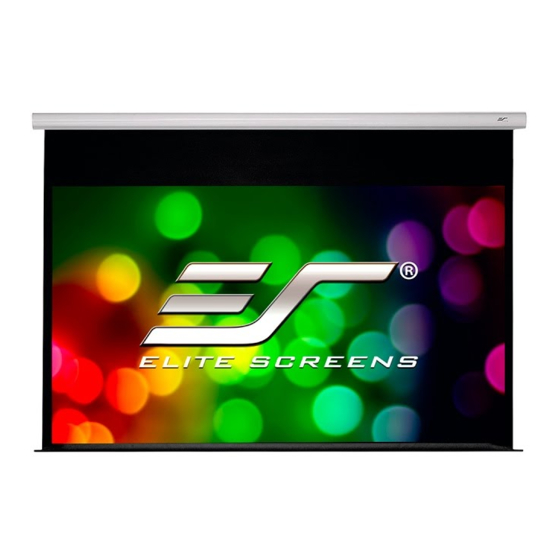

The Spectrum 2 Series Electric Projection Screen features a streamlined aluminum casing in a
white enamel coating with floating wall/ceiling brackets, designed to allow wood stud
installation.
1.2
How does it work?
It uses Elite's GREENGUARD® Certified MaxWhite® FG screen material that enhances the
picture quality with a wide viewing angle. Whether in the office or at home, the Spectrum 2 is
the best non-tensioned projection screen available.

Section 2: Product Features

2.1 Characteristics
Screen Material:
MaxWhite® FG (fiber-glass backing) 1.1 Gain
Screen material is flat, durable, easy to clean and mildew resistant
180 degree wide-viewing angle for commercial and residential presentations
Not compatible with Ultra/Short-throw Projectors
4 side black masking borders enhance contrast ratio and absorbs projector overshoot
Black backing on material for sharper picture and clarity
4K Ultra HD, Active 3D, and HDR Ready
Available in the following range of diagonal sizes:
91"/ 100"/ 110" and 120" in 16:9 format
Design and Installation:
Floating mount brackets allow easy alignment for a wall or ceiling installation
Suspended ceiling installation capable
Streamlined aluminum casing with white enamel coating is moisture resistant
Ships fully assembled with standard 3-prong power connection ready to Plug & Play
Control System:
3-way integrated up/stop/down control switch
Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India
Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia
http://www.elitescreens.com
SPECTRUM 2 SERIES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spectrum 2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elite Screens Spectrum 2 Series

  • Page 1: Section 1: Screen Design

    SPECTRUM 2 SERIES Section 1: Screen Design What is it for? The Spectrum 2 Series Electric Projection Screen features a streamlined aluminum casing in a white enamel coating with floating wall/ceiling brackets, designed to allow wood stud installation. How does it work? It uses Elite’s GREENGUARD®...
  • Page 2: Section 3: Screen Material Specifications

    * Manufacturer tip: This is an enhanced matte white product for higher end DLP/LCD projectors suitable for commercial and residential presentations. Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia...
  • Page 3 On-axis Gain Half-Gain Angle Does not reach half gain 3.2 Gain Chart Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia...
  • Page 4: Section 4: Execution

    Caution: The screen’s Black Top Drop is already set to its maximum drop distance. There is NO extra Black Top Drop in the roller. Please be aware of this as it will void your warranty with Elite Screens. Unapproved changes or modifications (except for cutting the power cord for hardwire installations) to this unit are prohibited and will void your warranty.
  • Page 5 Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia...
  • Page 6: Installation Instructions

    M4x50 Screw Anchor Mounting Bracket Fix Plate 2 Wall Mounting Bracket Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia...
  • Page 7 2. Install the Mounting Brackets (a) to the ceiling and secure with the M4x50 Screws (b). Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia...
  • Page 8 2. Connect the Suspended Ceiling Bracket Connector (d) to the Mounting Bracket (a) and secure with the M5x15 Screws& Bolts (e). Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia...
  • Page 9 2. Use the provided Bubble Leveler (f) to ensure the screen is level before plugging in the power cord. 3 Way Control Up/Stop/Down Switch Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia...
  • Page 10: Section 5: Product Specifications

    1956 2253 SPM138HT 3056 3236 3241 3251 1720 1890 1989 2649 Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia...
  • Page 11 PRODUCT WHITE PAPER http://www.elitescreens.com Drawings Pictures Spectrum2 Series Front View Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia...
  • Page 12 Top Black Masking Detail Suspended Ceiling Bracket Detail Flush Wall Bracket Detail Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia...
  • Page 13 PRODUCT WHITE PAPER http://www.elitescreens.com Toggle Switch Detail Bracket Detail End Cap Detail Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia...
  • Page 14 PRODUCT WHITE PAPER http://www.elitescreens.com Optional Remote Control Kit - ZPM-RT Life Style Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia...
  • Page 15: Section 6: About Elite Screens

    Section 6: About Elite Screens Company Description Elite Screens Inc. is a California based company that specializes in making quality commercial and home-theater projection screens for the retail and custom install sales channels. Our company began as an innovative venture into the projection market by manufacturing veterans from the AV/IT industry.
