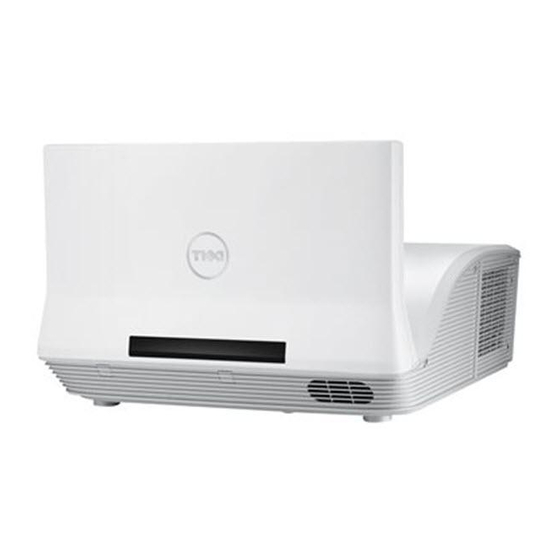

Dell™ Interactive Projector S510
User's Guide
Downloaded From projector-manual.com DELL Manuals

Advertisement

Table of Contents
loading

Related Manuals for Dell S510

Summary of Contents for Dell S510

  • Page 1 Dell™ Interactive Projector S510 User’s Guide Downloaded From projector-manual.com DELL Manuals...
  • Page 2 Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP and DLP logo are trademarks of T ;...

  • Page 3: Table Of Contents

    ... . IR Pen Interactivity Installation ....Managing the Projector From Web Management Contents Downloaded From projector-manual.com DELL Manuals...
  • Page 4 ....Appendix: Glossary ....Contents Downloaded From projector-manual.com DELL Manuals...

  • Page 5: Your Dell Projector

    Your Dell Projector Your projector comes with all the items shown below. Ensure that you have all the items, and contact Dell if anything is missing. Package Contents Power cable VGA cable (VGA to VGA) Remote control AAA Batteries (6)
  • Page 6 Power button Temp LED Lamp LED IR receivers Lamp cover Camera 10 W speaker Lens Focus ring Mounting holes for wall mount: Screw hole M4 x 8 mm depth. Recommended torque <10 kgf-cm Your Dell Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 7: About Your Interactive Pen

    As you turn on the pen, the power indicator flashes a few seconds and goes off. Green: Normal operation Red: Battery is low No light: Battery is empty Wrist strap holder Battery compartment access. Turn to open and replace batteries. Pen tip Your Dell Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 8 •Recommended Projector Wall Mount Kit (P/N: 7XY53). For more information, see the Dell Support website at dell.com/support. •For more information, see the Safety Information that shipped with your projector. •The S510 projector can only be used indoors. Your Dell Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 9: Connecting Your Projector

    Microphone connector (DoUSB) for USB Display VGA output (monitor loop Composite Video connector through) connector RJ-45 connector Audio-B input connector VGA-A input (D-sub) VGA-B input (D-sub) connector connector Audio-A input connector RS232 connector Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 10 CAUTION: Before you begin any of the procedures in this section, follow the Safety Instructions as described on page 8. Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 11: Connecting To A Computer

    VGA to VGA cable USB-A to Mini USB-B cable NOTE: The Mini USB cable must be connected if you want to use the Page Up and Page Down features on the remote control. Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 12 Monitor Loop-Through Connection Using VGA Cables Power cord VGA to VGA cable NOTE: Only one VGA cable is shipped with your projector. An additional VGA cable can be purchased on the Dell website at www.dell.com. Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 13 NOTE: The RS232 (9-pin D-sub female to female pin2-3 swap) cable is not shipped with your projector. Consult a professional installer for the cable and RS232 remote control software. Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 14 Power cord USB-A to USB-B cable NOTE: Plug and Play. Only one USB cable is shipped with your projector. An additional USB cable can be purchased on the Dell website at www.dell.com. Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 15 Connecting a Computer Using a HDMI Cable Power cord HDMI cable NOTE: The HDMI cable is not shipped with your projector. You can purchase the HDMI cable on the Dell website at www.dell.com. Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 16 The MHL cable is not shipped with your projector. NOTE: a Your smartphone or tablet must support MHL function. b Some smartphone or tablet need to connect the additional MHL adapter or adapter cable, please contact your dealer of devices. Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 17 Refer to your computer’s documentation on how to configure a wireless connection. ® NOTE: To connect a computer via Intel WiDi, your computer must ® be Intel WiDi compatible. Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 18 Android or iOS devices wirelessly. After installing and launching the application on your mobile device, enable Wi-Fi on your mobile device and connect to the projector network, Dell S510. For more Information, please visit go to Dell Support site at dell.com/support.

  • Page 19: Connecting A Dvd Player

    NOTE: The Composite Video cable is not shipped with your projector. You can purchase the Composite Video Extension (50 ft/100 ft) cable on the Dell website at www.dell.com. NOTE: The L/R audio cable is not shipped with your projector. Connecting Your Projector...
  • Page 20 NOTE: The VGA to Component Video cable and audio cable are not shipped with your projector. You can purchase the VGA to Component Video Extension (50 ft/100 ft) cable on the Dell website at www.dell.com. Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 21 STANDBY/ON ENTER DVD/USB HOME RETURN MENU Power cord HDMI cable NOTE: The HDMI cable is not shipped with your projector. You can purchase the HDMI cable on the Dell website at www.dell.com. Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 22 Connecting an External Speaker Using Audio Cable Power cord Audio cable NOTE: The audio cable is not shipped with your projector. Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 23: Connecting To Local Area Network

    RJ45 cable. Local Area Network (LAN) Power cord RJ45 cable NOTE: The RJ45 cable is not shipped with your projector. You can purchase the RJ45 cable on the Dell website at www.dell.com. Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 24 Commercial RS232 control box NOTE: The RS232 (9-pin D-sub female to female pin2-3 swap) cable is not shipped with your projector. Consult a professional technician to obtain the cable. Connecting Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 25: Using Your Projector

    Press the Power button again. The cooling fans continue to operate for 120 seconds. To power off the projector quickly, press the Power button and hold for 1 second while the projector’s cooling fans are still running. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 26: Adjusting The Projector Focus

    Do not spray cleaners or solvents directly on the projector. WARNING: Cleaning a wall-mounted projector can result in a fall or injury. You can remove the projector from the wall-mounting bracket to clean the projector's mirror. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 27: Adjusting Projection Image Size

    Adjusting Projection Image Size 0.597’ (18.2 cm) 70" (177.8 cm) 80" (203.2 cm) 87.2" (221.49 cm) 90" (228.6 cm) 100" (254 cm) Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 28 * This graph is for user reference only. * Offset Ratio: 125±5% NOTE: The distance from mirror to the rear of projector: 33.5 cm 33.5 cm Projection Distance [B] Projection Distance [A] Height Image Image Height Diagonal Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 29: Using The Remote Control

    Press to navigate through the On-Screen Display (OSD) Menu items. Press to navigate through the On-Screen Right Display (OSD) Menu items. Press to navigate through the On-Screen Down Display (OSD) Menu items. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 30 Pressing the Video Mode button once will show the current display mode. Pressing the Video Mode button again will switch between modes. Blank screen Press to hide/unhide the image. Press to confirm the selection. Enter Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 31 Display, USB Display, USB Viewer, Intel WiDi, and Internal Memory source. Auto Adjust Press to synchronize the projector with the input source. Auto adjust does not operate if the OSD is displayed. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 32: Installing The Remote Control Batteries

    Insert the batteries and align their polarity correctly according to the marking in the battery compartment. NOTE: Avoid mixing different types of batteries or using new and old batteries together. Slip the battery cover back. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 33: Replacing The Interactive Pen Tips

    Replacing the Interactive Pen Tips NOTE: If the pen tip becomes damaged or no longer works well, you should replace them. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 34: Replacing The Interactive Pen Batteries

    NOTE: Avoid mixing different types of batteries or using new and old batteries together. Place the pen head back, turn until the battery compartment access fully closed. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 35: Operating Range With Remote Control

    Auto Blank Blank Video Source Adjust Screen Screen Mode NOTE: Actual operating range may slightly differ from the diagram. Weak batteries will also prevent the remote control from properly operating the projector. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 36: Using The On-Screen Display

    Press to activate the Input Source USB menu. NOTE: The USB can be used after the "Wireless and LAN" option is turned on. — Press to detect a Composite Video signal. OMPOSITE Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 37 Intel® WIDI or NTEL IRACAST Miracast Guide screen. /LAN D — Press to access the projector's Wireless or IRELESS ISPLAY LAN Guide screen. See "Wireless/LAN Guide screen" on page 73. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 38 Allows you to playback the photo, video, music, and MS word, IEWER excel, powerpoint, and PDF files from your USB flash disk. AUTO ADJUST Auto Adjust automatically adjusts the projector's Horizontal, Vertical, Frequency, and Tracking in PC mode. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 39 Custom mode. VIDEO MODE The Video Mode menu allows you to optimize the display image: Presentation, Bright, Movie, sRGB (provides more accurate color representation), and Custom (set your preferred settings). Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 40 AUDIO EQ The Audio EQ menu allows you adjust the audio to boost or reduce (attenuating) the levels of different frequencies in a signal. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 41 —Select On or Off the VGA output function at projector UTPUT standby status. Default is Off. NOTE: If you adjust the settings for Color Temperature, RGB Color Adjust, and White Intensity the projector automatically switches to Custom mode. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 42 —Select On or Off the VGA output function at projector UTPUT standby status. Default is Off. NOTE: If you adjust the settings for Color Temperature, RGB Color Adjust, Saturation, Sharpness, Tint, and White Intensity the projector automatically switches to Custom mode. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 43 This is a coarse adjustment. —Synchronize the phase of the display signal with the RACKING graphic card. If you experience an unstable or flickering image, use Tracking to correct it. This is a fine adjustment. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 44 HDMI 1.4a 3D support and refresh rate are as below: 1280x720p@50 Hz Frame Packing 1280x720p@59.94/60 Hz Frame Packing 1920x1080p@23.98/24 Hz Frame Packing 1920x1080i@50 Hz Side by Side Half 1920x1080i@59.94/60 Hz Side by Side Half 1280x720p@50 Hz Top and Bottom Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 45 —If you see a discrete or overlapping image while NVERT wearing DLP 3D goggles, you may need to execute 'Invert' to get best match of left/right image sequence to get the correct image. (For DLP 3D goggles) Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 46 You can project from behind a translucent screen with a wall-mounted projection (for regular projection). •Front Projection-Wall Mount — The projector turns the image upside down for wall-mounted projection. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 47 Closed caption option is available for NTSC only. Closed captioning can only be enabled via Composite Video input. —Default is Dell logo as wallpaper. You can also select TARTUP CREEN Capture Screen option to capture the screen display. The following message appears on the screen.
  • Page 48 DNS—Check the DNS Server IP address with your network/system administrator if you configure it manually. —Press to save the changes made in network configuration TORE settings. NOTE: Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 49 DNS—Check the DNS Server IP address with your network/system administrator if you configure it manually. —Press to save the changes made in wireless configuration TORE settings. NOTE: Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 50 If you enable this feature, you will be asked to enter the projector’s password after you turn on the projector: Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 51 If you have entered an incorrect password, you will be given two more chances. After three invalid attempts, the projector will automatically turn off. NOTE: If you forget your password, contact DELL or a qualified service person. To disable the password function, select the Disabled option to close the function.
  • Page 52 —Key in the original password. Then, enter the new HANGE ASSWORD password and confirm the new password again. — Select and press to activate power settings. The OWER ETTINGS power settings menu provides the following options: Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 53 —Select and press to activate dynamic feature. YNAMIC —Select and press to activate extreme dimming XTREME IMMING feature. —Press and select the Confirm option to reset ESET the lamp hour. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 54 — The information menu displays the current S510 projector NFORMATION settings. LANGUAGE Allows you to set the language for the OSD. Press to activate the Language menu. HELP If you encounter problems with your projector, you can access the help menu for troubleshooting.

  • Page 55: Multimedia Introduction

    1920 x 1080, 30fps 20 Mbps 1080p, 60 Hz 1920 x 1080, 30fps 20 Mbps 1080p, 60 Hz 1920 x 1080, 30fps 20 Mbps 1080p, 60 Hz 1920 x 1080, 30fps 20 Mbps 1080p, 60 Hz Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 56 Music Type (ext Name) Max. Sample Rate (KHz) Max. Bit Rate (Kbps) LPCM 48 KHz 320 Kbps MPEG-1 Layer 3 48 KHz 320 Kbps 48 KHz 320 Kbps 48 KHz 320 Kbps 48 KHz 320 Kbps Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 57: How To Set-Up File Type For Multimedia With Usb

    Connect the power cable and turn on the projector by pressing the power button. Plug in a USB flash disk to your projector. Press the Menu button on the remote control. Aspect Ratio Page Up Page Down Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 58 Select the multimedia files: Photo, Video, Music, or Office Viewer, and then press the to start playing. Or select the Setup option to change multimedia settings. See "Multimedia Setup" on page 62. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 59: How To Set-Up File Type For Multimedia With Internal Memory

    Connect the power cable and turn on the projector by pressing the power button. Press the Menu button on the remote control. Aspect Ratio Page Up Page Down Access the Input Source menu, select Internal Memory source. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 60 Select the multimedia files: Photo, Video, Music, or Office Viewer, and then press the to start playing. Or select the Setup option to change multimedia settings. See "Multimedia Setup" on page 62. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 61: Office Viewer For The Usb And Internal Memory

    Use the up, down, left, and right buttons for navigation and button on the remote control to select. Button Down Left Right Enter Menu Previous Next Back to function function page page function previous menu Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 62: Multimedia Setup For Usb And Internal Memory

    Options are: Play once, Repeat item, Repeat folder, and Shuffle. MUSIC PLAY MODE—Press to select movie play mode. Options are: Play once, Repeat item, Repeat folder, and Shuffle. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 63: Using Intel ® Wireless Display (Widi)

    ® Intel HD Graphics 4400 ® Intel HD Graphics 4200 ® Intel HD Graphics 4000 ® Intel HD Graphics 3000 (mobile) ® Intel HD Graphics 2500 ® Intel HD Graphics 2000 (mobile) Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 64 Wireless Display must be pre-installed and enabled. Operating System One of the following operating systems is required: Microsoft Windows 7 Microsoft Windows 8 Microsoft Windows 8.1 ® For most up-to-date information, visit Intel WiDi website at www.intel.com/go/widi Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 65 Press the Menu button on the remote control. Aspect Ratio Page Up Page Down NOTE: , and buttons to navigate and to select. Access the Input Source menu, select Wireless/LAN and then select ® Intel WiDi/Miracast on the sub-menu. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 66 Type WiDi in your Windows search bar. If your computer has built-in ® ® Intel WiDi, you will see the "Intel WiDi" application in your search results. Connect your computer to Dell Projector. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 67 Key in Security Code as provided in Step 4 of Enable Intel? WiDi on Projector, for pairing confirmation. ® Renaming Intel WiDi Adapter Select "Settings". Select " ". Current Display Settings Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 68 WiDi with Microsoft Windows 8.1 ® NOTE: The Intel WiDi features are accessed differently in Windows ® 8.1, and the Intel WiDi software is not needed. Bring up the Devices Charm. Select "Project". Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 69 Select "Add a wireless display". Choose detected Dell Projector. ® Key in PIN as provided in Step 4 of Enable Intel WiDi on Projector for pairing confirmation. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 70 Screen is projected. To adjust projection modes or disconnect, bring up the Devices Charm, select "Project". Alternatively, use the shortcut "Win + P" for direct toggle. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 71: Wireless Display Or Lan Display Installation

    A supported WLAN adapter for a WLAN connection (any NDIS-compliant 802.11b or 802.11g or 802.11n Wi-Fi device) Web browser Microsoft Internet Explorer 6.0 or 7.0 (recommended) or 8.0, Firefox 2.0, Safari 3.0, and above Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 72: For Windows Operating System Settings

    Press the Menu button on the remote control. Aspect Ratio Page Up Page Down NOTE: , and buttons to navigate and select. Access the Input Source menu, select Wireless/LAN and then select Wireless/LAN Display on the sub-menu. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 73 For Wireless display settings, go to Step 5. For LAN display settings, go to Step 11. Install the Dell Projector Connection Manager on Your Computer by Wireless Connect your computer to the Dell S510 abcd wireless network. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 74 NOTE: • Your computer must have wireless network function to detect the connection. • When you connect to the Dell S510 abcd wireless network, you will lose wireless connectivity with other wireless networks. ® NOTE: Remember to turn off all proxies. (In Microsoft Windows Vista: Click Control Panel ...
  • Page 75 The S510 Web Management page opens. For first-time use, click Download. Select the appropriate operating system, then click Download. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 76 Windows XP. If your computer does not have the driver installed, a pop-up message will appear on-screen prompting you to install the required driver. You can download the “Audio Projection Driver” from the Dell Support site at dell.com/support. NOTE:...
  • Page 77 Launch the Dell Projector Connection Manager Once the installation is complete, the program will launch and search automatically. If the program does not launch automatically, you can double-click the icon on the desktop to start the application. Login Login with the Access Code provided in Step 4 of Wireless Display or LAN Display Installation, then click OK.
  • Page 78 Install the Dell Projector Connection Manager on Your Computer by The installation software will launch. Follow the on-screen instruction to complete setup. Repeat steps 6 - 10 to install Dell Projector Connection Manager. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 79 Launch and Login the Dell Projector Connection Manager Once the installation is complete, the program will launch and search automatically. If the program does not launch automatically, you can double-click the icon on the desktop to start the application. Click the "Manual Network Connection" (Fig.1).
  • Page 80 Click to activate the share mode. Display mode Click to change the display mode. Start Click to start projection. Pause Click to pause projection. Stop Click to stop projection. Audio Click to toggle audio projection On/Off. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 81 Using the Settings Click to display the settings menu. — Allows you to setup the resolution. ESOLUTION — Allows you to setup the default projection mode. ISPLAY Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 82 — Allows you to change the audio settings. UDIO USB D — Allows you to create USB dongle. See "Make Application ONGLE Token" on page 132. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 83 — Display the application version. BOUT Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 84: For Mac Operating System Settings

    Press the Menu button on the remote control. Aspect Ratio Page Up Page Down NOTE: , and buttons to navigate and select. Access the Input Source menu, select Wireless/LAN and then select Wireless/LAN Display on the sub-menu. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 85 For LAN display settings, go to Step 11. Launch the Dell Wireless Application Software on Your Computer by Wireless Connect your computer to the Dell S510 abcd wireless network. Open your Safari browser. You will be automatically directed to the S510 Web Management web page.
  • Page 86 Launch the Dell Wireless Application Software on Your Computer by Connect the LAN cable to the projector and the computer. Repeat steps 6 - 10 to launch the Dell Wireless Application. Login Login with the Access Code provided in Step 4 of Wireless Display or LAN Display Installation, then click Connect.
  • Page 87 Stop Click to stop projection. Pause Click to pause projection. Audio Projection Click to enable audio projection. Connection Status Connection Icon Blinks when projection is in progress. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 88 Allows you to set the projector quality is Blur but ROJECTION UALITY Faster or Clear but Slower. — Click to display system information. — Click to display the application version. BOUT — Click to close the application. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 89: Audio Projection Installation

    Windows XP, If your computer does not have the driver installed, a pop-up message will appear on-screen prompting you to install the required driver. You can download the “Audio Projection Driver” from the Dell Support site at dell.com/support. NOTE: Audio Projection function needs installed extra driver in Mac operating system.
  • Page 90 NOTE: Ports / Protocol for connection to the projector for projection via Ethernet: UDP: 1047, (backup: 1048, 1049) TCP: 3268, 515, 1688, 1041 (backup: 389, 8080, 21) Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 91 Connect the power cable and press the power button. Press the Menu button on the remote control. Aspect Ratio Page Up Page Down Access the Input Source menu, select the Wireless/LAN and then select the Wireless/LAN Display on the sub-menu. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 92 Install the Dell Projector Connection Manager on Your Computer by Wireless "Dell Projector Connection Manager" is required if the Wireless or LAN is used for the audio projection set-up. Please download and install the software the first time you use audio projection. If it is already installed, skip Step 5 - 6.
  • Page 93 Launch the Dell Projector Connection Manager Once the installation is complete, the program will launch and search automatically. If the program does not launch automatically, you can double- click the icon on the desktop to start the application. Login Login with the Access Code provided in Step 4 of Audio Projection Installation, then click OK.
  • Page 94 Install the Dell Projector Connection Manager on Your Computer by Connect the LAN cable to the projector and the computer. Refer to step 6 to install Dell Projector Connection Manager. Launch the Dell Projector Connection Manager Once the installation is complete, the program will launch and search automatically.
  • Page 95 Using the Audio Projection You are now logged into the Dell Projector Connection Manager. Click the "Play" button in the application to starting the LAN or wireless audio projection. Click the "Audio Projection" button in the application to toggle audio projection On/Off.
  • Page 96 Executing the Windows Media Player or others audio player software (example: Winamp player...) on your computer. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 97 Connect the power cable and press the power button. Press the Menu button on the remote control. Aspect Ratio Page Up Page Down Access the Input Source menu, select the Wireless/LAN and then select the Wireless/LAN Display on the sub-menu. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 98 For LAN display settings, go to Step 14. Launch the Dell Wireless Application Software on Your Computer by Wireless Connect your computer to the Dell S510 abcd wireless network. Open your Safari browser. You will be automatically directed to the S510 Web Management web page.
  • Page 99 Login with the Access Code provided in Step 4 of Audio Projection Installation, then click Connect. You are now logged into the S510 Wireless Application. Click "Play" button in the application to starting the wireless or LAN projection. Click “Audio Projection” button in the application to toggle audio projection On/Off.
  • Page 100 Launch the Dell Wireless Application Software on Your Computer by Connect the LAN cable to the projector and the computer. Repeat steps 6 - 13 to launch and login the Dell Wireless Application. Install the Soundflower Driver You can download the "Soundflower” driver from the some search engine sites (ex.

  • Page 101: Usb Display (Dousb) Installation

    Connected message will pop up and allow you to select DoUSB or Storage Mode. Select “DoUSB” option to switch to the USB Display source. NOTE: If the DoUSB can't display, please see "Troubleshooting Your Projector" on page 133. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 102 DoUSB function needs install driver in Mac operating system. If your Mac computer does not have the driver installed, a pop-up message will appear on-screen prompting you to install the required driver. See "Install the DoUSB Driver" on page 103. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 103 Double-click the “USB_DISPLAY” icon on the desktop. Execute the “ ” file from USB_DISPLAY MAC_USB_Display.pkg folder. The installation software will launch. Follow the on-screen instruction to complete setup. When installation is completed, restart your computer. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 104: Ir Pen Interactivity Installation

    Windows processor type: Intel Core i3 or above MAC processor type: Intel Core i2 duo or above Windows/MAC RAM: 2 GB of RAM required or more are recommended Windows/MAC Min. HDD space: 110 MB of available hard-disk space Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 105 Connect power, VGA, mini USB cables to projector. Dell S510 Power on the projector by pressing the power button on the remote control. Connect VGA and mini USB cables to your computer. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 106 If the "auto calibrate failed" message prompts, please take the steps below for troubleshooting, then do auto calibrate again. Turn lights off or reduce stray light to whiteboard Do not walk in front of or move the projector Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 107 2 seconds while the calibration data is saved. Turn on the power switch of the IR Pen. Point the IR Pen to the screen, and start using your IR Pen. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 108 Double-click PenDriver.zip file from the MAC folder. Execute the PenDriver.app in the Download folder. Refer to steps 5 - 7 to execute the initialize the control function and start using your IR Pen. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 109: Managing The Projector From Web Management

    IP address at the web browser. See "LAN Settings" on page 48. • Select the language for web management from the list. • Click any menu item on the left tab to access the page. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 110 Download the Dell Projector Connection Manager See also "Wireless Display or LAN Display Installation" on page 71. Click the Download button of the corresponding operating system of your computer. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 111 Split 4- The presentation from the computer appears on the lower right corner of the screen. • Stop - Projection from the computer is stopped. IP Address: Shows each computer’s IP Address. NOTE: To end the conference, click Home. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 112 An administrator password is required to access the Admin page. • Admin Password: Enter the administrator password and then click Login. The default password is "admin". To change the password, see "Change Passwords" on page 117. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 113 System Status Displays the Network Status, Connection Status, and Projector Status information. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 114 • Choose Auto to automatically set up the Start IP, End IP, Frequency Band, Subnet Mask, Default Gateway, and DNS Server address from a DHCP server, or Disable to disable this function. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 115 Internet connection capability. Set Security For SNMP • Setup Write Community information. Click the Apply button to save and apply changes. The projector must be restarted for the changes to take effect. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 116 Set up the Projector Name, Location, and Contact information (up to • 21 characters for each field). Click the Apply button to save and apply changes. The projector must be restarted for the changes to take effect. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 117 This page allows you to change the administrator password. • Enter New Password: Enter the new password. • Confirm New Password: Enter the password again and click Apply. NOTE: Contact Dell if you forget your administrator password. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 118 Reset to Default Click the Apply button to restore the wireless/network setup to its factory default settings. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 119 To start firmware update, follow these steps: You can download the firmware files from dell.com/support. Press Browse to select the file to update. Click the Update button to start. Wait while the system updates the firmware in your device.
  • Page 120 Temperature warning. Your projector might lock up in the protection mode if any of the alerts are activated. To exit the protection mode, click Clear to clear the Alert Status before you power on your projector. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 121 Click the Auto Adjust button to adjust the settings automatically. Audio Control • Volume: Select the value (0~20) for audio volume. Click the Factory Reset button to restore the factory default settings. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 122 Click the Save button to the save settings. NOTE: E-mail alert is designed to work with a standard SMTP server using the default 25 port. It does not support encryption and authentication (SSL or TLS). Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 123 Reboot System Click Reboot to reboot the system. Crestron Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 124 Click to toggle projector screen image freeze On/Off. Image mute button Click to toggle projector display On/Off. This function will not turn the projector power On/Off. Sources list panel Allows you to switch the projector's input source. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 125 (The name can contain up to 32 single-byte alphanumeric characters and symbols.) Assigned To Enter a user name for the projector. (The name can contain up to 32 single-byte alphanumeric characters and symbols.) Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 126 Enter the same password as you entered in New Password. If the passwords are not the same, an error is displayed. Send Click this button to confirm the changes made to the User Password. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 127 Enter the same password as you entered in New Password. If the passwords are not the same, an error is displayed. Send Click this button to confirm the changes made to the Admin Password. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 128 Why am I unable to access Check whether your computer/laptop the projector via the is connected to the Internet. Internet? Check with your MIS or network administrator whether your computer/laptop is in the same subnet. Using Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 129 Some SMTP servers will check whether the mail address of "From" correlates with the "User name" and "Password". For example, you use test@dell.com as the mail address in "From". You should also use test@dell.com account information for the User name and the password to log in the SMTP server.
  • Page 130 Click Options menu, then select Norton AntiVirus. On the Status page, select Internet Worm Protection. Find and select Dell Projector from the list of programs. Right-click on its Internet Access column. Select Permit All from the pop-up menu. Click OK.
  • Page 131 On the General tab, uncheck Don’t allow exceptions. On the Exceptions tab, click the Add Program... button. Find and select Dell Projector from the list of programs, then click OK. Click OK to confirm exceptions settings. Zone Alarm Open Zone Alarm Firewall (Start > All Programs >...

  • Page 132: Make Application Token

    The following screen appears. Click Next. Plug a flash drive into any of the USB ports on your computer. Select the drive from the list, then click Next. Click Finish to close the wizard. Using Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 133: Troubleshooting Your Projector

    Troubleshooting Your Projector If you experience problems with your projector, see the following troubleshooting tips. If the problem persists, contact Dell (see Contacting Dell on page 147). Problem Possible Solution • Ensure that you have chosen the correct No image appears on the...
  • Page 134 Partial, scrolling, or Press the Auto Adjust button on the incorrectly displayed image remote control. If you are using a Dell laptop computer, set the resolution of the computer to WXGA (1280 x 800): Right-click the unused portion of your ®...
  • Page 135 To replace the lamp, see "Changing the Lamp" on page 139. LAMP light is solid amber If the LAMP light is solid amber, replace the lamp. Troubleshooting Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 136 If the problem persists, contact Dell. The remote control is not The battery may be low. If so, replace with operating smoothly or two new AAA batteries. works only within a limited range Troubleshooting Your Projector Downloaded From projector-manual.com DELL Manuals...
  • Page 137 Contact your network administrator for support. IR Pen location offset Ensure the output resolutions of the projector and computer are 1280x800. Select "second screen only" on the computer. Troubleshooting Your Projector Downloaded From projector-manual.com DELL Manuals...

  • Page 138: Guiding Signals

    Dell. One of the fans has failed. The AMBER breakdown projector automatically shuts down. Flashing If the problem persists, contact Dell. Lamp driver The lamp driver has failed. The breakdown projector automatically shuts down. Unplug the power cord after three...

  • Page 139: Changing The Lamp

    Replace the lamp when the message "Lamp is approaching the end of its useful life in the operation. Replacement suggested! www.dell.com/lamps" appears on the screen. If this problem persists after replacing the lamp, contact Dell. For more information, see "Contacting Dell"...
  • Page 140 LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS. FOR MORE INFORMATION, GO TO WWW.DELL.COM/HG OR CONTACT THE ELECTRONIC INDUSTRIES ALLIANCE AT WWW.EIAE.ORG. FOR LAMP-SPECIFIC DISPOSAL INFORMATION, CHECK WWW.LAMPRECYCLE.ORG.

  • Page 141: Specifications

    PAL: B, D, G, H, I, M, N, 60 SECAM: B, D, G, K, K1, L Component Video input via VGA: 1080i, 720p, 576i/p, 480i/p HDMI input: 1080p, 720p, 576i/p, 480i/p Power Supply Universal AC 100-240 V 50-60 Hz with PFC input Specifications Downloaded From projector-manual.com DELL Manuals...
  • Page 142 Dimensions (W x H x D) 14.1 x 9.1 x 14.4 inches (357 x 231 x 367 mm) 9.1"(231 mm) IR Pen Dimensions (D x Φ) 6.39 x 0.71 (162.2 x 18 mm) Φ 0.71” (18 mm) 6.39”(162.2 mm) Specifications Downloaded From projector-manual.com DELL Manuals...
  • Page 143 RS232 port: One 9-pin D-sub for RS232 communication. USB (type A) port: One USB connector for multimedia playback (Video/Music/Photo/Office Viewer). USB (type B) port: One USB connector for supporting USB display and USB memory storage access (internal memory). Specifications Downloaded From projector-manual.com DELL Manuals...
  • Page 144 Specifications Downloaded From projector-manual.com DELL Manuals...
  • Page 145 • Control Commands List To view the latest RS232 code, go to the Dell Support site at support.dell.com. To view the latest SNMP commands and list, go to the Dell Support site at support.dell.com. Specifications Downloaded From projector-manual.com DELL Manuals...
  • Page 146 1280 x 1024 75.025 79.976 135.000 1440 x 900 74.984 70.635 136.750 1680 x 1050 59.954 65.290 146.250 1280 x 960 85.002 85.938 148.500 1920 x 1080 60.000 67.500 148.500 1024 x 768 119.989 97.551 115.500 Specifications Downloaded From projector-manual.com DELL Manuals...

  • Page 147: Contacting Dell

    Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: 1 Visit go to www.dell.com/contactDell.

  • Page 148: Contacting Crestron

    Availability varies by country, but an e-mail to getroomview@crestron.com can be directed appropriately for users in any country. Technical Support In the US and Canada Phone: 877-516-5394 Email: roomviewsupport@crestron.com Outside the US and Canada Phone: +1 201-367-1037 Email: roomviewsupport@crestron.com Contacting Dell Downloaded From projector-manual.com DELL Manuals...

  • Page 149: Appendix: Glossary

    (full on) and the light output of an all black (full off) image. ANSI — measures a pattern of 16 alternating black and white rectangles. The average light output from the white rectangles is divided by the Glossary Downloaded From projector-manual.com DELL Manuals...
  • Page 150 802.11b/g/n uses the 2.4 GHz band. Keystone Correction — Device that will correct an image of the distortion (usually a wide-top narrow-bottom effect) of a projected image caused by improper projector to screen angle. Glossary Downloaded From projector-manual.com DELL Manuals...
  • Page 151 XGA — Extended Video Graphics Array — 1024 x 768 pixels count. WXGA — Wide Extended Graphics Array — 1280 x 800 pixels count. Glossary Downloaded From projector-manual.com DELL Manuals...
  • Page 152 VGA-B input (D-sub) RS232 cable 13 connector 9 To Computer 11 Contact Dell 5 USB to USB cable 11 USB-A to USB-B cable 14 VGA to VGA cable 11 VGA to YPbPr cable 20 Index Downloaded From projector-manual.com DELL Manuals...
  • Page 153 Number of Pixels 141 AUDIO INPUT 40 Power Consumption 142 AUTO ADJUST 38 Power Supply 141 BRIGHTNESS/CONTRAST 39 Projection Distance 141 HELP 54 Projection Lens 141 INPUT SOURCE 36 Projection Screen Size 141 INPUT SOURCE MULTIPLE Index Downloaded From projector-manual.com DELL Manuals...
  • Page 154 RS232 Protocol 145 Uniformity 141 Video Compatibility 141 Weight 142 support contacting Dell 147 telephone numbers 147 Troubleshooting 133 Contact Dell 133 Index Downloaded From projector-manual.com DELL Manuals...

Table of Contents
