RUGGEDCOM RX1000
Installation Guide
Communication Ports
The RX1000 can be equipped with various types of communication ports to enhance its abilities and
performance. To determine which ports are equipped on the device, refer to the factory data file available through
ROX . For more information on how to access the factory data file, refer to the ROX User Guide for the RX1000.
Each communication port type has a specific place in the RX1000 chassis.

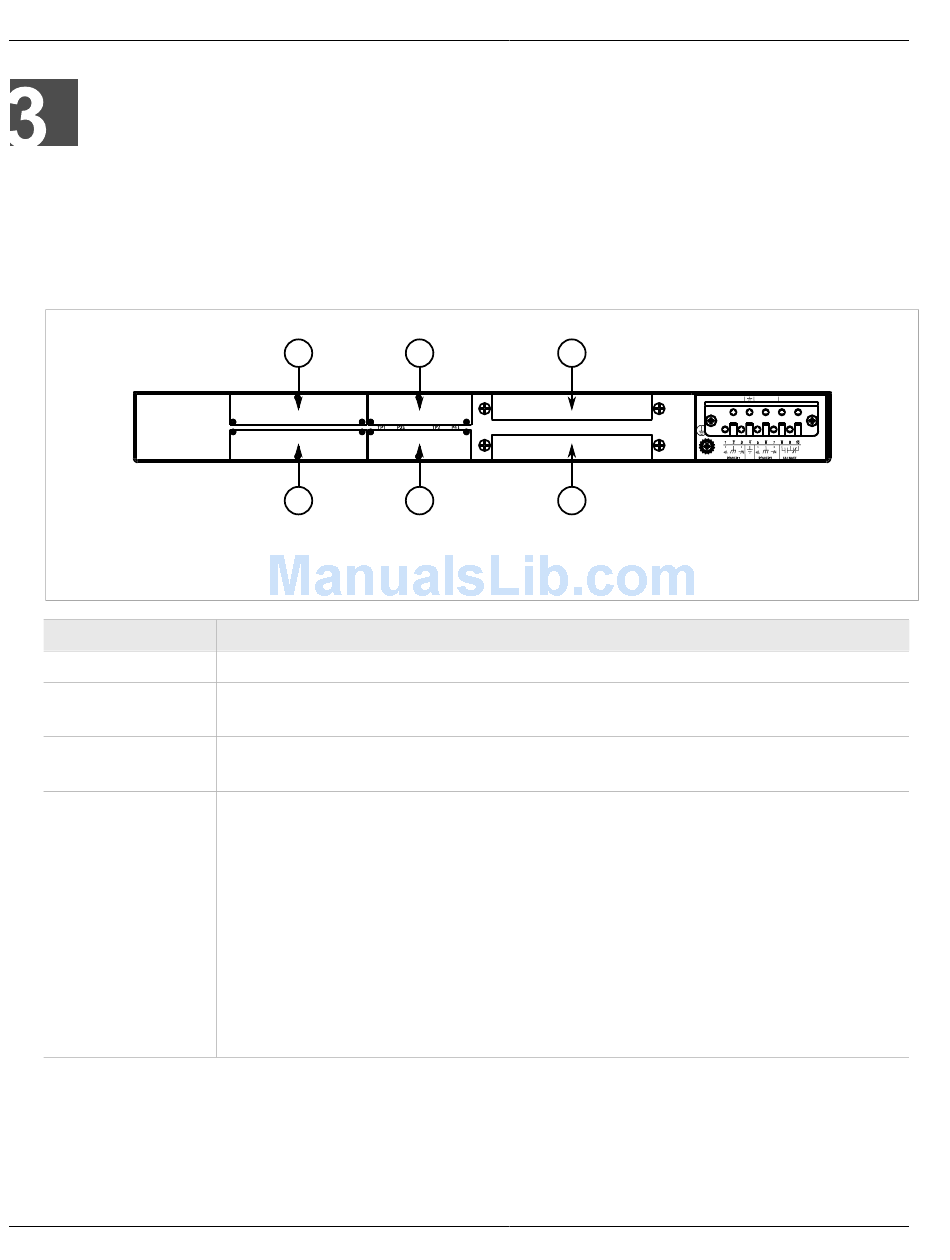

Figure 15: Port Assignment
1. Slot 1
2. Slot 2
3. Slot 3
Slot(s)
1
1, 2
3, 4
5, 6
The following sections describe the available ports in more detail:
•
Section 3.1, "Copper Ethernet Ports"
•
Section 3.2, "WAN Ports"
•
Section 3.3, "DSL Ports"
1
2
4. Slot 4
5. Slot 5
6. Slot 6
Communication Port
GSM/EDGE cellular modem
V.90 modem
RS232 external modem
Copper 10/100Base-Tx Ethernet with RJ45 ports
Fiber 100Base-FX multi-mode or single-mode Ethernet with ST, SC, LC or MTRJ ports
Single T1/E1 Channelized/Unchannelized
Dual T1/E1 Channelized/Unchannelized
Quad T1/E1 Channelized/Unchannelized
Clear Channel T3 DS3 card
DSL card
56 kBbps DDS DSU/CSU card
Precision Time Protocol (PTP) card
Serial RS232/RS422/RS485 card with RJ45 ports
Synchronous dual serial card with DB25 ports
GSM/EDGE/HSPA cellular modem
EVDO Rev.A Verizon (US) wireless cellular modem
3
5
4
6
Chapter 3
Communication Ports
17
