Chapter 2
Installing the Device
Section 2.2.3

Wiring Examples

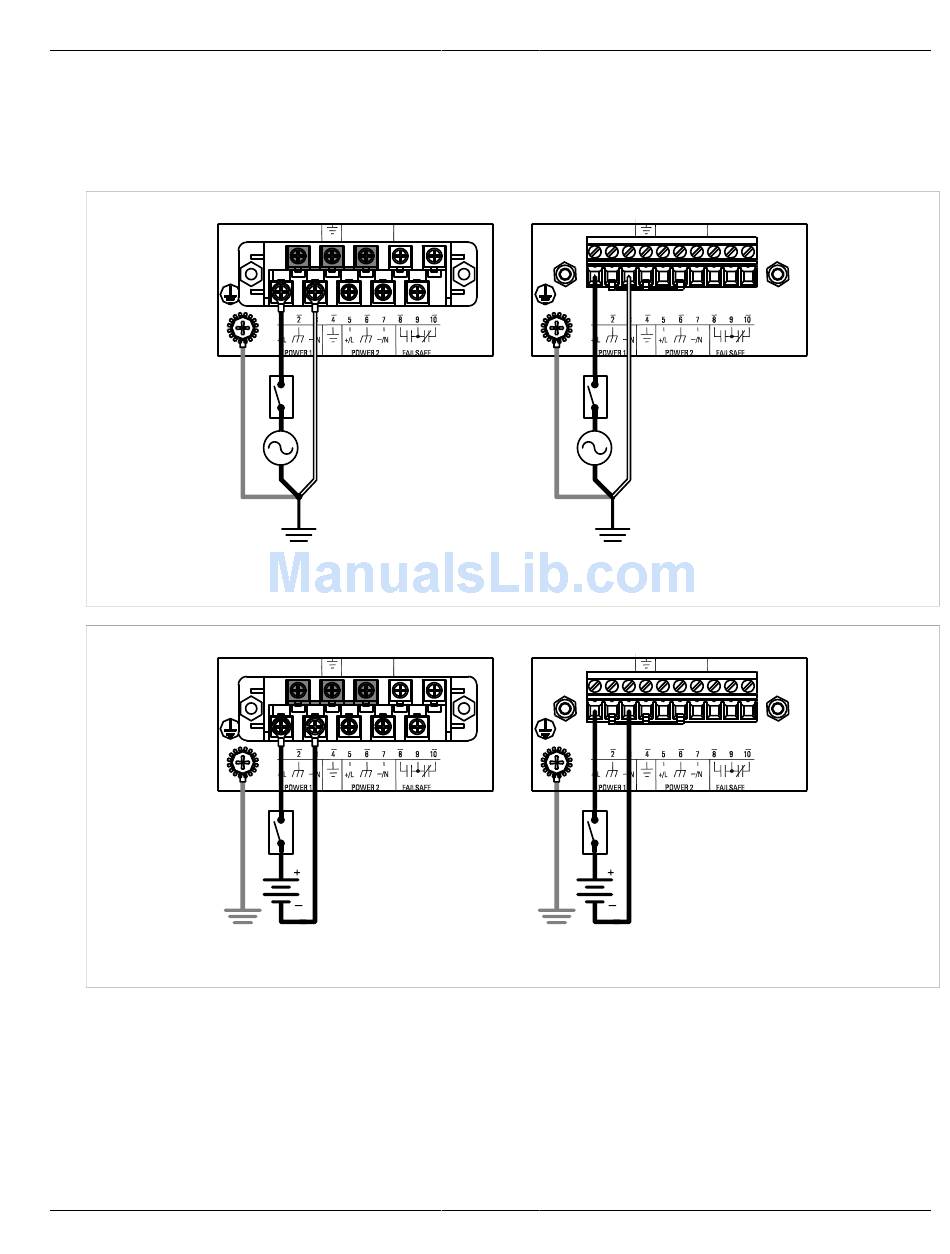

The following illustrate how to connect power to single and dual power supplies.
Figure 7: Single AC Power Supply
Figure 8: Single DC Power Supply
12
RUGGEDCOM RX1000
Installation Guide
Wiring Examples
