Section 3.6
Serial Ports
The RX1000 supports serial cards with DB25 or RJ45 serial ports. Serial RJ45 ports can be run in RS232, RS485
or RS422 mode.
NOTE
On power-up, all serial RJ45 ports default to RS485 mode. Each port can be individually set to RS232,
RS485 or RS422 mode through ROX . For more information, refer to the ROX User Guide for the
RX1000.
NOTE
For information about how to connect devices configured to run in RS485 mode, refer to
"Connecting Multiple RS485
All serial ports feature an LED that indicates the current state of the port.
State
Green
Off
For specifications on serial ports, refer to
The following is the pin-out description for DB25 and RJ45 serial ports:
1
14

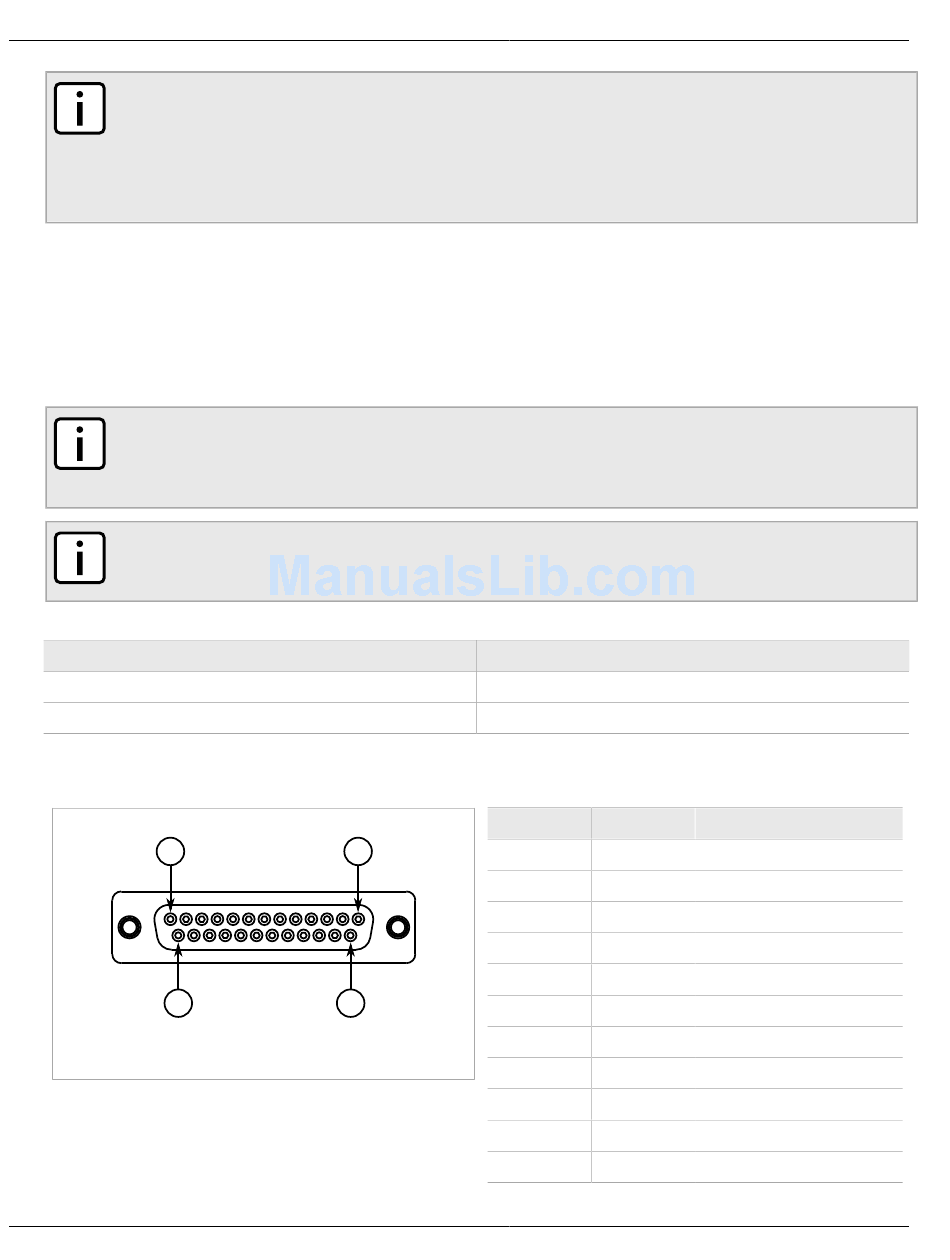

Figure 21: Serial DB25 Port Pin Configuration
Serial Ports
Devices".
Description
Link activity detected
No link detected
Section 4.4, "Serial Port
13
25
Specifications".
Pin
Name
1
2
TxD
3
RxD
4
RTS
5
CTS
6
7
GND
8
DCD
9
10
11
Chapter 3
Communication Ports
Section 3.10,
Description
Transmit Data
Receive Data
Request To Send
Clear To Send
Common Ground
Carrier Detect
