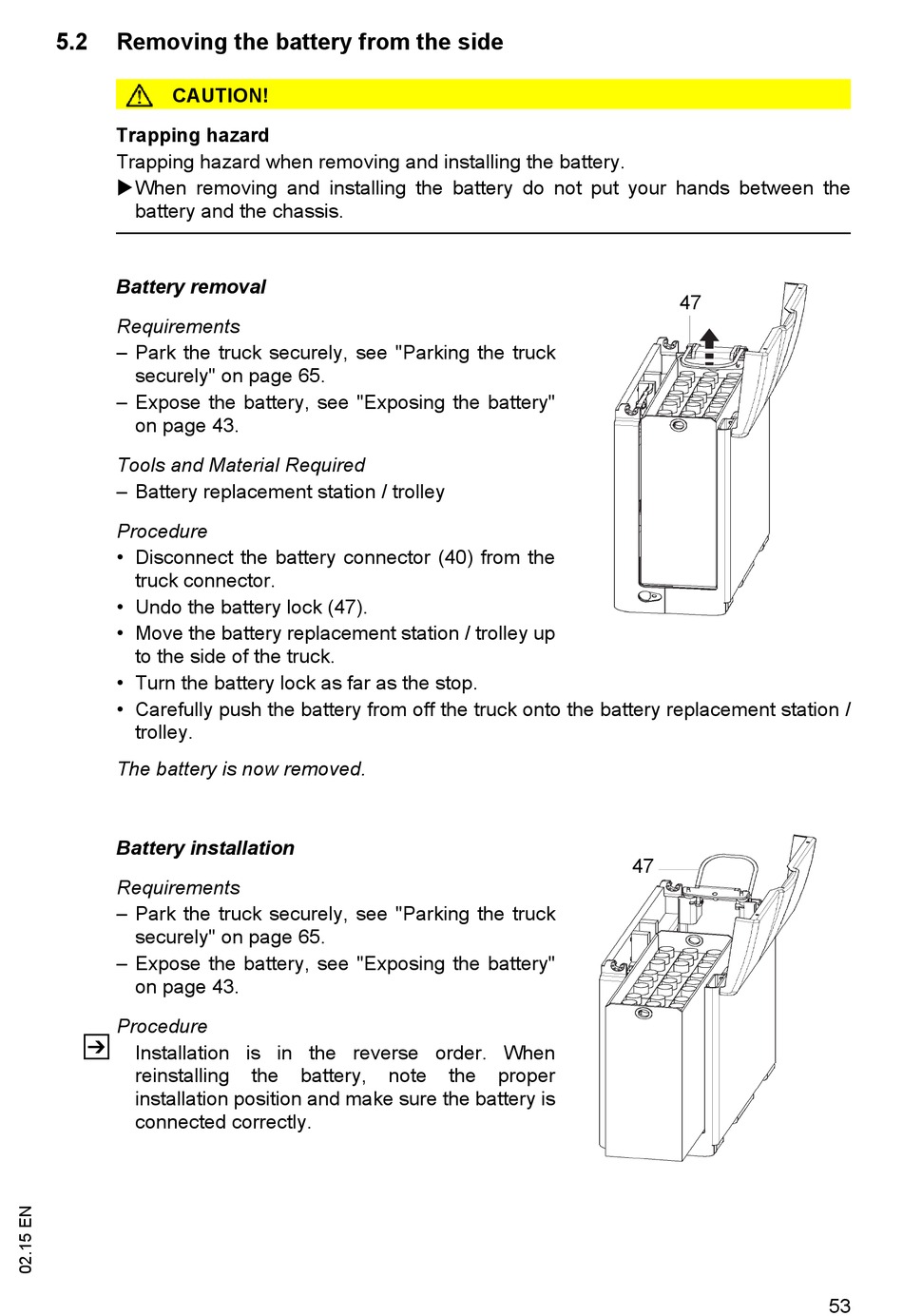

Removing the battery from the side

CAUTION!
Trapping hazard
Trapping hazard when removing and installing the battery.
When removing and installing the battery do not put your hands between the
battery and the chassis.
Battery removal
Requirements
– Park the truck securely, see "Parking the truck
securely" on page 65.
– Expose the battery, see "Exposing the battery"
on page 43.
Tools and Material Required
– Battery replacement station / trolley
Procedure
• Disconnect the battery connector (40) from the
truck connector.
• Undo the battery lock (47).
• Move the battery replacement station / trolley up
to the side of the truck.
• Turn the battery lock as far as the stop.
• Carefully push the battery from off the truck onto the battery replacement station /
trolley.
The battery is now removed.
Battery installation
Requirements
– Park the truck securely, see "Parking the truck
securely" on page 65.
– Expose the battery, see "Exposing the battery"
on page 43.
Procedure
Z
Installation is in the reverse order. When
reinstalling
installation position and make sure the battery is
connected correctly.
the battery, note the proper
