Max-Thrust Mini Viper Jet Assembly And Operating Manual page 7

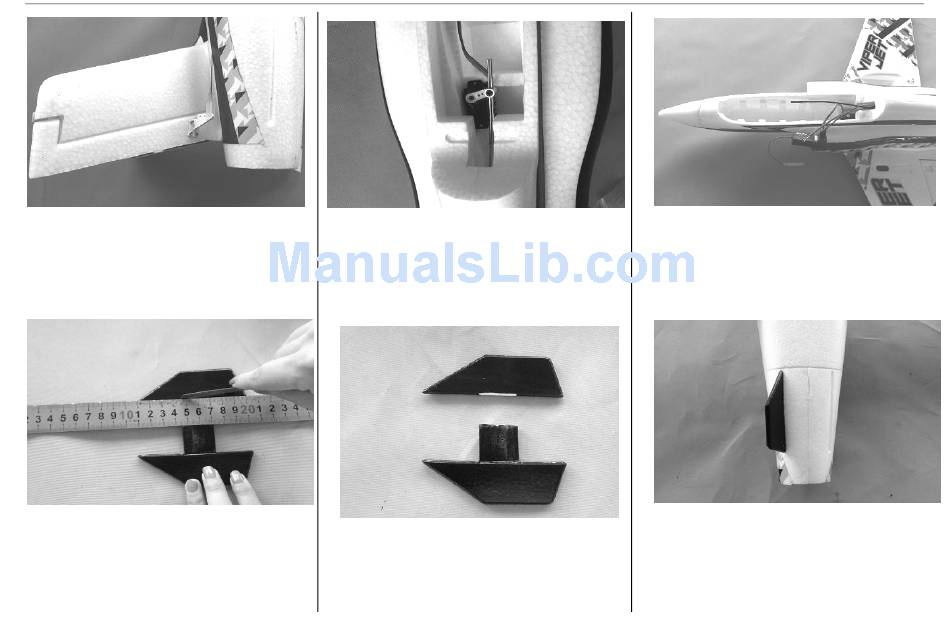

Fig. 20 - The photo shows the finished view.
Fig. 23 – Locate the Ventral Fins.
Cut apart for assembly as shown.
20
Fig. 21 - Connect the elevator push rods to
the arm of servo.
23
Fig. 24 - Ventral fins shown after being
separated
21
Fig. 22 - Connect the electronic speed
controller and servos to the receiver.
Refer to your radio instructions for the
correct channel assignments and polarities. .
24
Fig. 25 - Glue them into the slots (glue not
included).
22
25
