Max-Thrust Mini Viper Jet Assembly And Operating Manual page 5

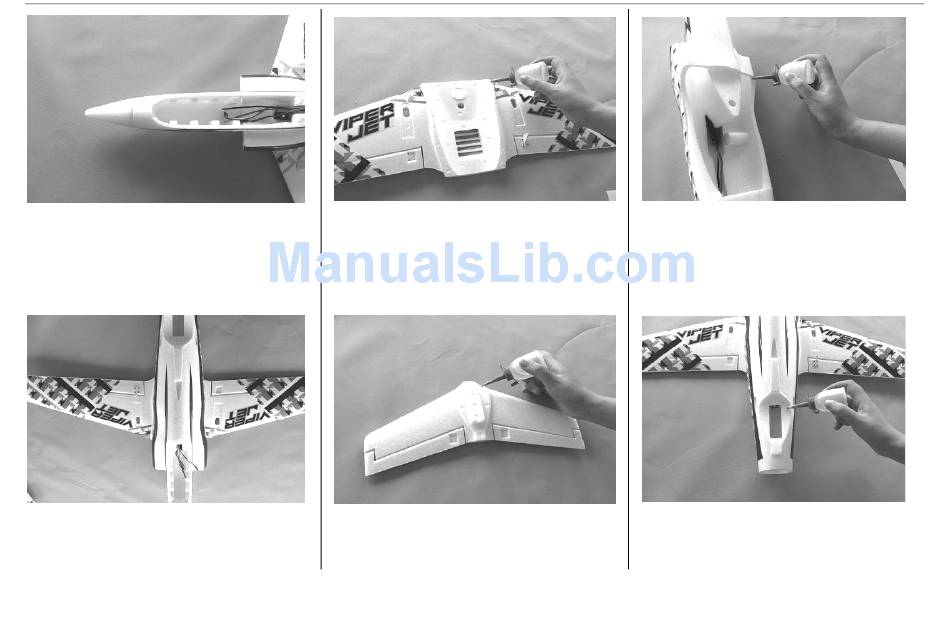

Fig.8 - The nose cone is held in place by
magnets and can be lifted off.
Fig. 11 – Thread the aileron servo lead up
through the fuselage and into the receiver bay
before gluing the wings in place.
8
Fig. 9 - Apply glue to the mounting area of the
main wing.
11
Fig. 12 - Apply glue to the underside of the
horizontal stabilizer.
9
Fig. 10 - Apply glue to the saddle.
12
Fig.13 - Apply glue to the tail end of the
fuselage of where the horizontal stabilizer sits.
10
13
