Max-Thrust Mini Viper Jet Assembly And Operating Manual page 6

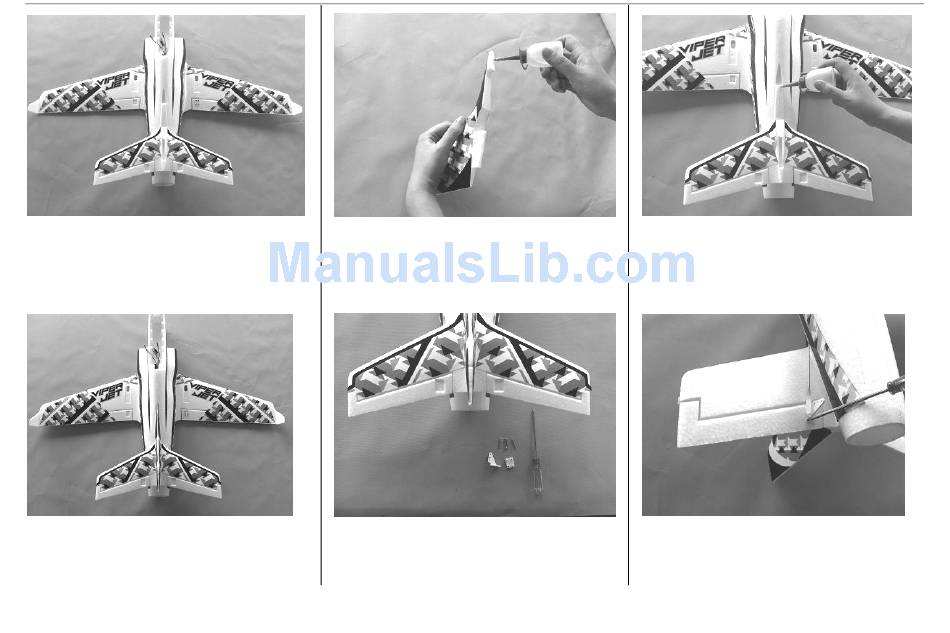

Fig. 14 - The photo shows the finished view
after gluing the horizontal stabilizers in place.
Fig. 17 - The photo shows the finished view
after gluing the vertical stabilizers in place.
14
Fig. 15 - Apply glue to the base of the Vertical
Stabilizer.
17
Fig. 18 - Install the elevator control horn,
ensuring the screws are screwed through the
control surface into the support plate.
15
Fig. 16 - Apply glue to the slot of where the
vertical stabilizer sits.
18
Fig. 19 - Connect the push rods to the elevator
servo arm and then to the elevator control horn
16
19
