Max-Thrust Mini Viper Jet Assembly And Operating Manual page 4

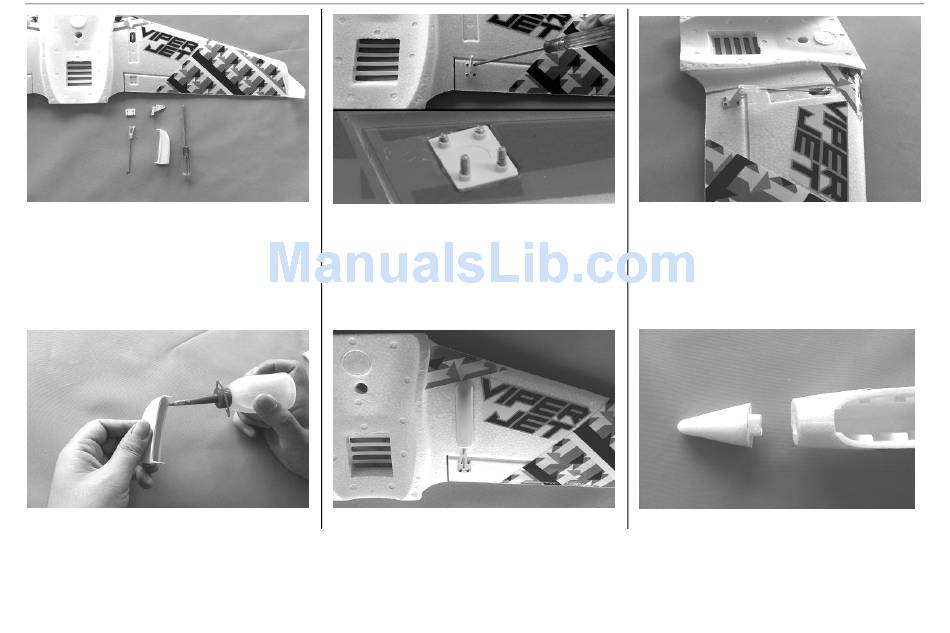

Fig. 2 - Locate the short push rod set.
Fig. 5 - Glue the servo fairing.
2
Fig. 3a - Install the aileron control horn,
ensuring the screws are screwed through the
control surface into the support plate - Fig. 3b
5
Fig. 6 - Install the Servo fairing.
3a
3b
Fig. 4 - Connect the push rod to the aileron
servo arm and control horn.
6
Fig. 7 - Locate the fuselage and nose cone.
4
7
