2. Installation
2.6 Connecting the UPS to the Comet EXtreme CLA module

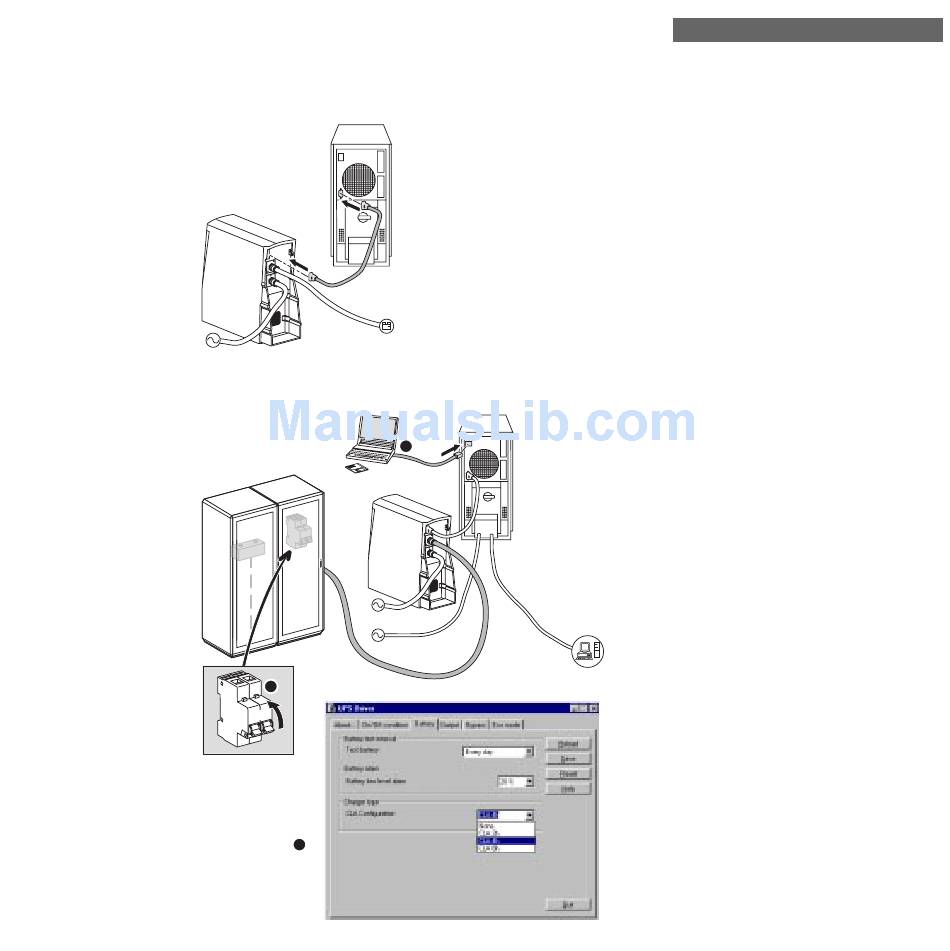

Use the connection cable supplied with the
module.
+
2.7 Setting the UPS
Before connecting the loads to be protected
and starting the system, the UPS must be
2
reconfigured using the UPS Driver software
supplied on a diskette with the UPS.
1. Switch the battery circuit breaker to ON
position.
5 0 A
2. Connect a PC to the UPS using an RS232
5 A h
1 2 V -6
cable.
3. Run the UPS Driver software installed on
a diskette. Go to the "battery" menu and
select the battery backup time (2, 4 or 8
hours) corresponding to the new
configuration.
1
Once the backup time has been set, click to
ON
save the settings and exit UPS Driver. This
2 5 A
procedure is necessary for fast recharge of
the batteries by the Comet EXtreme CLA.
The installation is now ready and you can
connect the equipment to be protected.
3
- Page 7
