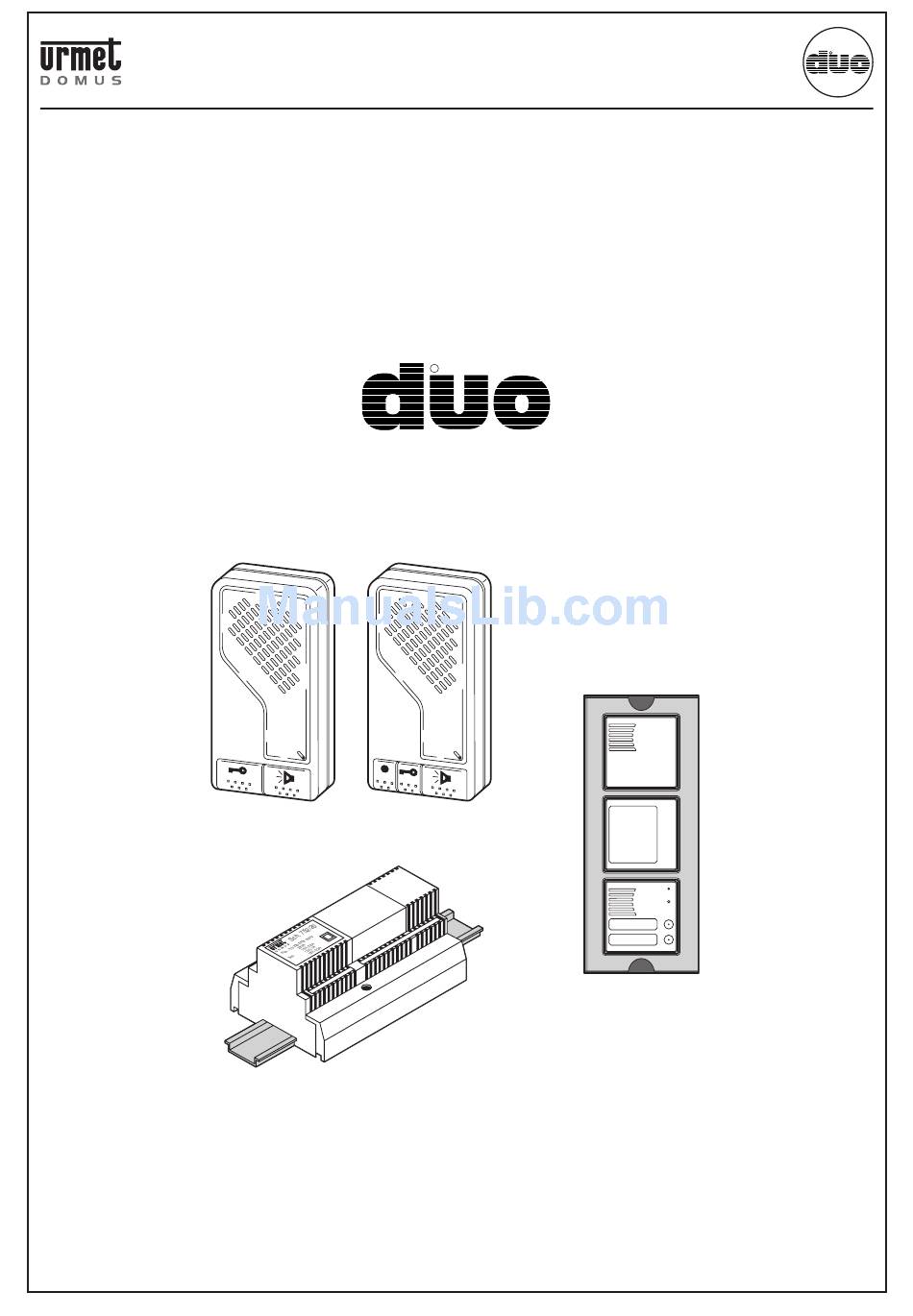

- Page 1 SECTION 7 (REV.A) FREE-HANDS SYSTEMS WITH SINTHESI PANEL Download from: www.urmetdomus.com Technical Manuals area sec.7 −−−− DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual...
-
Page 2: Table Of Contents
EXAMPLES OF MODULAR CONSTRUCTIONS WITH VARIOUS CAPACITIES .................7 ..... DIAGRAMS SYSTEMS CONNECTION OF DUO INDOOR SETS TO A DUPLEX OUTDOOR STATION.......... SC101-0209C ....7 ..... CONNECTION OF DUO INDOOR SETS TO TWO DUPLEX OUTDOOR STATION........SC101-0210E ....7 ..... EXAMPLES OF CONNECTION OF THE DIFFERENT PARTS (INDOOR SET, OUTDOOR SET, POWER SUPPLY) OF THE NEW SYSTEM DUPLEX MOD. -
Page 3: Free-Hands Systems Duo With Sinthesi Panel
FREE-HANDS DOOR UNIT The secrecy of conversation function requires a wire more than the The DUO free-hands system door unit consists of two separate normal system in the cable conduit. The phone yield of the new system Sinthesi panel range modules only. -
Page 4: Description Of Terminals
FREE-HANDS SYSTEMS DUO WITH SINTHESI PANEL SINTHESI PANEL SINTHESI PANEL 1145/75 1145/75 The module consists of anodised aluminium profi le modular elements which can be fi tted in specifi c frames. The innovative feature of this system consists in the possibility of vertical or horizontal installation. - Page 5 FREE-HANDS SYSTEMS DUO WITH SINTHESI PANEL SINTHESI PANEL 1145/75 1145/72 MODULE POSITIONING EXAMPLES Vertical Horizontal installation installation 1145/75 1145/50 1145/75 1145/50 1145/72 1145/72 1145/72 1145/75 1145/50 Arrange an additional Sinthesi module (e.g. house number, blank module, etc.) between the speaker module (1145/75) and the microphone (1145/70, 1145/71,1145/72).
-
Page 6: Duo Indoor Set
Duo indoor set is foreseen for two way of installation: • Wall surface mounting. • Wall embedding. All connections to the line are made after Duo base has been fi xed to the wall, thus simplifying all operations. Duo is foreseen in the version: •... -
Page 7: Power Supply Ref. 752/20
FREE-HANDS SYSTEMS DUO WITH SINTHESI PANEL POWER SUPPLY Ref. 752/20 The operations to be performed are the following: POWER SUPPLY Ref. 752/20 • Embed box A. Plaster should be leveled or stick out the edge of the box 1cm max. -
Page 8: Additional Electronic Buzzer Ref. 9854/52
FREE-HANDS SYSTEMS DUO WITH SINTHESI PANEL ADDITIONAL ELECTRONIC BUZZER Ref. 9854/52 - CALL REPEATER RELAY Ref. 788/21 CONNECTION MISTAKES AND MOST COMMON FAILURES ADDITIONAL ELECTRONIC BUZZER CONNECTION MISTAKES AND MOST COMMON Ref. 9854/52 FAILURES • Operation failure from indoor set to outdoor station The device Ref. - Page 9 FREE-HANDS SYSTEMS DUO WITH SINTHESI PANEL DIMENSIONS FLUSH-MOUNTED VERSION 45 mm 118 mm 244 mm 370 mm 125 mm 250 mm 375 mm Note: H1= 204, 294, 384 indicates fl ush mounting height and H2= 213, 303, 393 indicates to total height relative to 2, 3 and 4 module...
- Page 10 FREE-HANDS SYSTEMS DUO WITH SINTHESI PANEL EXAMPLES OF MODULAR CONSTRUCTIONS WITH VARIOUS CAPACITIES −−−− sec.7 DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual...
- Page 11 FREE-HANDS SYSTEMS DUO WITH SINTHESI PANEL EXAMPLES OF MODULAR CONSTRUCTIONS WITH VARIOUS CAPACITIES EXAMPLES OF VERTICAL CONFIGURATIONS sec.7 −−−− DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual...
- Page 12 FREE-HANDS SYSTEMS DUO WITH SINTHESI PANEL EXAMPLES OF MODULAR CONSTRUCTIONS WITH VARIOUS CAPACITIES EXAMPLES OF HORIZONTAL CONFIGURATIONS −−−− sec.7 DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual...
- Page 13 FREE-HANDS SYSTEMS DUO WITH SINTHESI PANEL EXAMPLES OF MODULAR CONSTRUCTIONS WITH VARIOUS CAPACITIES EXAMPLES OF MODULAR CONSTRUCTIONS FOR Mod. KOMBI PANELS RETROFIT BUTTONS NUMBER 7 8 9 10 1145/13 Button and repertory modules 1145/14 1 2 2 2 1145/70 COMMON...
- Page 14 CONNECTION OF DUO INDOOR SETS TO A DUPLEX OUTDOOR STATION FUNCTION 5+(n-2) Pushing one of the buttons on the push button panel, outside the building, the bitonal call sound is sent to the corresponding indoor set loudspeaker. When on the called indoor set the conversation button is pressed, contact is made between inside and outside and conversation may start.
- Page 15 CONNECTION OF DUO INDOOR SETS TO A DUPLEX OUTDOOR STATION SC101-0209C Main ˜ Power supply G/T2 Name tag lighting twisted coupled wires Lock Release ELECTRIC LOCK Light bulb transformer Main ˜ Name tag lighting (VX.014) sec.7 −−−− DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual...
- Page 16 CONNECTION OF DUO INDOOR SETS TO TWO DUPLEX OUTDOOR STATION FUNCTION 5+(n-2) This type of installation allows connection of a series of indoor sets to two push button panels in a building with two entrances. With the proposed solution, by simply pushing a button on one of the two panels, the called indoor set, pushing the conversation button, is automatically connected with the calling panel.
- Page 17 CONNECTION OF DUO INDOOR SETS TO TWO DUPLEX OUTDOOR STATION SC101-0210D Main ˜ Power supply (C4.007) (C4.007) TO THE TO THE FOLLOWING Name tag Name tag FOLLOWING MODULE lighting twisted lighting MODULE (C4.009) coupled wires G/T2 G/T2 RELAY To bulb...
- Page 18 If in the existing system the The Sinthesi free-hands panel and door unit can be used to replace old buzzer RZ has been used for the fl oor calls, since in the Duo indoor Kombi models or 4340/27 panels with door unit.
- Page 19 EXAMPLES OF CONNECTION OF THE DIFFERENT PARTS (INDOOR SET, OUTDOOR SET, POWER SUPPLY) OF THE NEW SYSTEM DUPLEX Mod. 752 WHEN USED AS SPARE PARTS IN THE PREVIOUS SUPERJOLLY TWO-CHANNEL SYSTEMS 2ND SERIES SC101-0211B sec.7 −−−− DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual...
- Page 20 FREE-HANDS SYSTEMS DUO WITH SINTHESI PANEL DIAGRAM NOTES DIAGRAM NOTES C4.001 - MINIMUM WIRE CROSS-SECTION AREAS Distance Voice and sq.mm call circuit Door opening sq.mm circuit - The indicated distance is between door unit and most distant door phone. - Lay the wires at a suitable distance from power lines (as far away as possible).
