TUNING BY CHANNEL OR FREQUENCY
Switches tuning mode between channel and frequency. In channel mode the
tuning frequency is defined by the active channels table (CCIR, OIRT, ...). See
channel-frequency tables in Appendix A.
Decimal point key to enter numeric data.
[31]
MANUAL FREQUENCY SELECTION / SHIFT
Enables the desired frequency to be directly tuned using the numeric keyboard.
Also acts as a SHIFT key for moving across different fields on some screens.
[35]
Connector RS-232C
Enables the remote control of the PROLINK-4C from a personal computer, as
well as data dumping to a printer.
[36]
RESET button
Enables the user to restart the instrument if there is any irregularity in its
functioning. If it is necessary to reset the instrument, press the reset button with
the instrument turned off.
Page 24

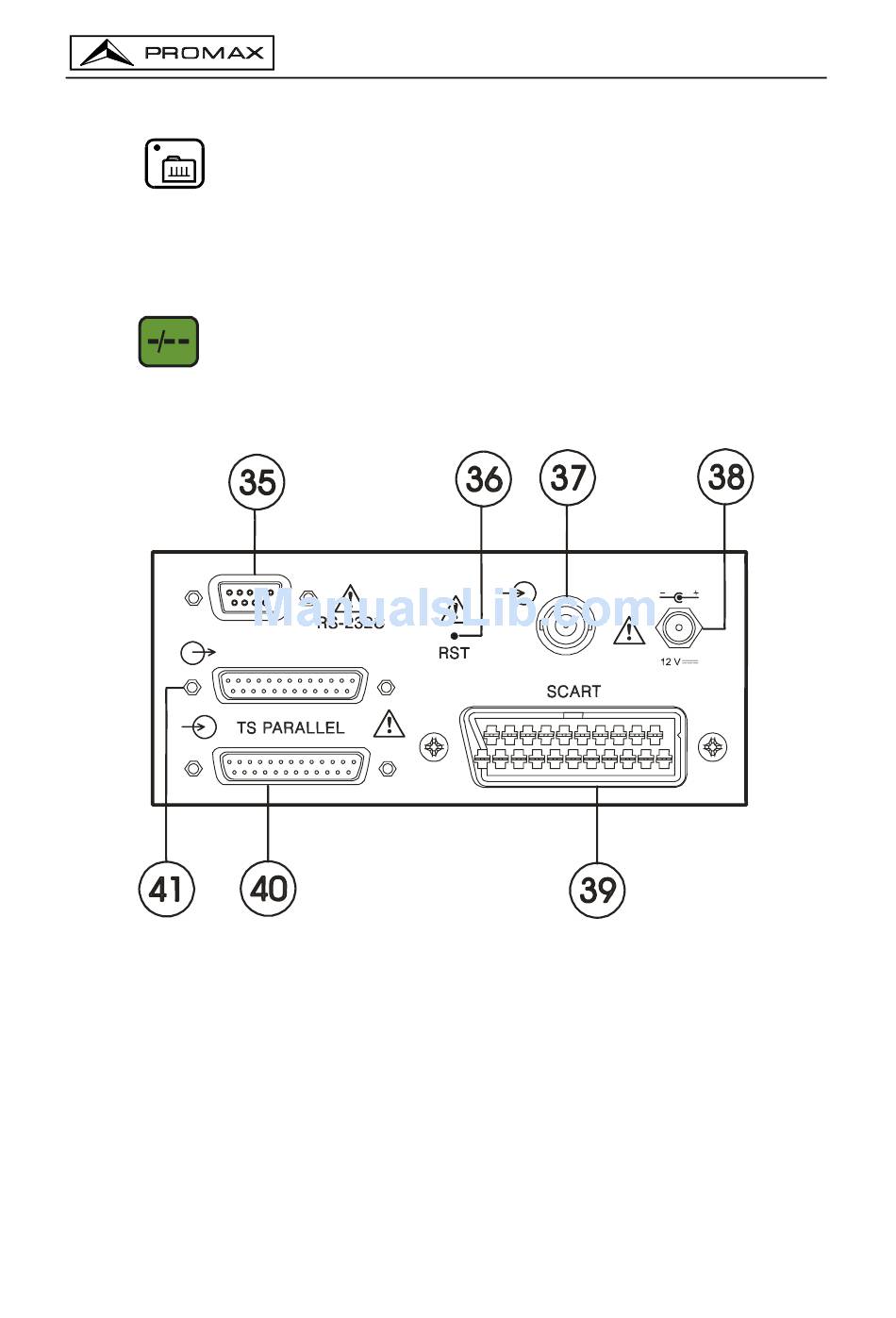

Figure 3.- Side panel connections.
USER'S MANUAL. PROLINK-4C
