Technical Manual
SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

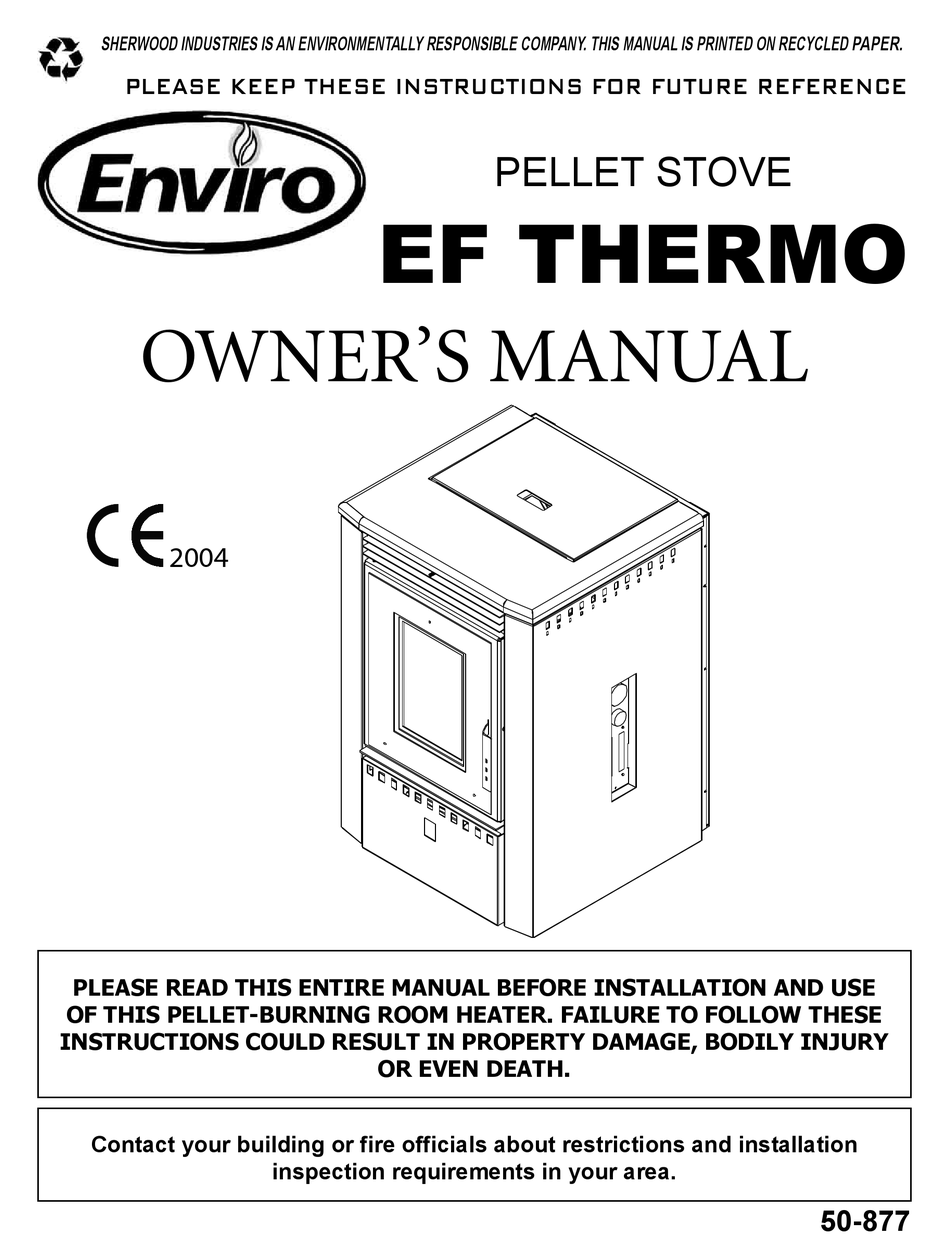

PELLET STOVE
EF THERMO
OWNER'S MANUAL
����
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE
OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY
OR EVEN DEATH.
Contact your building or fire officials about restrictions and installation
inspection requirements in your area.
50-877
Advertisement
Table of Contents
Related Manuals for Enviro EF THERMO
Summary of Contents for Enviro EF THERMO
- Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE PELLET STOVE EF THERMO OWNER’S MANUAL ���� PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
-
Page 2: Table Of Contents
Table of Contents Introduction..................3 Important Safety Data...............3 Water Specifications..............4 Pellet Quality................4 Warnings and Recommendations..........5 Water Safety Features of Your Pellet Stove.........5 Rating Label Location..............6 Appliance Dimensions...............6 Operating Instructions................7 Control Board Functions............7 Turning Pellet Stove On.............7 Turning Off Your Pellet Stove.............8 Slider/Damper Operation............8 Routine Cleaning and Maintenance.............9 Warranty...................12... -
Page 3: Introduction
If this power cord should become damaged, a replacement power cord must be purchased from the manufacturer or a qualified ENVIRO dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or sharp edges. This unit’s maximum power requirement is 680 Watts. -
Page 4: Water Specifications
Introduction ATER PECIFICATIONS Necessary draught 34.8 Pa (0.348 mbar) Water content 17.3 liters Exhaust gas temperature at nominal heat output 230°C Exhaust gas temperature at minimum heat output 120°C Exhaust mass flow at nominal heat output 7.5 g/s Exhaust mass flow at minimum heat output 8.0 g/s Flue pipe diameter 80 mm... -
Page 5: Warnings And Recommendations
Introduction ARNINGS AND ECOMMENDATIONS A. Do not abuse the glass by striking or slamming the door shut. B. Do not attempt to operate the stove with broken glass. C. Do not attempt to open the door and clean the glass while the unit is in operation. To clean the glass, use a soft cotton cloth and mild window cleaner, gas or wood stove glass cleaner, or take a damp paper towel and dip into the fly ash. -
Page 6: Rating Label Location
Introduction ATING ABEL OCATION The rating label is located on the hopper lid. PPLIANCE IMENSIONS UNIT DIMENSIONS HEIGHT: 37 3⁄8” (968.9 mm) WIDTH: 25 1⁄4” (641.0 mm) DEPTH: 25 3⁄8” (623.7 mm) HEARTH PAD: WIDTH: 25 1⁄4 (641.0 mm) DEPTH: 31 3⁄8” (776.3 mm) [6”... -
Page 7: Operating Instructions
Operating Instructions ONTROL OARD UNCTIONS 1. WATER TEMPERATURE DIAL: Read in degrees Celsius 2. AUGER TRIM 3. CONVECTION BLOWER CONTROL � 4. AUGER PULSE LIGHT: Light flashes in conjunction with the auger. ... -
Page 8: Turning Off Your Pellet Stove
Operating Instructions 5. The convection blower (room air blower) will be on, the speed of this blower is controlled by the setting set on the heat output indicator. The convection blower can be turned OFF by depressing the convection blower control button (2). When the unit reaches 160° F (71°C), the convection blower will come ON, cooling the unit. -
Page 9: Routine Cleaning And Maintenance
Routine Cleaning and Maintenance The following list of components should be inspected and maintained routinely to ensure that the appliance is operating at its’ optimum and giving you excellent heat value: 2-3 DAYS/WEEKLY 1⁄2 SEASON or 1 TON OF FUEL TOOLS REQUIRED TO CLEAN UNIT: Ash Pan and Door Gaskets Exhaust Vent... - Page 10 Routine Cleaning and Maintenance ASH DRAWER: Remove ash drawer (see Figure 8). Dump the ashes into a metal container stored away from combustibles. Monitor the ash level every week. Remember that different pellet fuels will have different ash contents. Ash content is a good indication of fuel efficiency and quality.
- Page 11 Routine Cleaning and Maintenance HEAT EXCHANGER AND INTERNAL EXHAUST TUBES: ONLY TO BE CLEANED WHEN THE UNIT IS COLD. Clean away any fly ash that may have collected in and on the tubes. As different types of pellets produce different amounts of ash, cleaning of the tubes should be done on a regular basis to enable the unit to run efficiently.
-
Page 12: Warranty
Warranty Sherwood Industries Ltd. gives a five-year limited warranty on all steel manufactured parts. A one-year warranty is provided on all electrical components. The above limited warranties are extended only to the original purchaser. There is no warranty on the following parts: ●... -
Page 13: Installation Data Sheet
Installation Data Sheet The following information must be recorded by the installer for warranty purposes and future reference. NAME OF OWNER: NAME OF DEALER: _________________________________________ _________________________________________ ADDRESS: ADDRESS: _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ PHONE:___________________________________ MODEL:___________________________________ NAME OF INSTALLER: SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________...
